Motor grader GR180
Inquire NowDescription

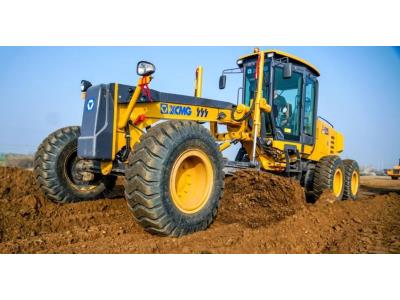

The Motor Grader GR180 is an essential piece of construction machinery designed for various earth-moving tasks such as ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal. Ideal for large areas like highways, airports, and farmlands, this grader is crucial for national defense construction, mine operations, urban and rural road development, and water conservancy projects. It features a robust Dongfeng Cummins Engine paired with ZF Technology Gearbox and XCMG Drive Axle, ensuring a reliable and efficient drive system.
Key advantages of the GR180 include:
- Reliable Drive System: The power matching of the drive system is optimized for performance and reliability.
- Double-Circuit Hydraulic Brake System: Provides enhanced stability and reliability during operation.
- Steering System: Incorporates load sensing, supported by international hydraulic components for utmost stability.
- Enhanced Work Devices: Specially designed by XCMG for improved performance.
Specifications
| Item | GR180 |
|---|---|
| Engine Model | 6CTA8.3-C190-Ⅱ |
| Rated Power/Speed | 142kW/2200rpm |
| Overall Dimension (Standard) | 8900x2625x3420 mm |
| Total Weight (Standard) | 15400 kg |
| Tire Specification | 17.5-25 |
| Ground Clearance (Front Axle) | 430 mm |
| Tread | 2156 mm |
| Space of Front and Rear Axles | 6219 mm |
| Space of Middle and Rear Wheels | 1538 mm |
| Forward Velocity | 5, 8, 11, 19, 23, 38 km/h |
| Reverse Speed | 5, 11, 23 km/h |
| Tractive Effort (f=0.75) | ≥79 kN |
| Maximum Gradeability | ≥25% |
| Tire Inflation Pressure | 260 kPa |
| Working System Pressure | 18 MPa |
| Transmission Pressure | 1.3—1.8 MPa |
| Coolant Capacity | 50 L |
| Fuel Tank Capacity | 280 L |
| Engine Oil Capacity | 24 L |
| Transmission Oil Capacity | 38 L |
| Balancing Box Capacity | 46 L |
| Drive Axle Capacity | 28 L |
