Motor of Embedded Steaming and Baking machine
Inquire Now
Run Steady
Competitve
Long Life
Low Noise

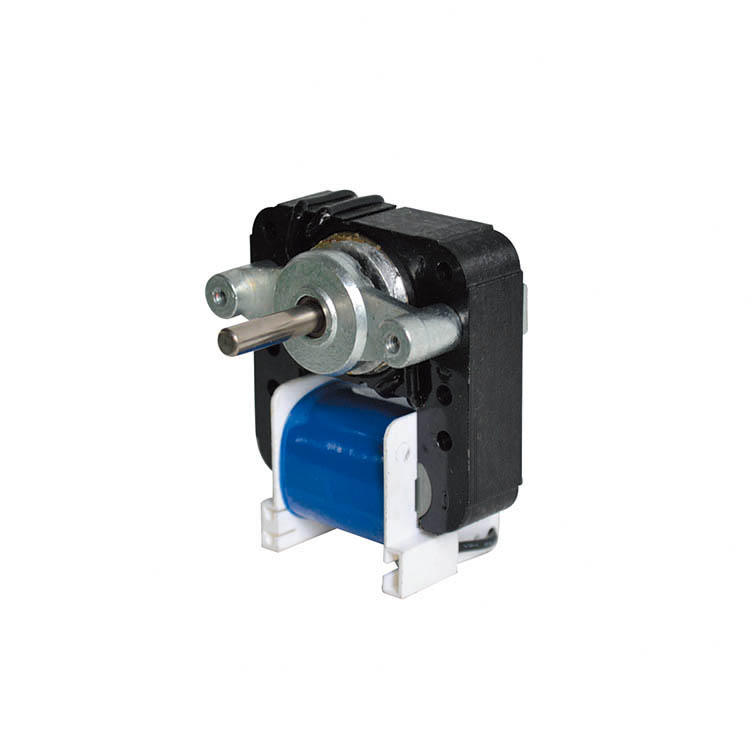

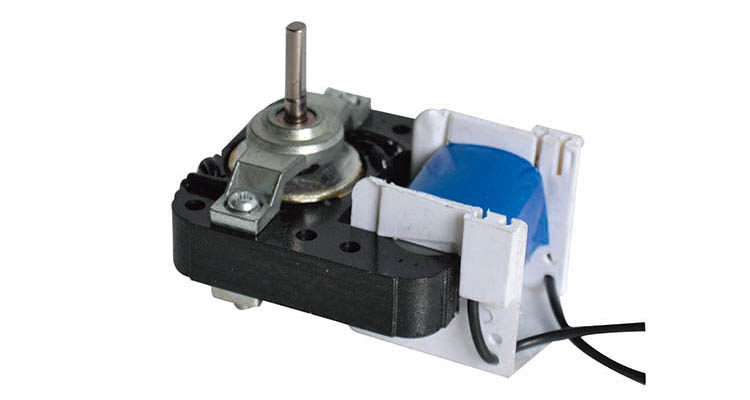

Summary of C-Frame Shaded Pole Motor
C-Frame motor is shaded pole motor with single phase, 2 shaded pole and running at rated voltage of 220-240 V, 50/60 Hz, or 110-120 V, 60 Hz. They are widely used in heater, oven, cooler, exhaust fan motor, ventilation systems of household and industrial field etc household appliance.
All material conform to RoHS.
The input power is from 8 W – 60 W, which is relative to the stack thickness and coil parameters.
The insulation class of motors is B, F and H
Some motor are impedance protection and the some motor are thermal fuse protected.
The applicable ambient temperature if from -10°C – 40°C.
Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearing.
The average service life of motors is over 10000 hours.
Before operating the motor, make sure the earth wire of the motor connected with external grounding device.
|
Products Name |
C-Frame Motor |
||
|
Model |
YJF6120 |
||
|
Voltage |
110 -120 V 60 Hz or 220 -240 V 50 Hz |
||
|
Insulation Class |
B , F , or H |
||
|
Mounting Size |
M4 Screws, distance of hole is 48mm |
||
|
Shaft |
Dia 5 or 6 mm, Length on your request |
||
|
Power |
10-60 w, designed on your request |
||
|
Speed |
Max 2700 rpm, designed on your request |
||
|
Wire Material |
Copper |
||
Packing & Delivery
Packing Details : Double corrugated paper box, inner plastic foam box, 60pcs/carton
Delivery Details : 60 days
Our Company
Component Workshop Winding Workshop
Assemble workshop Warehouse
Our Service
Rapidly feedback
We will feedback to you within 24 hours
OEM / ODM
OEM/ODM are available
Free Samples
We can supply 3 pcs free samples for checking and test.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 60 days if the goods are in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
