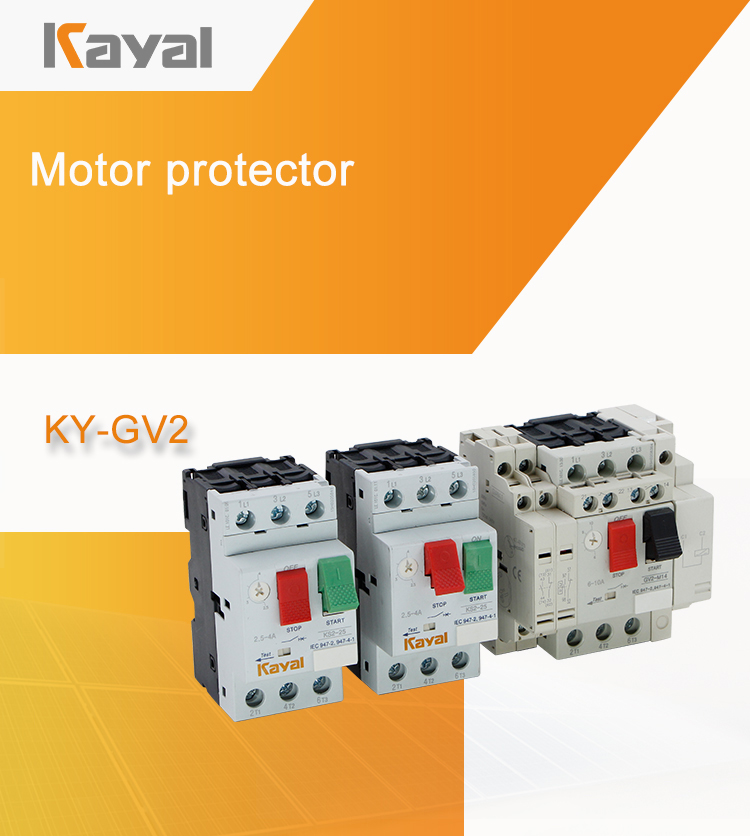

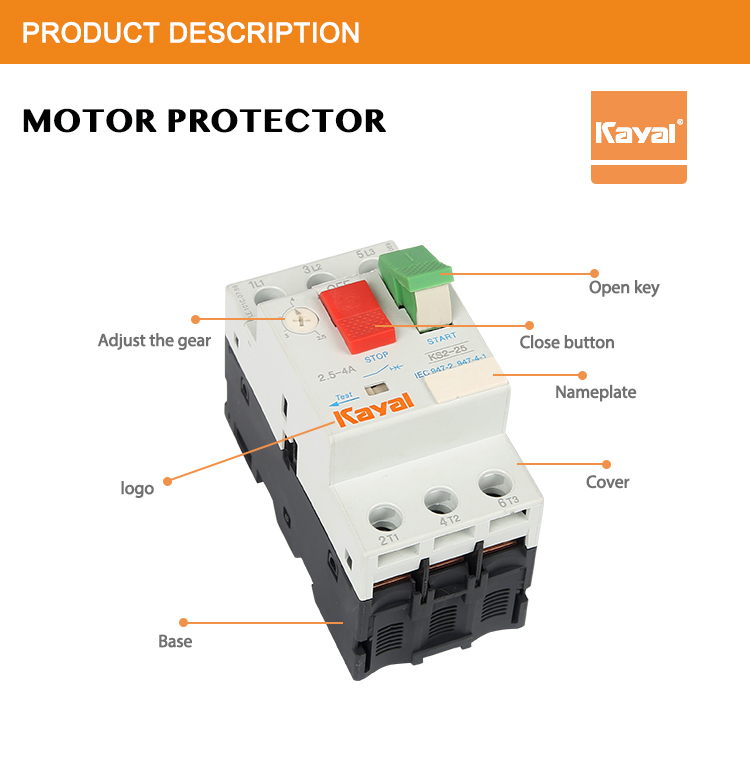

Motor Protection Circuit Breaker




APPLICATION
GV series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor in AC 50/60HZ,up to 660V,0.1-80A power circuit,as a full voltage starter to start and cut off the motor,under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
SPECIFICATIONS

Type

Rated standard power of 3-phase motors 50/60HZ in category AC-3

Setting range(A)

220V

380V

415V

440V

500V

660V

KW

KW

KW

KW

KW

KW

GV2-M01

—

—

—

—

—

—

0.1-0.16

GV2-M02

—

—

—

—

—

—

0.16-0.25

GV2-M03

—

—

—

—

—

—

0.25-0.4

GV2-M04

—

—

—

—

—

0.37

0.4-0.63

GV2-M05

—

—

—

0.37

0.37

0.55

0.63-1.0

GV2-M06

—

0.37

—

0.55

0.75

1.1

1.0-1.6

GV2-M07

0.37

0.75

0.75

1.1

1.1

1.5

1.6-2.5

GV2-M08

0.75

1.5

1.5

1.5

2.2

3

2.5-4.0

GV2-M10

1.1

2.2

2.2

3

3.7

4

4-6.3

GV2-M14

2.2

4

4

4

5.5

7.5

6.0-10.0

GV2-M16

3

5.5

5.5

7.5

7.5

9

9.0-14.0

GV2-M20

4

7.5

9

9

9

11

13.0-18.0

GV2-M21

5.5

11

11

11

11

15

17.0-23.0
