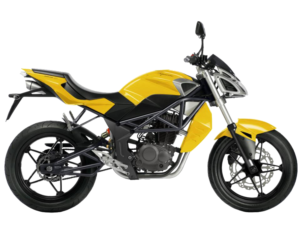

OEM ODM Motorcycle Megelli 125R
Description
The Megelli 125R is a powerful and stylish motorcycle designed for both beginners and experienced riders. Engineered with a robust 4-stroke, air-cooled single-cylinder engine, this bike boasts an impressive displacement of 124cc and a compression ratio of 9.2:1. With a maximum power output of 10 hp at 9500 rpm and a torque of 8.8 N.m. at 8000 rpm, the Megelli 125R promises exhilarating rides on both urban roads and open highways. Its sleek design is complemented by a sophisticated trellis frame that ensures stability and agility, making it a perfect choice for those seeking a blend of performance and aesthetics.
Specifications
| Attribute | Details |
|---|---|
| Engine Type | 4 Strokes, Air-Cooled |
| Cylinder | Single |
| Bore x Stroke (mm) | 56.5 x 49.5 |
| Displacement (cc) | 124 |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC |
| Max Power (hp/rpm) | 10/9500 |
| Max Torque (N.m./rpm) | 8.8/8000 |
| Lubrication System | Forced and Wet Sump |
| Fuel Grade | Unleaded |
| Clutch | Wet Type and Multi-Plates |
| Transmission | 5 Speed Gear Change |
| Gear Shift Pattern | 1-N-2-3-4-5 |
| Ignition System | C.D.I |
| Starter System | Electric Start |
| Main Frame | 13A Multi Twin Spar |
| Trellis Configuration | Yes |
| Rear Swing-Arm | T6 Aluminum Trellis with Forged Dropout |
| Out-Riggers | T6 Aluminum Trellis Forged |
| Twin Plate Bearing Carrier | Yes |
| Yokes | T6 Aluminum Forged |
| Front Suspension | Conventional |
| Rear Shock | Fast Ace |
| Seat Height (mm) | 800 |
| Wheel Base (mm) | 1350 |
| Front Rim | Aluminum 2.75×17 |
| Rear Rim | Aluminum 3.50×17 |
| Front Tire | CST 100/70-17 |
| Rear Tire | CST 130/70-17 |
| Final Drive | Cushioned |
| Net Weight (kg) | 115 |
| Speedometer | Koso Digital and Mechanical |
| EEC Homologation | None |
| Dimensions (L×W×H) | 2100mm x 640mm x 1150mm |
| Loading Quantity | 20’FT: 18 sets, 40’HQ: 36 sets |
