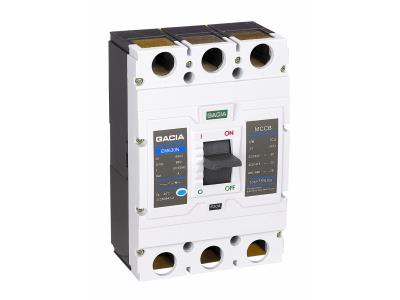

Moulded Case Circuit Breaker, EM630N/EM630S/EM630H
Inquire NowDescription
The Moulded Case Circuit Breaker, available in EM630N, EM630S, and EM630H variants, is designed for advanced electrical protection and control. Complying with IEC/EN 60947-2 standards, this robust circuit breaker offers exceptional reliability and safety for various applications. With options for 3 and 4-pole configurations, it is versatile enough to meet diverse electrical system requirements.
Featuring a rated insulated voltage of 690V (AC), this breaker can handle rated currents of up to 630A, making it suitable for high-demand environments. Its rated impulse withstand voltage of 8000V ensures superior protection against voltage surges, while the rated working voltage of 400/415V AC provides reliable operation in typical industrial settings. The breaking types available include N, S, and H, catering to different operational needs.
Certified with CE and KEMA, the EM630 series stands as a trusted choice for enhancing electrical safety and performance.
Specifications
| Attribute | Details |
|---|---|
| Model Variants | EM630N, EM630S, EM630H |
| Standards | IEC/EN 60947-2 |
| Number of Poles | 3 and 4-Pole Versions |
| Rated Insulated Voltage | 690 AC V |
| Rated Current | Up to 630A |
| Rated Impulse Withstand Voltage | 8000V |
| Rated Working Voltage | 400/415 AC V |
| Breaking Type | N, S, and H |
| Certification | CE, KEMA |
