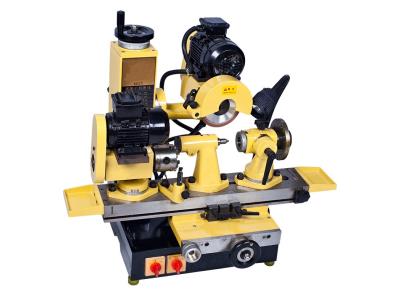

MR-6025 Hot Sale Universal Tool grinder Cutter Blade Knife Grinder
Inquire NowDescription
The MR-6025 Hot Sale Universal Tool Grinder is a versatile and powerful machine designed for precision sharpening of various cutting tools. With exceptional capabilities, it can sharpen a wide range of tools including end mills, lathe tools, gear cutting tools, and more. The innovative design features a high-stability bed platform and a smooth operation thanks to its dovetail guide rail or high precision straight line rolling guide rails.
Equipped with a motor that can rotate 360° horizontally, the MR-6025 allows for rapid adjustments in the grinding wheel’s rotation, enhancing efficiency when sharpening different materials. This functionality not only improves safety but also minimizes the downtime associated with replacing or dressing the grinding wheel.
Whether you’re a professional machinist or a DIY enthusiast, this tool grinder is engineered for dexterity and precision, making it an indispensable addition to your workshop.
Specifications
| Feature | Specification |
|---|---|
| Model | MR-6025 |
| Max. Grinding Diameter | 250mm |
| Worktable Diameter | 350mm |
| Workable Traveling Schedule | 150mm |
| Elevating Distance of Wheel Head | 150mm |
| Rotating Angle of Wheel Head | 360° |
| Grinding Head Speed | 5000RPM |
| Motor Power and Voltage | 3/4HP, 380V |
| Overall Power | 1HP |
| Inner Bore of Grinding Work Piece | 10-50mm |
| Lateral Feeding Distance | 190mm |
| Workable Area | 130×550mm |
| Dimension | 850*700*750mm |
| Net Weight / Gross Weight | 215kg / 230kg |
Additional Information
Optional equipment includes:
- 50E – Spiral milling cutter ball end mill
- 50K – Drill bit, screw tap
- 50D – End milling cutter
- 50B – Table box
- 50J – Thimble
