MR-X6 hot selling end mill grinder sharpener drill and end mill sharpener machine
Inquire NowDescription

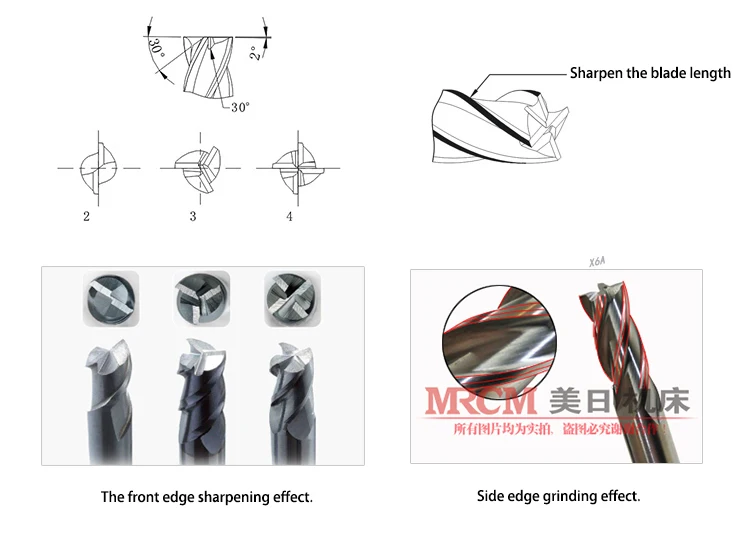

The MR-X6 hot selling end mill grinder is your go-to solution for precision sharpening of end mills, accommodating 2-flute, 3-flute, 4-flute, and even 6-flute end mills. Designed for ease of use, it requires no special skills, making it perfect for small and medium enterprises, family workshops, and personal repair tasks. This portable sharpener features a Taiwan diamond grinding wheel, enabling rapid and accurate grinding. With a robust design, it ensures longevity and can be directly equipped with an accurate angle for consistent results.
Standard with an SDC grinding wheel for carbide materials, the MR-X6 also offers an optional CBN grinding wheel for HSS materials, providing versatility for different machining needs.
Specifications
| Attribute | Details |
|---|---|
| Model | MR-X6 |
| Diameter Capacity | Φ4-Φ14mm |
| Power | 220V/250W |
| Speed | 4400rpm |
| Point Angle | 0°-5° |
| Dimension | 42cm x 25cm x 30cm |
| Weight | 23KG |
| Standard Equipment |
Face Grinding Wheel: SDC (for carbide) ×1 Side Grinding Wheel: SDC (for carbide) ×1 Six Collets: Φ4, Φ6, Φ8, Φ10, Φ12, Φ14 Two Collet Chucks: 2, 4 flutes ×1 piece; 3, 6 flutes ×1 piece |
| Optional Equipment |
Face Grinding Wheel: CBN (for HSS) Side Grinding Wheel: SDC (for carbide) ×1 |
Additional Information
Standard Accessories:
| Item | Details |
|---|---|
| Machine | MR-X6 |
| Grinding Wheel | Standard is SDC for carbide material ×1 set |
| Side Collets | 5 pcs (Φ4-Φ14mm) |
| Collet Chucks | 2 pieces |
| Inner Hexagon Spanner | 1 set |
