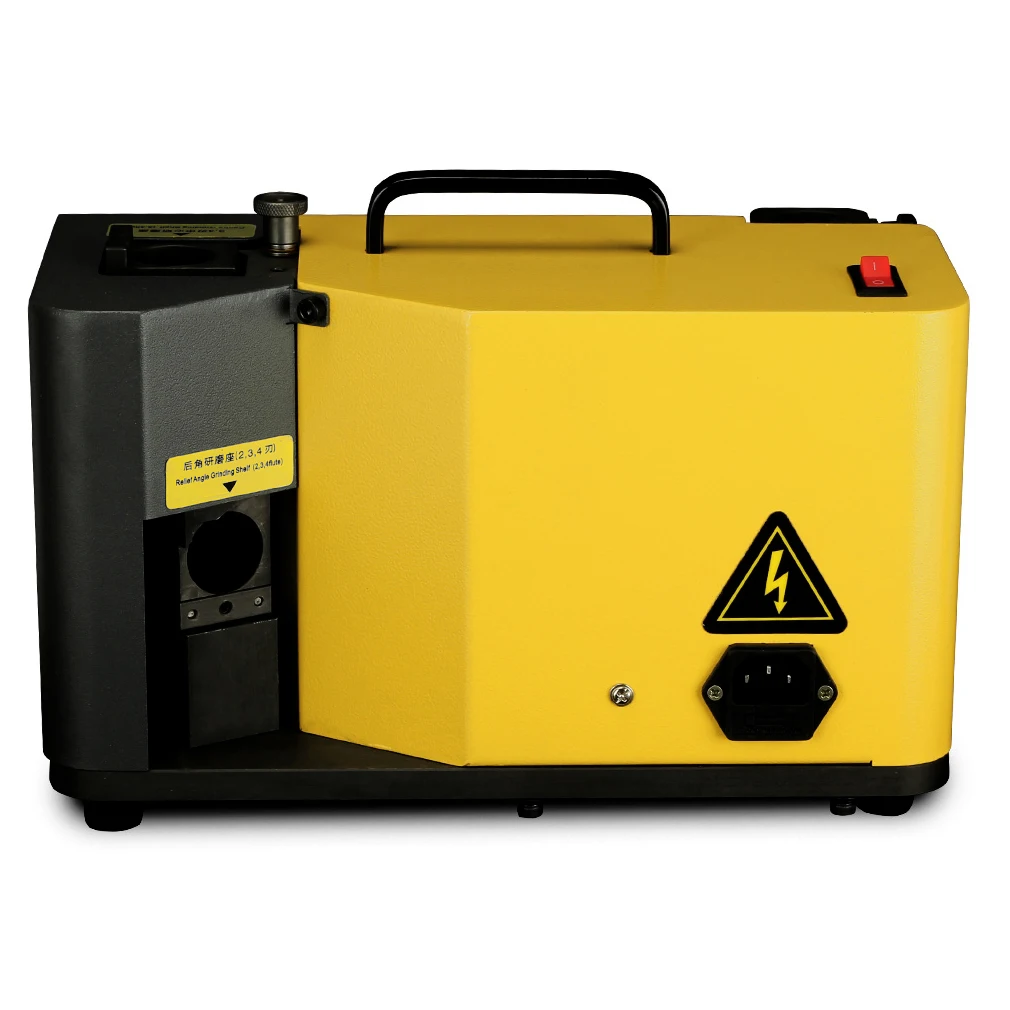

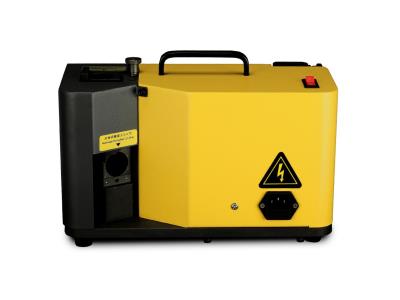

MRCM High Precision Portable End Mill Grinder MR-X1 With CE Certificate
Inquire NowDescription
The MRCM High Precision Portable End Mill Grinder MR-X1 is a must-have tool for any metalworking shop, designed for grinding 2-flute, 3-flute, and 4-flute end mills with precision and ease. This portable sharpener allows for rapid and accurate grinding without requiring advanced skills, making it accessible for users of all experience levels. Its innovative design incorporates a Taiwan diamond grinding wheel, enabling the completion of all grinding procedures with a single component. The machine is equipped with a direct angle adjustment feature, ensuring longevity and consistent performance.
Key Features:
- Portable and easy to operate
- Compatible with various end mill types
- High precision grinding
- Low maintenance with a long service life
- Standard SDC grinding wheel for carbide materials; optional CBN wheel for HSS
Specifications
| Model | MR-X1 |
|---|---|
| Diameter | Φ4-Φ14mm |
| Power | 220V/160W |
| Speed | 4400rpm |
| Point angle | 3° |
| Dimension | 35*25*25cm |
| Weight | 14KG |
| Standard Equipment |
Grinding wheel: SDC (for carbide) × 1 Six collets: Φ4, Φ6, Φ8, Φ10, Φ12, Φ14 Two collet chucks × 2 pieces |
| Optional Equipment | Grinding wheel: CBN (for HSS) |
Additional Information
For optimal use, adjust the scale according to the diameter of the end mill being sharpened. The operation steps are simple and clear, allowing for high precision and efficiency in grinding tasks. This grinder is ideal for small and medium enterprises, family workshops, and personal repair tasks.
