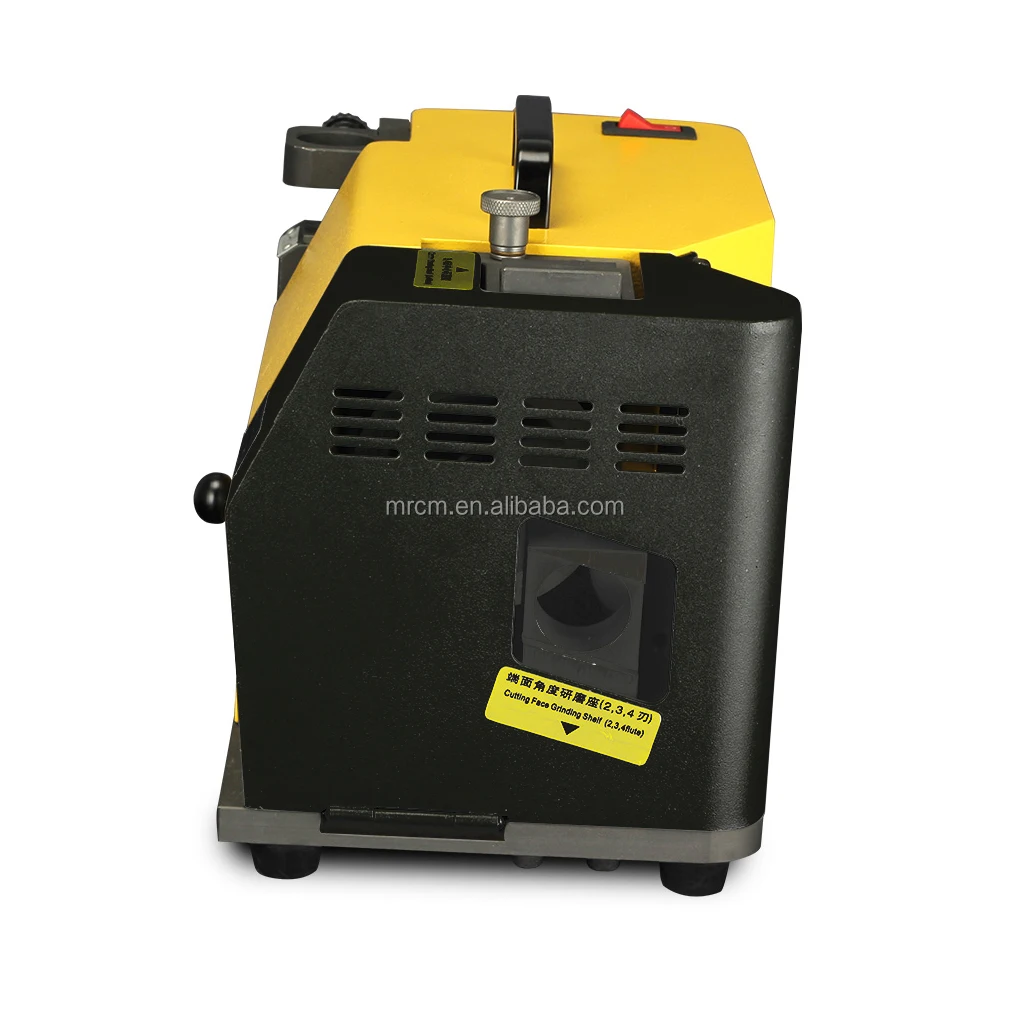

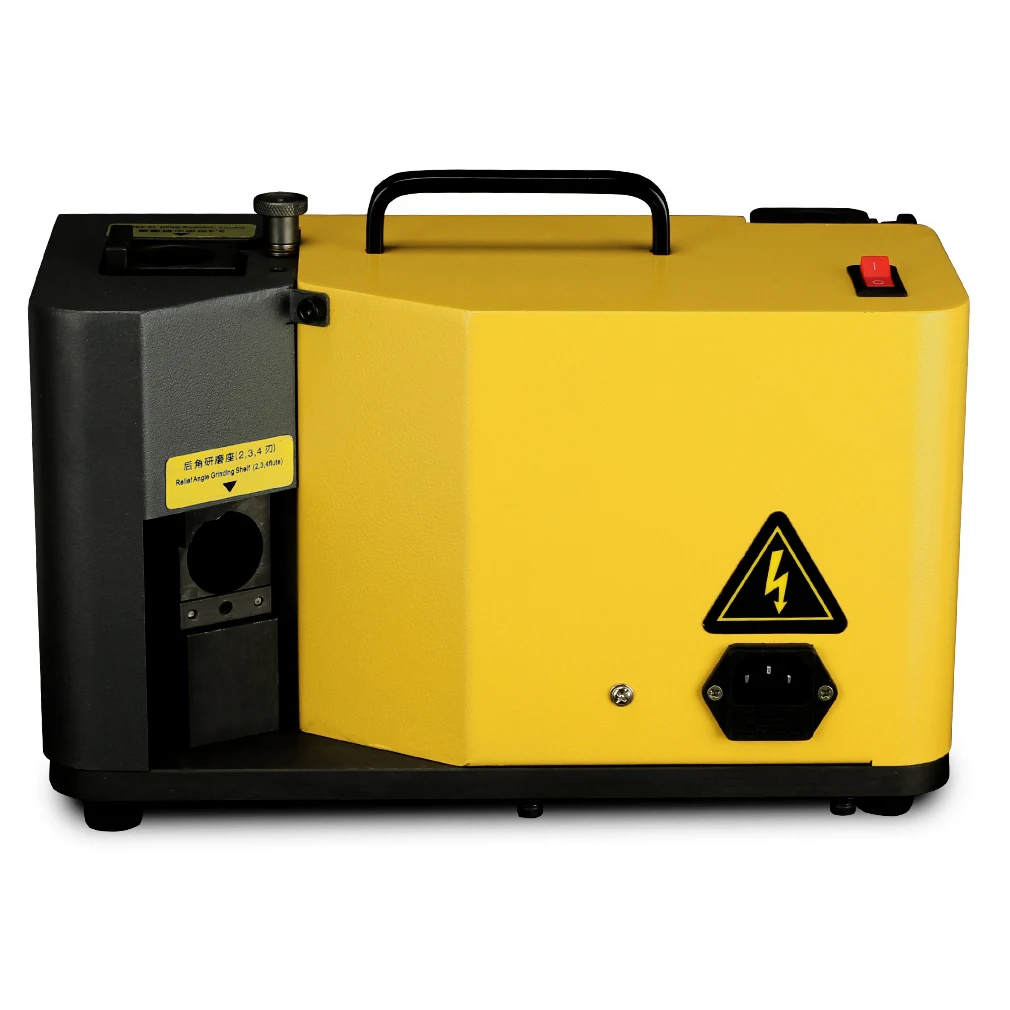

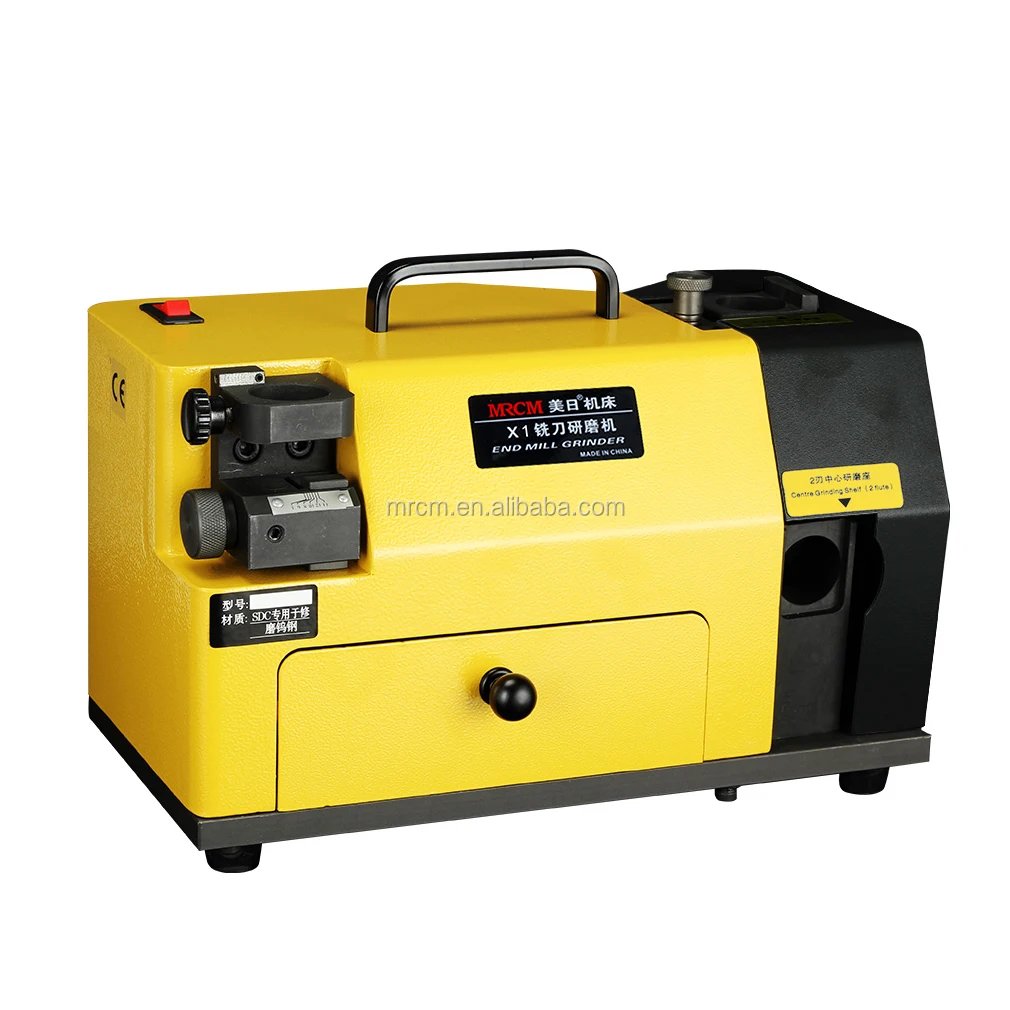

MRCM MR-X1 carbide cutting milling bit tools grinder
Inquire NowDescription
The MRCM MR-X1 Carbide Cutting Milling Bit Grinder is a portable end mill sharpener designed for efficiency and accuracy. This versatile tool can grind 2-flute, 3-flute, and 4-flute end mills with ease, making it an ideal choice for small to medium enterprises, family workshops, and personal repair tasks. With its user-friendly operation, even those with no prior grinding experience can achieve professional results.
Equipped with a Taiwan diamond grinding wheel, the MR-X1 completes all necessary procedures with just one piece. Its design allows for precise angle adjustments, ensuring long service life and robust performance. The grinder supports both carbide and HSS materials, providing flexibility in various applications.
Key Features:
- Portable and easy to operate.
- Accurate and rapid grinding process.
- Compatible with multiple flute types.
- Standard SDC grinding wheel for carbide; optional CBN for HSS.
Specifications
| Model | MR-X1 |
|---|---|
| Diameter | Φ4-Φ14mm |
| Power | 220V/160W |
| Speed | 4400rpm |
| Point Angle | 3° |
| Dimension | 35 x 25 x 25 cm |
| Weight | 14 KG |

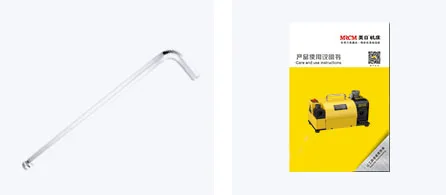

| Standard Equipment |
|
| Optional Equipment | Grinding wheel: CBN (for HSS) |
Additional Information
For optimal use, adjust the scale according to the diameter of the end mill. The clear operation steps and high efficiency make the MR-X1 a must-have for those needing reliable grinding solutions.
