OEM ODM Multifunction Dust Suppression Truck
Description

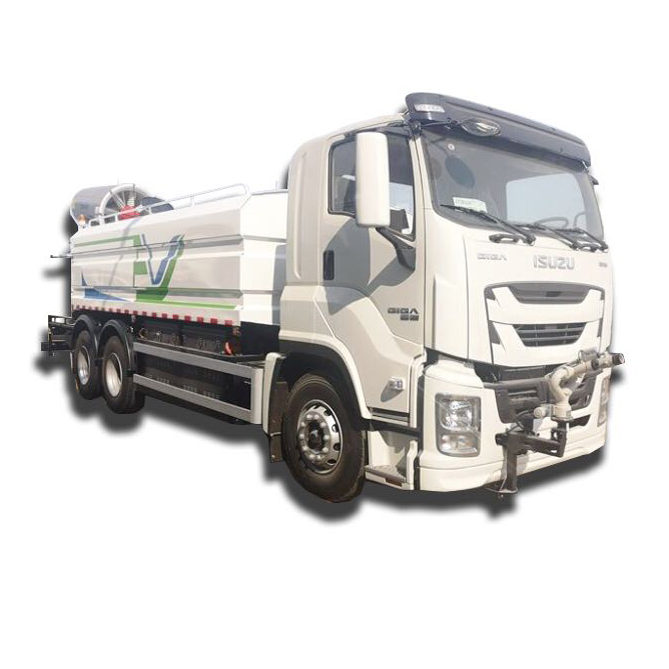

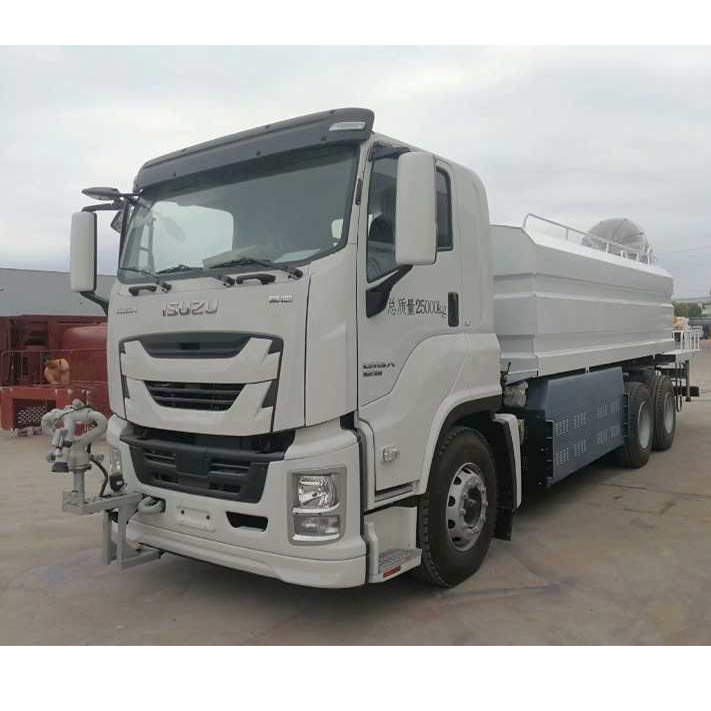

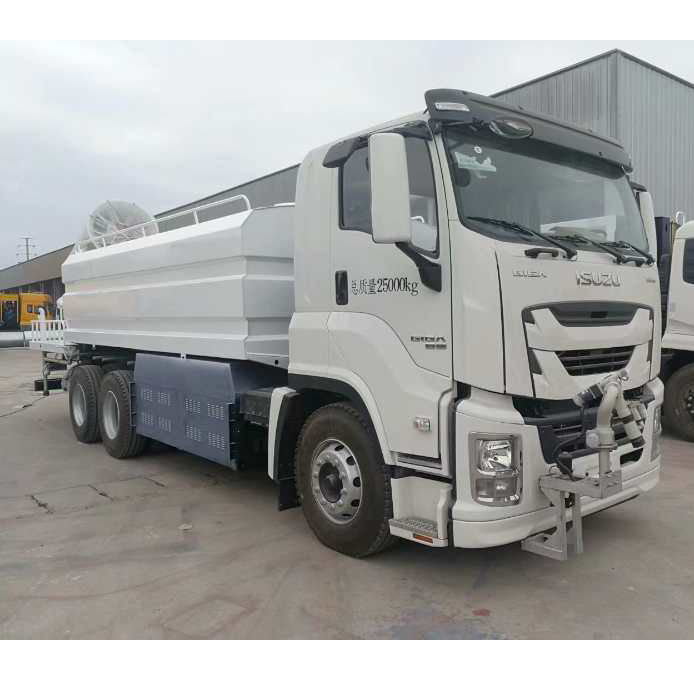

The Multifunction Dust Suppression Truck, model VC61 6×4 15m³, is designed to effectively manage dust control in various environments. This robust vehicle, compliant with Euro V standards, is equipped with a 15 cubic meter stainless steel tank, ensuring durability and reliability. It features a powerful engine with a maximum output of 257 kW, and is built on a sturdy 6×4 chassis, making it ideal for heavy-duty operations.
With advanced functionalities, this truck includes a high-pressure water system, front spray, rear spray, and a 100-meter spray machine, allowing for efficient dust suppression across large areas. The vehicle is also outfitted with modern amenities such as power steering, air conditioning, and a data recorder, enhancing the operator’s experience.
Specifications
| Attribute | Details |
|---|---|
| Vehicle Model | QL1250U1SDZY |
| Overall Dimensions (L x W x H) | 11010 x 2500 x 3380 mm |
| Tank Dimensions (L x W x H) | 4450 x 2250 x 1600 mm |
| Curb Weight | 13900 Kg |
| Gross Vehicle Weight (GVW) | 25000 Kg |
| Wheelbase | 4565 + 1370 mm |
| Drive Type | 6×4 |
| Brake System | Air Brake |
| Engine Model | 6UZ1-TCG51 |
| Max Output | 257 kW |
| Displacement | 9839 ml |
| Horsepower | 350 ps |
| Max Torque | 1422 N·m |
| Transmission | ZF8S2030T0, 8 Speed Manual |
| Cabin Type | Plat roof single sleeper |
| Standard Configuration | Power Steering, AC, Tubeless Tire, ABS, and more. |
| Tank Configuration | 15 m³ stainless steel tank with high-pressure water system. |
