Description

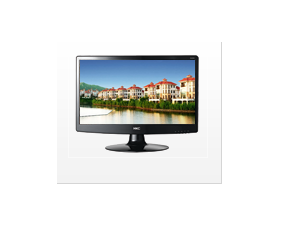

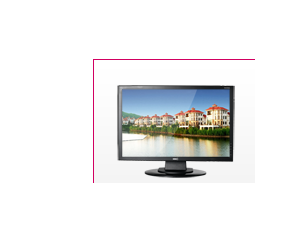

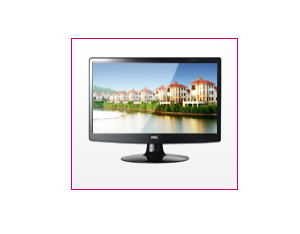

Introducing a high-performance 18.5″ LED panel, designed for an exceptional visual experience. With a 16:9 aspect ratio and a pixel pitch of 0.3 mm, this monitor delivers stunning clarity and vibrant colors, boasting a maximum resolution of 1360 x 768 pixels and a color depth of 16.7 million hues. Enjoy a remarkable contrast ratio of 700:1, which can reach up to 100,000:1 with dynamic contrast enabled. The panel features a typical brightness of 200 cd/m² and an impressive response time of 2 ms, making it ideal for fast-paced content. The wide viewing angles of 85° horizontally and 80° vertically ensure clear visibility from various positions.
Specifications
| Attribute | Details |
|---|---|
| Panel Size | 18.5″ 16:9 LED |
| Pixel Pitch | 0.3(H) / 0.3(V) mm |
| Max Resolution | 1360 x 768 |
| Color Depth | 16.7 Million |
| Contrast Ratio (Typical) | 700:1 |
| Dynamic Contrast Ratio | 100,000:1 |
| Brightness (Typical) | 200 cd/m² |
| Response Time | 2 ms |
| Viewing Angle (R/L/U/D) | 85°/85°/80°/80° |
| Input Signal | Analog RGB |
| Scan Frequency | H: 30-80 kHz, V: 60-75 Hz |
| Audio (Optional) | 2W |
| Power Adapter Input | AC 100-240V, 50-60Hz |
| Current | 1.1A |
| Power Consumption | 25W |
| Safety & EMI | CE, ROHS |
