OEM ODM New Construction Equipment 700 Mini Front End Skid Steer Wheel Loader for Sale
#### **Description**

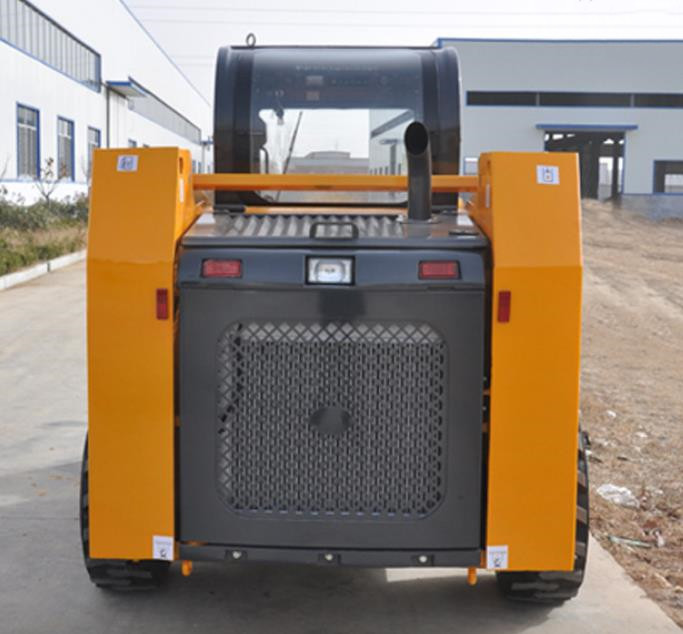

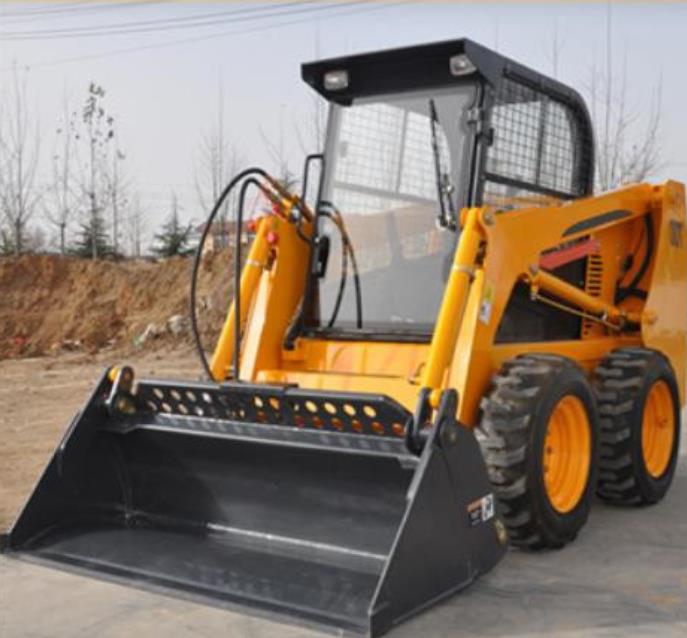

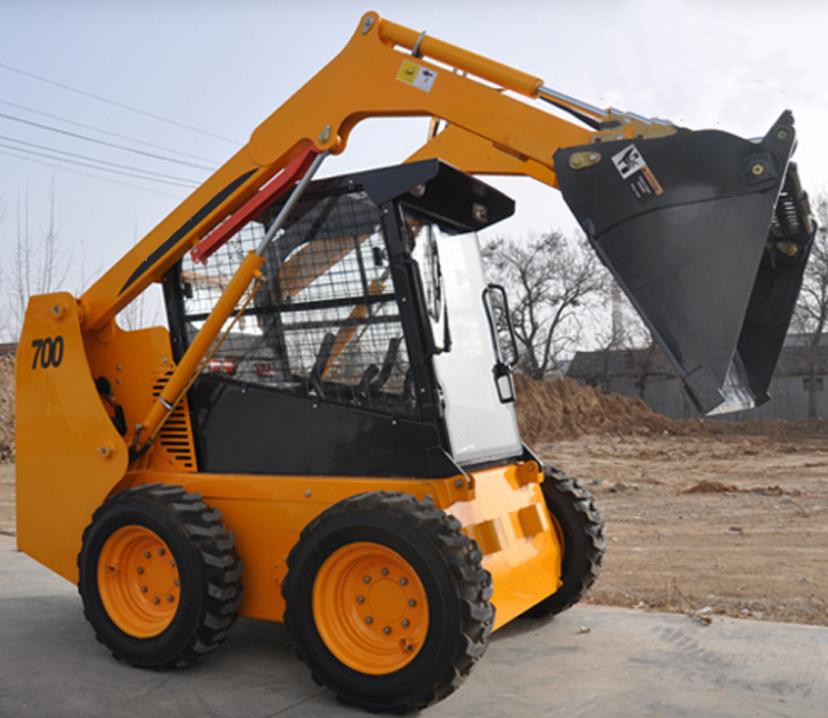

Introducing the 700 Mini Front End Skid Steer Wheel Loader, a powerful and efficient construction equipment designed for versatility and performance. This loader features an advanced transmission output mode that employs a direct connection between the double pump and engine, ensuring optimal power delivery. Its robust frame structure enhances strength and stability, making it ideal for various construction tasks. The rear-mounted radiator and side-by-side heat dissipation system ensure effective cooling, even under heavy workloads. Equipped with a renowned domestic engine, this loader combines power with energy efficiency and environmental protection. The American Saodanfoss hydraulic system guarantees a stable and reliable hydraulic performance, making it a top choice for professionals in the construction industry.
#### **Specifications**
| Attribute | Value |
|---|---|
| Engine | 498BPG |
| Rotating Speed | 2500R/min |
| Engine Form | Four cylinders, water cooling |
| Power | 45KW |
| Engine Power | 500W |
| Voltage | 12V |
| Battery | 105AH |
| Walking Speed | 0-10KM/H |
| Drive Way | Hydrostatic four-wheel drive |
| Tires | 10-16.5 |
| Hydraulic Pump Flow | 110L/min |
| Pressure | 15mp |
| Fuel Tank Capacity | 103L |
| Hydraulic Oil Tank Capacity | 63L |
| Double Plunger Pump | Sao |
| Working Height | 3490mm |
| Maximum Pin Height | 3028mm |
| Height of Bucket | 2814mm |
| Maximum Discharge Height | 2266mm |
| Discharge Distance at Highest Point | 437mm |
| Wheelbase | 1044mm |
| Total Height | 1979mm |
| Ground Clearance | 196mm |
| Length Without Bucket | 2621mm |
| Total Length | 3400mm |
| Bucket Width | 1720mm |
| Total Width | 1665mm |
| Tire Thickness | 240mm |
| Minimum Turning Radius | 2056mm |
