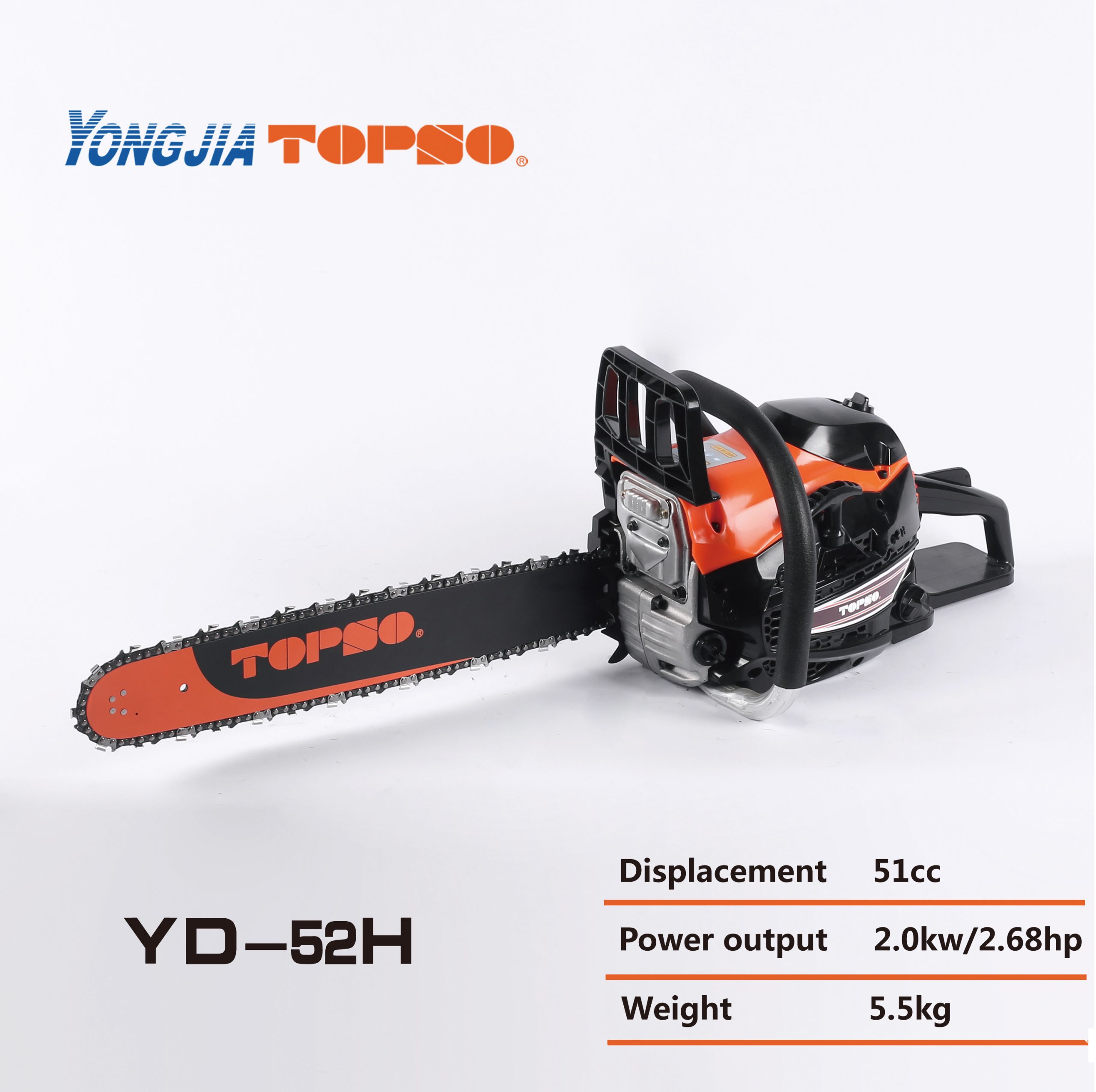

New Model 51cc Chainsaw YD-52H
Inquire NowDescription
The New Model 51cc Chainsaw YD-52H is engineered for superior performance and compliance with the latest environmental standards. It addresses the demand for advanced functionality that older models cannot fulfill, adhering to stringent emission regulations such as Euro V, EPA III, and China II. This innovative chainsaw features an easy-start system, equipped with a diaphragm carburetor and lubricator, allowing for hassle-free ignition within five attempts. The design incorporates a large air volume speed-limiting magneto motor, enhancing cooling by 15% and reducing engine temperature by 20%.
The automatic chain lubrication system ensures precise oil output tailored to the wood’s hardness, while the advanced harmful gas purification technology guarantees compliance with the latest emission standards. The YD-52H also boasts a user-friendly tensioning device featuring gear transmission for effortless chain adjustment, embodying convenience and efficiency for users.
Specifications
| Attribute | YD-45H | YD-52H | YD-58H | YD-62H |
|---|---|---|---|---|
| Engine | 1E43F | 1E45F | 1E45.2F | 1E48F |
| Cylinder Bore * Stroke | 43mm*31mm | 45mm*32mm | 45.2mm*34mm | 48mm*34mm |
| Displacement | 45CC | 51CC | 54.5CC | 61.5CC |
| Power | 1.8kW/8500rpm | 2.0kW/8500rpm | 2.4kW/8500rpm | 2.5kW/8500rpm |
| Torque | 2.3N.m/6500rpm | 2.4N.m/6500rpm | 2.5N.m/6500rpm | 2.6N.m/6500rpm |
| Fuel Consumption | 610g/kW.h | 610g/kW.h | 544g/kW.h | 544g/kW.h |
| Lubricate Oil Tank | 260ml | 260ml | 260ml | 260ml |
| Fuel Tank | 550ml | 550ml | 550ml | 550ml |
| Carburetor | Diaphragm | Diaphragm | Diaphragm | Diaphragm |
| Magneto | C.D.I | C.D.I | C.D.I | C.D.I |
| Spark Plug | RCJ6Y/L7TM | RCJ6Y/L7TM | RCJ6Y/L7TM | RCJ6Y/L7TM |
| Chain Reel | 0.325″ or 3/8” | 0.325″ or 3/8” | 0.325″ or 3/8” | 0.325″ or 3/8” |
| Guide Bar | 16”、18” | 18”、20” | 20”、22” | 20”、22” |
| N.W. | 5.5kg | 5.5kg | 5.6kg | 5.6kg |
| Dimension | 410*240*280mm | 410*240*280mm | 410*240*280mm | 410*240*280mm |
| Carton Size | 475*300（150）*305mm | 475*300（150）*305mm | 530*300（150）*310mm | 530*300（150）*310mm |
Additional Information
- Warranty: Standard warranty applies.
- Care Instructions: Regular maintenance is recommended to ensure optimal performance.
