Description

Introducing HH’s newly designed mud pump unit, a cutting-edge solution that combines innovation and efficiency. With 13 invention patents and 18 utility model patents, this mud pump is engineered to perform at the highest levels in demanding conditions. The incorporation of an AC motor direct drive, slide bearings, and advanced compressor cooling technology ensures reliability and longevity.

This mud pump offers exceptional benefits, including:

• No need to replace crossheads and slides for 10 years, ensuring lower maintenance costs.
• Proven performance with no failures during continuous operation for 150 hours at 95% of rated power, achieving 188 SPM and 7500 psi high pressure.
• Capability of running at 7500 psi with a 30 SPM rate, making it versatile for various applications.
• A unique two-piece piston rod system that allows precise alignment between liners and pistons, making piston replacements quick and easy without disassembling the liners.
• An innovative hydraulic valve seat puller that facilitates easy removal of seats after high-pressure operations.
• Lightweight and compact design, suitable for installation in pump houses, trailers, and offshore drilling platforms, with convenient helicopter lifting capabilities.
• A comprehensive monitoring and protection system to safeguard both equipment and personnel.
• Available in different models ranging from 1600hp to 3000hp, all complying with API standards for liners, pistons, and valves.
• Energy-efficient design that reduces transportation and operational costs.

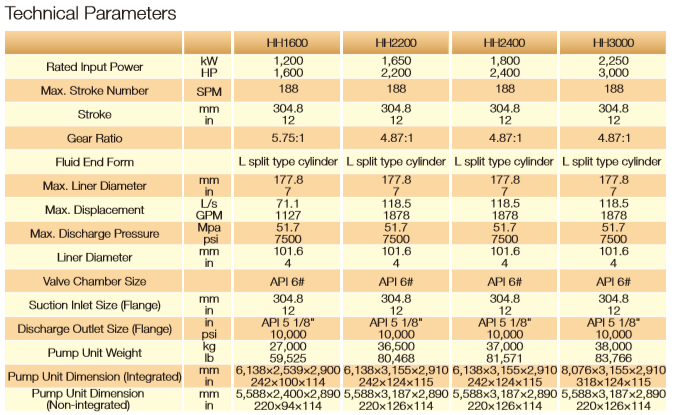

Specifications

Additional Information

This mud pump unit is not only engineered for performance but also prioritizes safety with its complete monitoring system. Its lightweight and compact design facilitates easy transportation and enhances operational flexibility, making it an excellent choice for various drilling applications.
