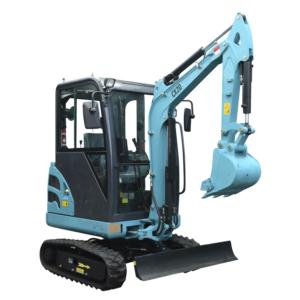

Ningbo ACE Machinery CO. LTD Mini excavator 1 ton

The small excavator is suitable for loosing soil of vegetable green house ,campus greening of municipal departments,diqging the hole for tree planting of fruit-land nurseries,concrete pavement crushing , sand-gravel material mixing,construction work in the narrow placeAs a full export company, quality is our most basic and strict pursuit.Our products are sold all over the world, especially in europe and america.And in many countries already have a complete independent sales system and sole agent.

Model CX10T
Dimensions Specification
Wheel Tread 910 mm
Length of track 1230 mm
Ground clearance of upper platform 380 mm
Turning radius of tail 784 mm
Width 896 mm
Width of track 130 mm
Height of track 320 mm
Length 2770 mm
Height 1490 mm
Operating range Specification
Working ranges 2850 mm
Maximum digging radius 1650 mm
Maximum digging depth 2610 mm
Maximum digging height 1850 mm
Maximun vertical digging depth 1375 mm
Minimum swing radius 1330 mm
Height of bulldozing plate 345 mm
Depth of bulldozing plate 255 mm
Engine Specification
Engine type air-cooled,

KM192FS

Engine power 8.6 KW
Bucket capacity 0.025 m³
