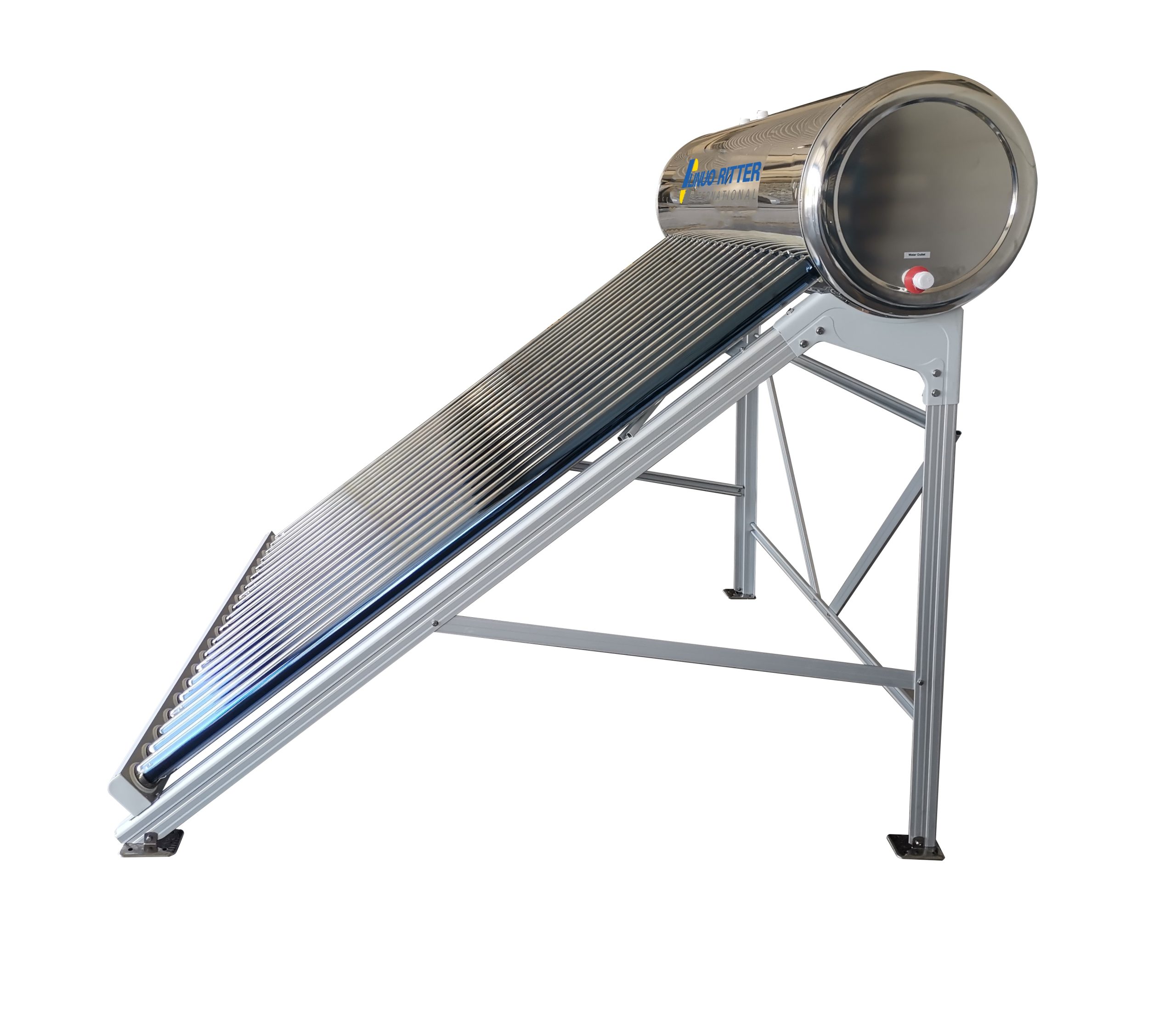

Non pressurized solar water heater with vacuum tubes 100L
Inquire NowDescription
The Non-Pressurized Solar Water Heater with Vacuum Tubes is an innovative solution designed to harness solar energy for heating water efficiently. Utilizing the thermosiphon principle, this system captures sunlight through its vacuum tubes, converting it into heat that warms the working fluid, primarily water. As the water heats up, it naturally rises to the top of the tank, allowing cooler water to flow down, creating a continuous circulation process. This eco-friendly water heater is ideal for those looking to reduce energy costs while utilizing renewable energy sources.
Specifications
| Attribute | Details |
|---|---|
| Rated Operation Pressure | 0.06 MPa |
| Gross Surface Area | 1.33 m² |
| Aperture Area | 0.92 m² |
| Tank Dimensions | φ450 x 990 mm |
| Insulation of Tank | Polyurethane / 50 mm |
| Inner Tank Material | Stainless Steel SUS304-2B |
| Diameter / Thickness Inner Tank | φ350 mm / 0.5 mm |
| Outer Tank Material | Stainless Steel |
| Diameter / Thickness Outer Tank | φ450 mm / 0.4 mm |
| Type of Vacuum Tubes | φ58 x 1800 mm |
| Number of Evacuated Tubes | 10 pcs |
| Bracket Material and Color | Aluminum Alloy / Silver White |
| Bracket Inclination Degree | 30° |
| Provision of Electric Heating and Anode Protection | Yes |
| DIN CERTCO Registration Number | 011-7s2714A |
Additional Information
- Eco-friendly solution utilizing renewable energy
- Ideal for domestic and commercial applications
