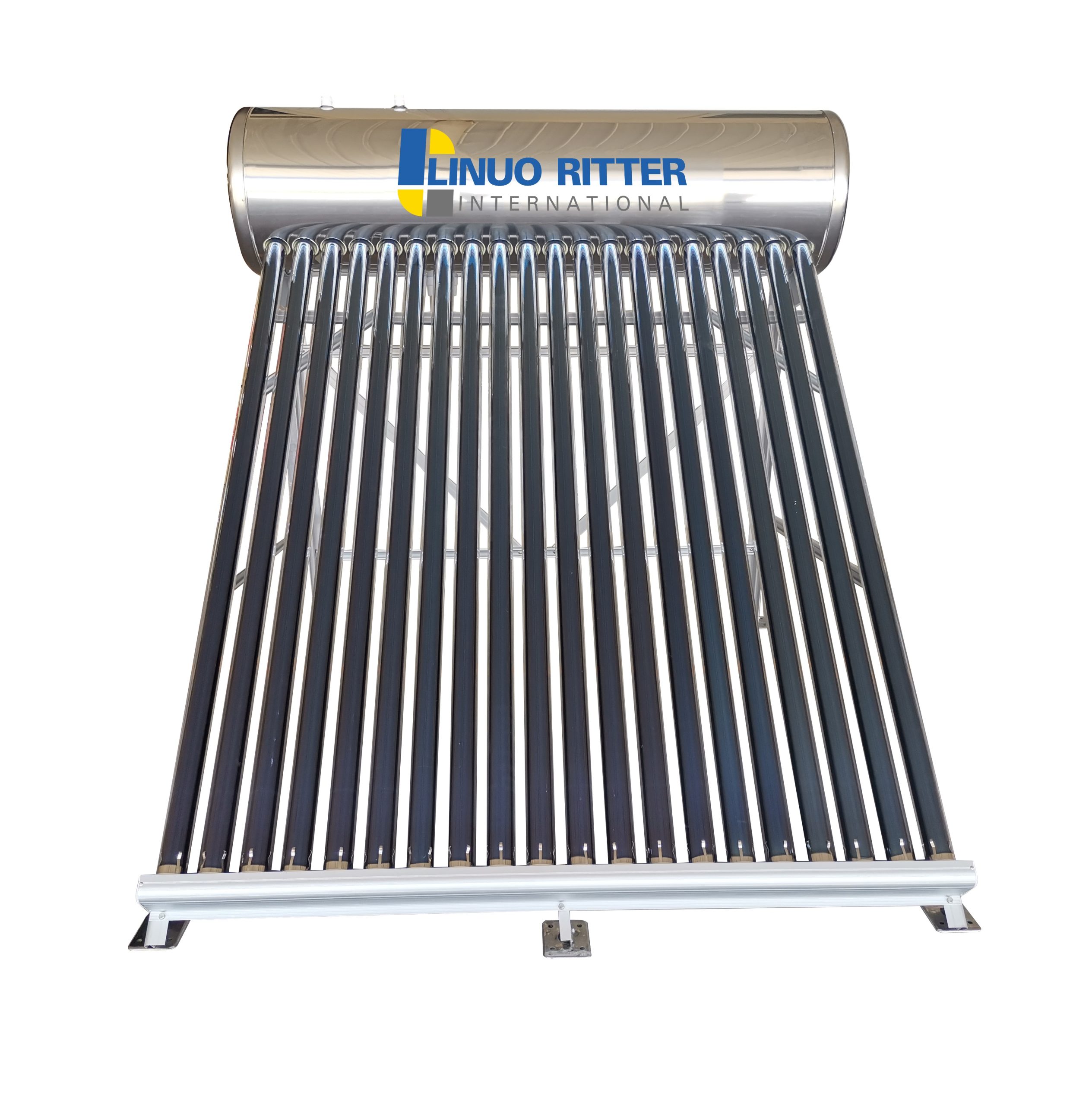

Non pressurized solar water heater with vacuum tubes 300L
Inquire NowDescription
This non-pressurized solar water heater harnesses the power of the sun through vacuum tubes to provide efficient and eco-friendly heating for your water needs. Employing the thermosiphon principle, this system absorbs solar radiation, converting sunlight into heat, and transfers it to the water. As the water heats up, it naturally rises within the solar collector, while cooler water descends to the tank’s base, ensuring continuous circulation. The system operates effectively during sunny conditions and is designed for easy installation and maintenance.
Specifications
| Feature | Specification |
|---|---|
| Rated Operation Pressure | 0.06 Mpa |
| Gross Surface Area | 4.06 m² |
| Aperture Area | 2.70 m² |
| Tank Dimensions | φ450 x 2510 mm |
| Insulation of Tank | Polyurethane / 50 mm |
| Material Inner Tank | Stainless steel SUS304-2B |
| Diameter / Thickness Inner Tank | φ350 mm / 0.5 mm |
| Material Outer Tank | White painted steel |
| Diameter / Thickness Outer Tank | φ450 mm / 0.4 mm |
| Type of Vacuum Tubes | φ58 x 1800 mm |
| Evacuated Tubes Number | 30 pcs |
| Bracket Material and Color | Aluminum Alloy / Silver White |
| Bracket Inclination Degree | 30° |
| Provision of Electric Heating and Anode Protection | Yes |
| DIN CERTCO Registration Number | 011-7s2714A |
Additional Information
- This system operates best in sunny conditions, ensuring efficient heating.
- Ideal for residential use, providing an eco-friendly alternative to traditional water heating methods.
