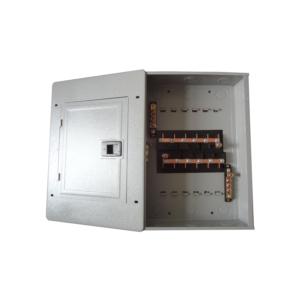

North American 4 way distribution box
Inquire NowDescription
The North American 4 Way Distribution Box from the GTLS Series is an economical load center specifically designed for the safe and reliable distribution and control of electrical power. Ideal for use in residential, commercial, and light industrial settings, this distribution box serves as essential service entrance equipment. Crafted from high-quality steel sheet with a thickness of 0.5-1.2mm, it boasts durability and resilience.
This distribution box features a sleek, matt-finish polyester powder-coated paint, ensuring not only functionality but also aesthetics. With knockouts strategically placed on all sides, it provides versatile cable entry options. It is compatible with GE type 1′ THQL breakers, suitable for single-phase, three-wire configurations, and can handle rated currents of up to 100A and service voltages of 120/240Vac. The wider enclosure design facilitates easier wiring and enhances heat dissipation, making installation and operation efficient. Available in both flush and surface-mounted designs, it caters to various installation needs.
Specifications
| Attribute | Details |
|---|---|
| Series | GTLS |
| Material | High-quality steel sheet |
| Thickness | 0.5-1.2mm |
| Coating | Matt-finish polyester powder coated paint |
| Compatibility | GE type 1′ THQL breakers |
| Rated Current | Up to 100A |
| Service Voltage | 120/240Vac |
| Mounting Options | Flush and surface mounted |
| Knockouts | All sides, top, and bottom |
Additional Information
– The wider enclosure design aids in easier wiring and improved heat dissipation.
– Perfect for both residential and light industrial applications.
