Description

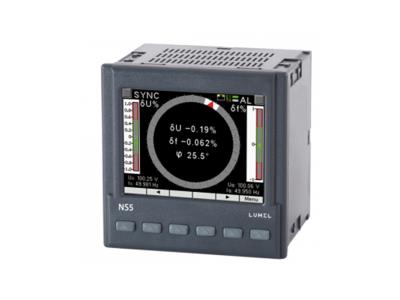

The NS5 Synchronization Meter is an advanced digital synchroscope specifically engineered for the automatic switching of three-phase generators, allowing for seamless parallel operation with the grid or other generators operating at a rated frequency of either 50 or 60 Hz. This device ensures precision and reliability in synchronization tasks, making it an essential tool for various industrial applications.
Features
- Clear data visualization with a color graphic display of 3.5” TFT for synchroscope, differential voltmeter, and frequency meter.
- Input signal range: 50…150 V or 150…400 V.
- Supports direct or indirect measurement via voltage transformers.
- Additional control inputs for lock synchronization (BLK) and start synchronization (START).
- Programmable hysteresis for voltage difference, frequency, and phase shift angle.
- Ethernet interface (10/100 BASE-T) for local and global network connectivity.
- Network services including web server, Modbus TCP/IP, and DHCP client.
- RS485 with MODBUS RTU protocol for enhanced communication.
- Password protection for two user accounts on the Web Server.
- Measures minimum and maximum values for voltage and frequency.
- Compact external dimensions: 96 x 96 x 77 mm.
Applications
- Data synchronization between databases.
- Cross-platform data synchronization.
- Real-time data synchronization with data analysis platforms.
- Real-time analysis and report generation.
- Data backup and recovery solutions.
- Data sharing and process integration between applications.
- Synchronization between various cloud service providers.
- Achieving data consistency in multi-cloud environments.
Specifications
| Attribute | Details |
|---|---|
| Input Signal Range | 50…150 V or 150…400 V |
| External Dimensions | 96 x 96 x 77 mm |
Additional Information
No additional information available.
