Off road truck/Mining trcuk
Inquire NowDescription

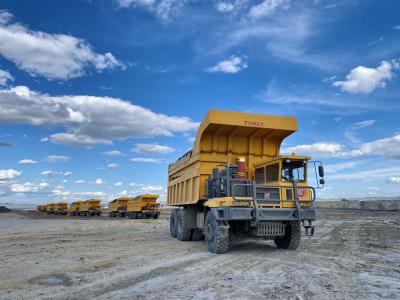

The TL875 series off-road truck is engineered for the most demanding transport applications, boasting a remarkable capacity of over 60 tons. Known for its mature design, this vehicle stands out due to its stable performance and leading market share in the mining sector. The TL875 is your reliable partner for heavy-duty transportation, ensuring efficiency and productivity on rugged terrains.
Specifications
| Attribute | TL875B | TL875C | TL875D |
|---|---|---|---|
| Engine | Weichai 430Hp | Commins 420Hp | Weichai 480Hp |
| Gearbox | Fast 7DS180 | Fast 7DS180 | Fast 8DS260 |
| Front Axle | 20T | 20T | 20T |
| Drive Axle | 35T + 35T | 35T + 35T | 35T + 35T |
| Lifting System | Single Cylinder Front Lifting | Single Cylinder Front Lifting | Single Cylinder Front Lifting |
| Tire | 14.00-25 | 14.00-25 | 14.00-25 |
| Standard Bucket Capacity (m³) | 30 | 30 | 30 |
| Drive Mode | 6×4 | 6×4 | 6×4 |
| Curb Mass (t) | 30 | 30 | 30 |
| Rated Loading Capacity (t) | 60 | 60 | 60 |
| Maximum Total Mass (t) | 90 | 90 | 90 |
| Overall Dimension (mm) | 9157×3470×3978 | 9157×3470×3978 | 9157×3470×3937 |
| Maximum Speed (km/h) | 42 | 42 | 42 |
| Maximum Gradeability (%) | 32 | 32 | 32 |
| Minimum Turning Radius (m) | 11 | 11 | 11 |
| Minimum Ground Clearance (mm) | 305 | 305 | 305 |
| Approach Angle / Departure Angle (°) | 24/47 | 24/47 | 24/47 |
| Braking Distance | < 15 (V0=30km/h) | < 15 (V0=30km/h) | < 15 (V0=30km/h) |
Additional Information
- Designed for optimal performance in off-road conditions.
- Ideal for mining and heavy-duty transport tasks.
- Robust construction ensures durability and efficiency.
