Oil immersed power transformer
Inquire Now
Benefits:
S11-M 10KV Oil immersed sealed current transformer is compact and with strong over-load ability, low temperature rise and noise. It can save about 30% no-load loss than S9 series Oil immersed sealed current transformer, and save about 40%-80% no-load current.
1. It’s an environment-friendly transformer with low no-load loss, no-load current and noise;
2. No oil storage box to save space;
3. Whole sealed with vacuum oil filling, high stability of insulation;
4. Adopts the corrugations on the oil tank as its heat-radiation parts, corrugations can expand or contract accord to the change of oil volume
5. Fully sealed structure, maintenance free;
6. With oil level gauge to ensure the safety running.
S11-M SERIES 10kV OIL IMMERSED SEALED CURRENT TRANSFORMER
Standard
GB1094.1, .2-2013
GB/T6451-2008
GB1094.3-2003
GB1094.5-2008
Model code
|
S |
11 |
– |
M(R) |
–□ |
/□ |
□ |
||||||||||
|
Special use environment, TH means tropical-temperate |
||||||||||||||||
|
Voltage Grade KV |
||||||||||||||||
|
Rated capacity KVA |
||||||||||||||||
|
M-Whole sealed, R-Roll core, Nothing-Lamination type |
||||||||||||||||
|
Performance level |
||||||||||||||||
|
Three phase oil immersed |
||||||||||||||||

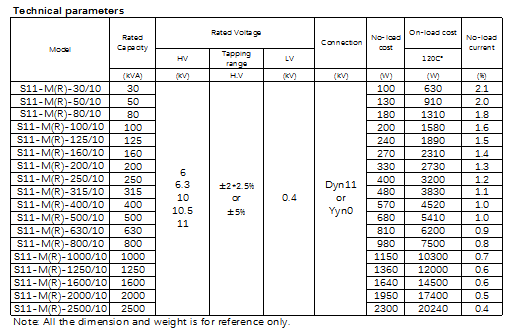

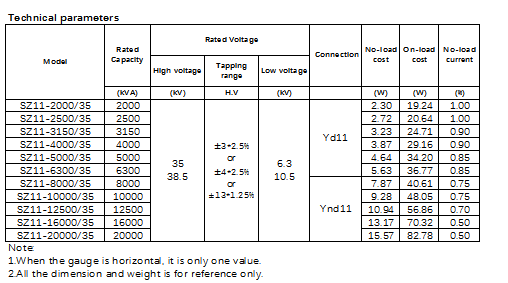

Technical parameters
