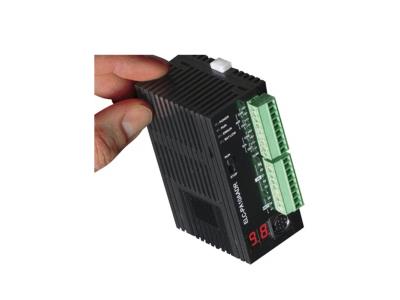

Omega ELC PLC Programmable Logic Controller
Inquire NowDescription
The Omega ELC PLC Programmable Logic Controller is a cutting-edge solution in the PLC market, designed to be compact and efficient. Less than half the size of a typical brick PLC, the ELC is a micro-PLC that encompasses advanced features previously exclusive to larger, more expensive rack-mount PLCs. This innovative controller is ideal for low-cost standalone control, making it a smart choice for various automation needs.
Features
- Built-in digital and analog I/O for low-cost standalone control
- Local I/O expandable to 256; I/O expansion modules connect easily with no extra wiring
- Removable terminal blocks for easy wiring
- 2 serial ports with Modbus RTU supported on both
- Real-time clock/calendar
- High-speed pulse inputs and outputs
Specifications
| Attribute | Details |
|---|---|
| ESD Immunity | 8 kV air discharge |
| EfT Immunity | Power Line: 2 kV; Digital I/O: 1 kV; Analog and Communication I/O: 250 V |
| Damped-Oscillatory Wave | Power Line: 1 kV; Digital I/O: 1 kV |
| RS Immunity | 26 MHz to 1 GHz, 10 V/m |
| Agency Certifications | UL 508, cUL, CE, Class 1, Div 2 |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Operating Humidity | 50 to 95% |
| Power Supply Voltage | ELC: 24 Vdc (-15 to 20%), Expansion unit: Supplied by the ELC |
| Power Consumption | 3 to 6 W |
| Insulation Resistance | >5 M @ 500 Vdc, between all inputs/outputs and earth |
| Weight | 0.158 kg (0.348 lb) |
Additional Information
Grounding: The diameter of the grounding wire must not be smaller than the wire diameter of terminals L and N (all ELC units should be grounded directly to the ground pole).
Vibration/Shock Resistance: Standard: IEC1131-2, IEC 68-2-6 (TEST Fc)/IEC1131-2 and IEC 68-2-27 (TEST Ea).
