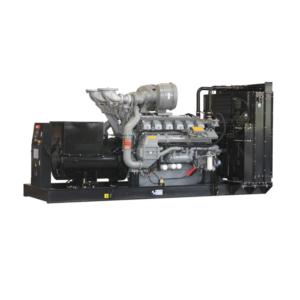

OPEN GENERATOR SET

Inquire Now

OPEN GENERATOR SET

Genset Standard Configuration

◆ Assembled by Doosan diesel engine and world famous brand alternator

◆ Radiator and fan with safety guard

◆ Automatic control panel and electricity output switch cabinet

◆ Float battery charger and solenoid switch as standard supply scope

◆ Built-in shock pad

◆ Strong and durable hi-strength base frame

Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.


Diesel engine

Alternator

Water tank radiator

Automatic control panel

Electricity output switch cabinet

Built-in shock pad

Hi-strength Base Frame

Standard Supply Scope

① Exhaust silencer

② Bellow

③ Elbow and flange

④ Starting battery

Optional supply scope

ATS

Synchronization System

External daily fuel tank

Silent Canopy

Trailer

Auto Fuel Pump

Fuel and Water Separator

Lub Oil Heater

Coolant Heater

Fuel Drain Pump

Doosan engine:

Doosan Engine is a new generation product with first-class performance and reliability launched by Doosan Construction Machinery Co., Ltd., which was established by the Doosan Group in 2005 after the acquisition of Daewoo General Machinery Co., Ltd. Developed on the original Daewoo Engine, Doosan Engine has strong horsepower suitable for standby and prime generator set to meet the needs of power supply all over the world. The power covers 5kW-600kW.

Alternator

AVR Standard
Number of phase Single/3
Power factor 0.8/1
Altitude ≤ 1000 m
Frequency 50/60Hz
Number of pole 4
Exciter type Self-excitation
Voltage regulation ±0.5%
Total harmonics(TGH/THC) < 4 %
Wave form: NEMA = TIF < 50
Wave form: I.E.C. = THF < 2%
Optional PMG excitation system

Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG (optional), in with superior performance in generating non-linear loads.


◆ Forms: single/double bearing

◆ Protection:IP23(IP44 for option)

◆ Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

◆ Overspeed: 2250rpm

◆ Insulation Class: class H

◆ Mechanical Structure: steel base frame

Control System——Deep Sea 6120 Controller





① Power switch

② Power indicator

③ Run button

④ LCD display

⑤ Emergency stop button






It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced engine testing and protection functions. This module includes an LCD backlit display that clearly displays the engine running status. The module also includes 7-channel input and 6-channel output. Program can be set through the panel and PC software suite.


Parameters:

Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic sensor signal loss, low battery voltage, three-phase mains voltage and mains frequency.


Protective functions:

◆ High water temperature

◆ Low oil pressure

◆ High/low voltage

◆ Over speed

◆ Voltage regulator frequency regulator

◆ Emergency stop

◆ Start failure


Product features:

Protection: Automatic start/stop, load switching and genset alarm

◆ Magnetic sensor signal

Parameters setting via PC and panel

◆ Incorporates 4-channel digital input signal and 3-channel analog input signal

◆ 6-channel output signal (4-channel customized output, CAN 6-channel customized output.)

◆ Monitoring of 3-phase generator voltage and mains voltage

◆ Remote loading/unloading

◆ Advanced measurement capabilities

◆ Test button

Switch between mains and genset power

◆ Reasonable structure and button layout

◆ Multiple engine parameters can be tested simultaneously

◆ Module can be configured according to customer demand

◆ IP65 protection (soundproof)

Circuit breaker


Molded case circuitbreaker(MCCB)

63A TO 1600A

Air circuit breaker(ACB)

1600A TO 6300A

Breaking capacity(ICU)

18KA TO 120KA

Rated Operation Voltage(Ue)

400V



Starting battery



Battery Voltage

12V

Battery Capacity

80
