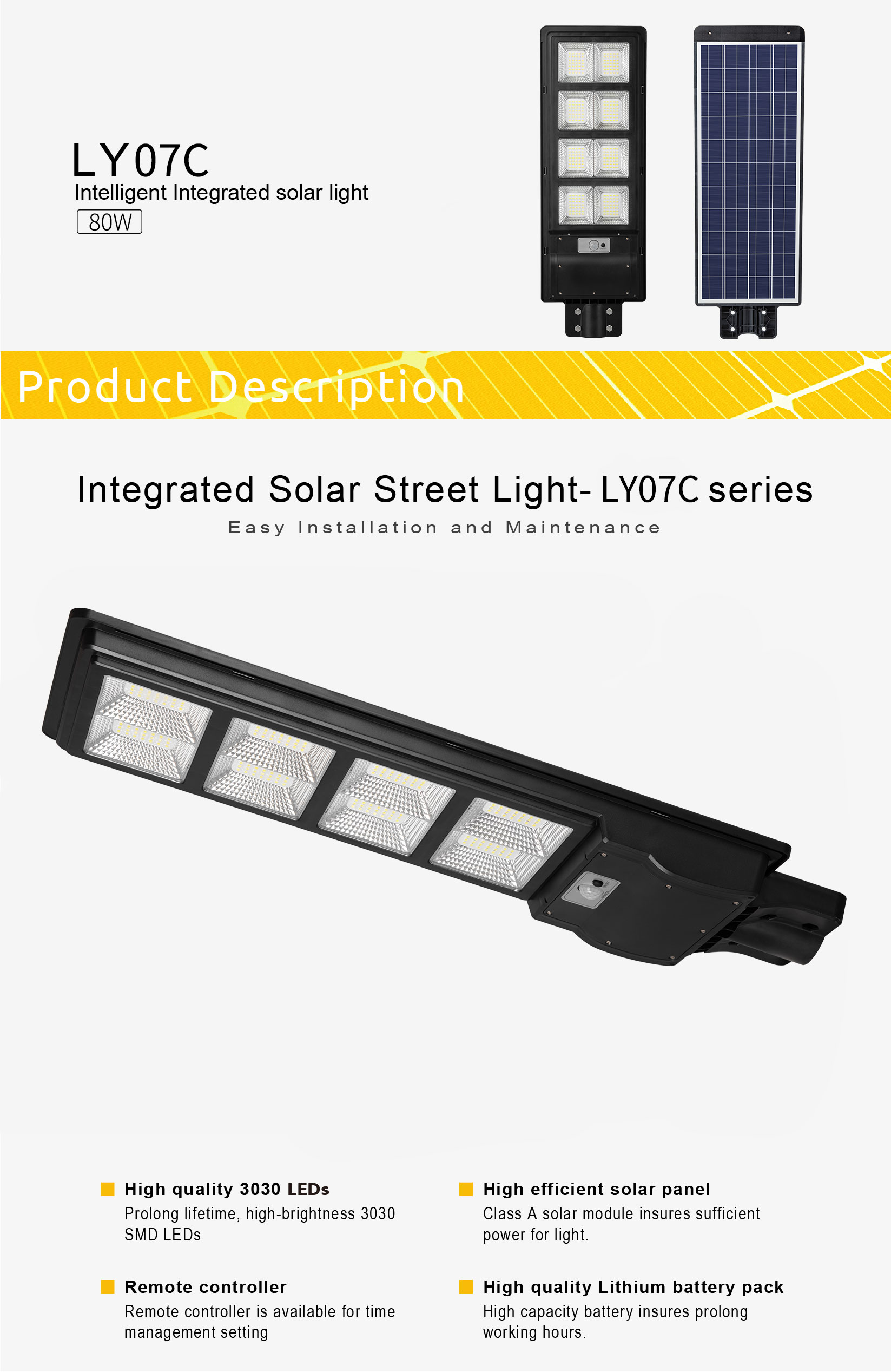

outdoor lighting solar charger all in one soalr street light
Inquire Nowoutdoor lighting solar charger all in one soalr street light
|
Optical Parameter |
Product model |
LY07C |
|
LED rated power (Max) |
80W |
|
|
Lumen output (Max) |
1100Lm |
|
|
CCT |
9000K |
|
|
CRI |
Ra≥70 |
|
|
Beam angle |
100-120° |
|
|
Solar Panel Paramete |
Nominal power |
22W |
|
Size |
506X229X4.3mm |
|
|
Voltage at Pmax (Vmp) |
5.5V |
|
|
Current at Pmax (Lmp) |
4.3A |
|
|
Lifetime |
25 Years |
|
|
Energy Storage Parameters |
Nominal capacity |
20Ah |
|
Nominal voltage |
3.3V |
|
|
Battery type |
LiFePo4 32650 |
|
|
BMS battery management system |
Yes |
|
|
-0°C operation |
Extreme low temperature solution optional |
|
|
Lifetime |
3/5 Years |
|
|
Structural Parameters |
Length |
628mm |
|
Width |
245mm |
|
|
Height |
56mm |
|
|
Material |
Aluminum |
|
|
IP Rating |
IP64 |
|
|
Other Parameters |
Recommended Height of Installation |
＜6M |
|
Sensor |
NO |
|
|
Storage Temperature |
-20°C ~ 55°C |
|
|
Operation Temperature |
0°C ~ 45°C |
|
|
Diameter of Pole |
60mm |
|
|
Warranty |
1 Years |
