OVERHEAD CRANE
Inquire NowDescription

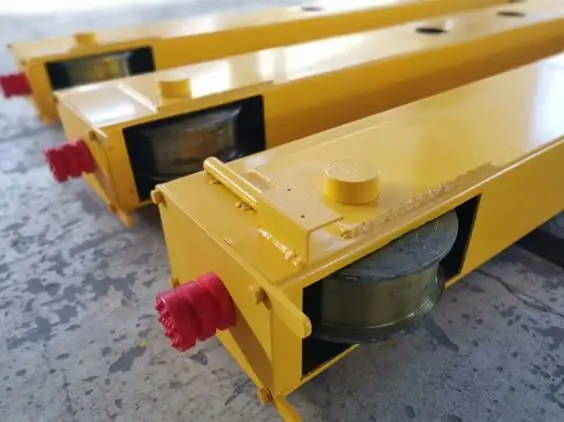

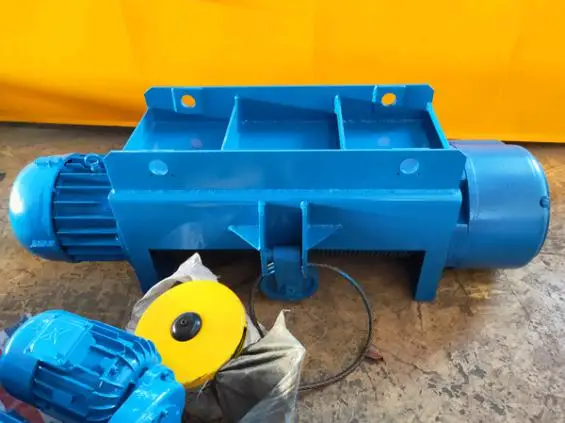

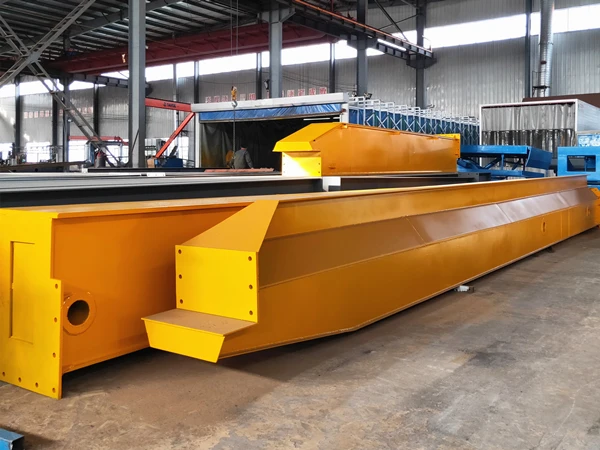

The Overhead Crane is a robust and efficient lifting solution designed for various industrial applications. This crane features a single girder beam supported by end trucks, allowing for smooth operation and versatility in material handling. Equipped with an electric hoist that runs on the bottom flange of the girder, it is ideal for light-duty tasks across industries such as steel, cement, power, mining, food, chemical, shipyards, stone yards, and warehouses.
The overhead crane stands out with its compact appearance, reduced operational noise, and user-friendly installation and maintenance features. Built with a variable frequency drive and a special C steel trolley designed for flat cable, it ensures reliable and effective lifting performance.
Specifications
| No | Item | Data |
|---|---|---|
| 1 | Lift capacity | 0.5-32 T |
| 2 | Span | 6-42M (customized) |
| 3 | Lift height | 3-20M (customized) |
| 4 | Work duty | A4 |

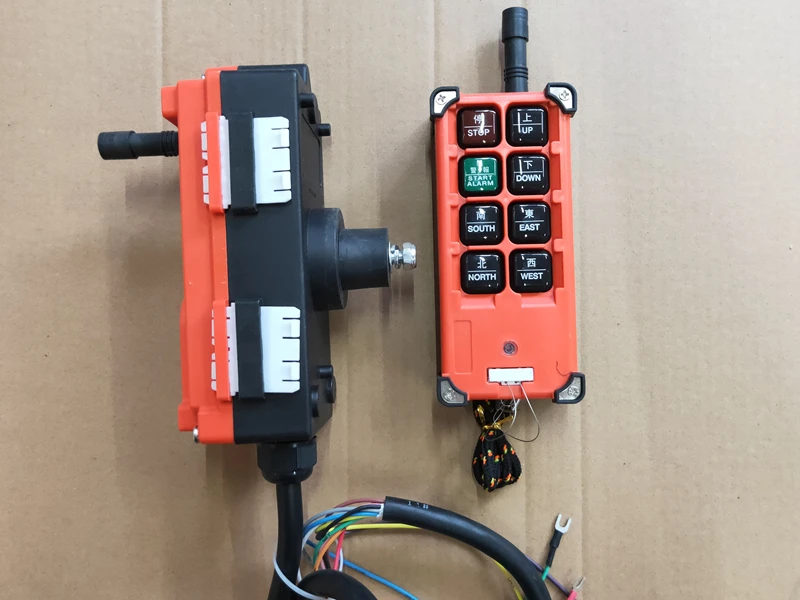

| 5 | Control method | Wireless remote |

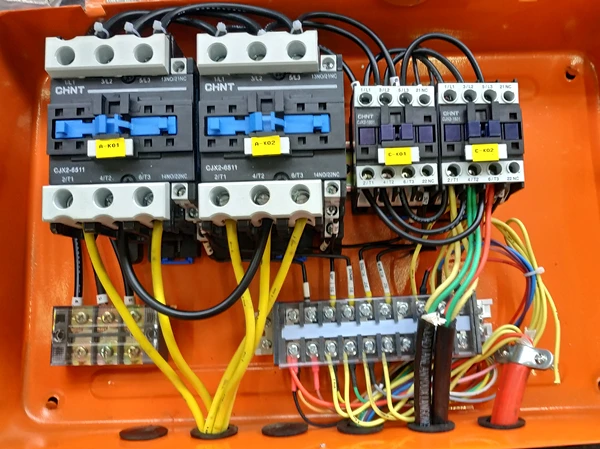

| 6 | Electrical parts | CHINT |
| 7 | Lift speed | 0.8/8M/Min |
| 8 | Cross travel speed | 2/20M/Min |
| 9 | Long travel speed | 2/20M/Min |
| 10 | Power supply | 380V/50Hz/3P or customized |
Additional Information
For optimal performance, please confirm the following details when inquiring about a price:
- Lift capacity: 5 ton, 10 ton or others?
- Lift height: 3m, 6m, 9m or others?
- Span (Warehouse width)?
- Crane travel length (Warehouse length)?
- Local power supply: 380V/50HZ/3Phase or others?
