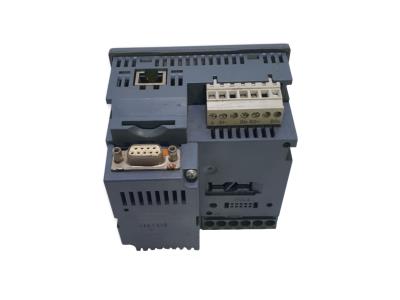

PAC 3200 Siemens Multifunction Meter
Inquire NowDescription
The PAC 3200 Siemens Multifunction Meter is a robust and compact power monitoring device designed for industrial, governmental, and commercial applications. This versatile meter excels in basic metering and energy monitoring, capable of monitoring over 50 parameters. It can operate as a standalone unit or integrate seamlessly into industrial control systems, building automation, or global power monitoring networks. The PAC3200 is ideal for applications ranging from simple analog volt and amp meter replacements to complex installations supporting sub billing and multiple tariffs.
This multifunction meter also facilitates LEED certification by providing essential energy metering data required for various federal and local energy reduction initiatives. With open communication protocols including Modbus RTU/TCP, PROFINET, and PROFIBUS-DP, it ensures easy integration into local or remote monitoring systems. Configuration is straightforward, accomplished via the front display or through a PC using the SENTRON power config setup software, which is included with the device.
Features
- Compact and powerful
- Monitors over 50 parameters
- Versatile applications: industrial, government, commercial
- Supports LEED certification
- Integration into local or remote monitoring systems
- Simple configuration process
Application
- Measurement of all power parameters
- Energy measurement and electrical fire monitoring/control
- Replacement for three-phase power meters and electricity transmitters
- Detection of transformers, generators, capacitors, and electric motors
- Medium and low pressure systems
- SCADA, EMS, DCS integration
Specifications
| Inputs / Outputs | Specifications |
|---|---|
| Input voltage / at digital input | 13 V, 24 V, 8 V |
| Number of digital outputs | 1 |
| Number of digital inputs | 1 |
| Digital output version | Switching or pulse output function |
| Input current / at digital input | 7 mA |
| Output current / at digital output | 0.2 mA (minimum), 27 mA (maximum), 100 mA (maximum at DC) |
| Output delay / at digital output | 5 ms (for signal changes) |
| Operating voltage / at DC / maximum permissible | 30 V |
| Property of the output | Short-circuit proof |
| Input delay time / at digital input | 5 ms (for signal changes) |
| Internal resistance / at the digital outputs | 55 Ω |
| Measuring category / for digital signals | CATII |
| Switching frequency / at digital output / maximum | 17 Hz |
| Measuring inputs | 1.05 MΩ for voltage measurement |
| Measurable supply voltage at AC | 40 V (minimum) to 831 V (maximum) |
| Voltage measuring range extension | Yes |
| Current measuring range extension | Yes |
| Measuring category / for voltage measurement | CATIII |
| Supply voltage / between the outer conductors / at AC / maximum permissible | 831 V |
| Consumed active power / for current measurement / per phase | 115 mW |
| Continuous current / at AC / maximum permissible | 10A |
| Measuring category / for current measurement | CATIII |
| Zero suppression / for current measurement | 0.1…10 % |
| Relative measurable current / at AC | 1 % (minimum) to 120 % (maximum) |
| Measuring procedure / for current measurement | TRMS |
| Measurable current / at AC / Rated value | 1 A |
| Short-time current resistance (Icw) / limited to 1 s / rated value | 100 A |
