Panel Production Line Stone Coated Roof Tile Production Line
Inquire NowProduct Description

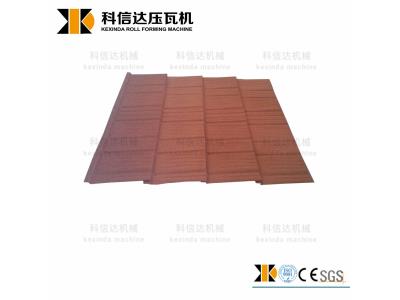

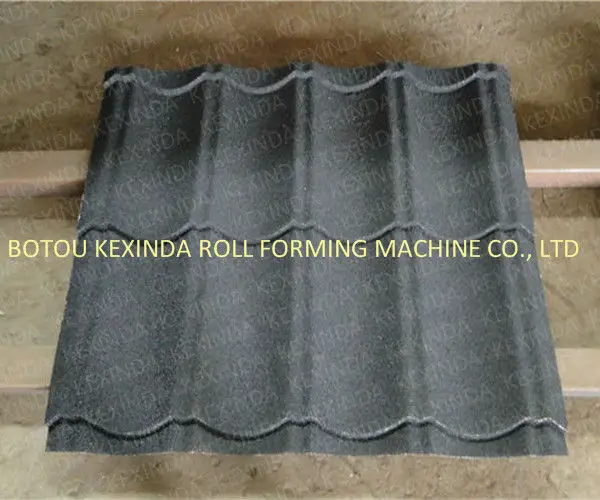

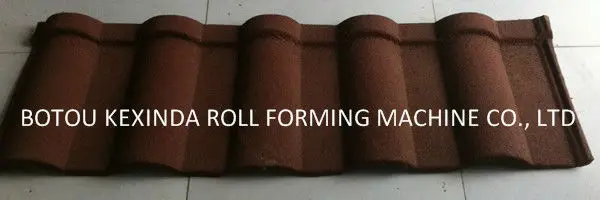

Panel Production Line Stone Coated Roof Tile Production Line is an innovative and environmentally friendly roofing solution crafted from 0.4mm Al-zinc coated steel. This production line utilizes high-temperature technology to deliver colorful stone-coated metal roof tiles, ensuring high performance, stability, and energy efficiency. Its user-friendly operation makes it a popular choice in modern construction.
Special offer!!! HOT!!! BEST SALES!!!
This production line is currently in high demand, providing an excellent opportunity for businesses to enhance their roofing capabilities.
The process involves multiple steps, including:

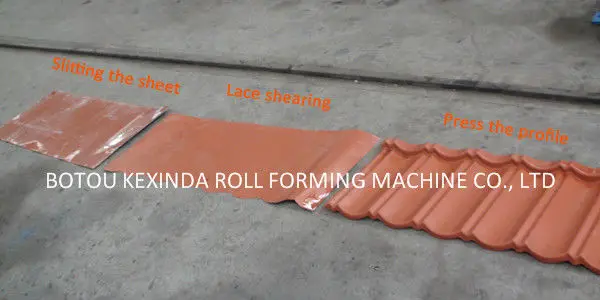

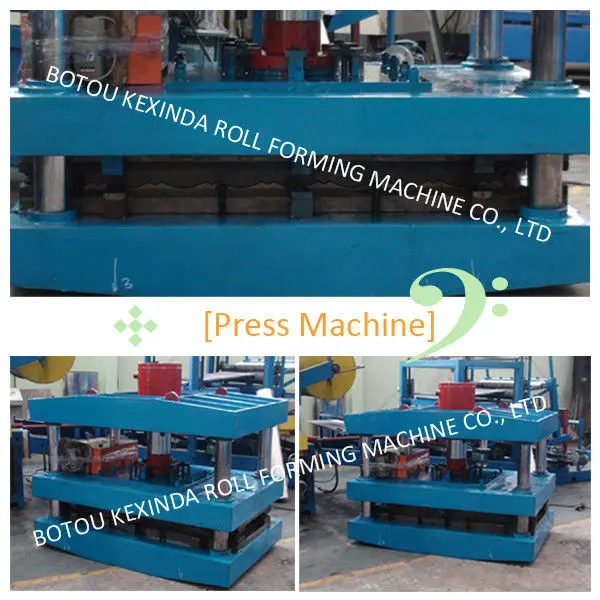

- Roofing tile profile forming
- Sand blasting (the stone coated)
- Drying sections
- Glue spraying sections
Each step is designed to optimize production efficiency and product quality.
Specifications
| Feature | Details |
|---|---|
| Appearance Size (Auto bottom glue spraying section) | 4000*1000*2000mm |
| Driving Section | 3KW Excitation motor or frequency speed regulation |
| Automatic Pressure Spray Tank | 1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
| Automatic Glue Machine Motor | Servo motor ; Power: 750w ; PLC |
| Conveying Device | Chain reciprocating |
| Air Compressor | 1 set ; Power: 7.5kw |
Detail Introduction
| Component | Details |
|---|---|
| NO. 1 Auto bottom glue spraying section | Includes automatic spray gun, dust collecting fan, and damp proof lamp. |
| NO. 2 Auto stone coated section | Features a steel welding framework and chain reciprocating conveying device. |

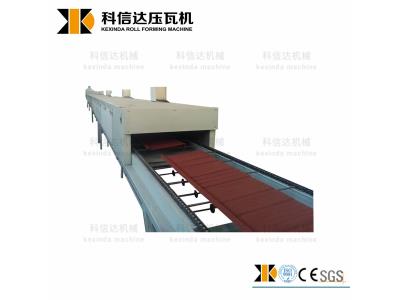

| NO. 3 The first time drying section | Equipped with a steel welding frame and automatic temperature controller. |
| NO. 4 Auto face glue spraying section | Includes automatic pressure spray tank and damp proof lamp. |
