Description

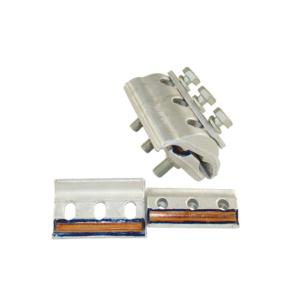

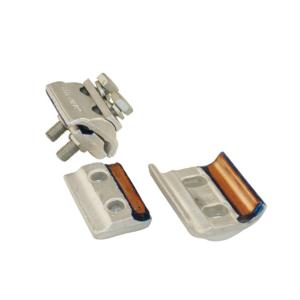

The Parallel Groove Clamp is designed for non-bearing connections and offsets of aluminum stranded wires. This robust clamp is utilized in conjunction with an insulating cover to provide effective protection and insulation. Its versatility makes it an essential component for electrical applications, ensuring secure and reliable connections.
Specifications
| Model | Conductor Cross-section (mm²) | Bolts |
|---|---|---|
| CAPG-A1 | Cu 6-50 Al 16-70 | 1×M8×40 |
| CAPG-A2 | Cu 10-95 Al 25-150 | 1×M8×45 |
| CAPG-B1 | Cu 6-50 Al 16-70 | 2×M8×45 |
| CAPG-B2 | Cu 10-95 Al 25-150 | 2×M8×50 |
| CAPG-B3 | Cu 25-185 Al 35-200 | 2×M10×60 |
| CAPG-C1 | Cu 6-50 Al 16-70 | 3×M8×45 |
| CAPG-C2 | Cu 10-95 Al 25-150 | 3×M8×50 |
| CAPG-C3 | Cu 25-185 Al 35-240 | 3×M10×60 |
| CAPG-C4 | Cu 35-240 Al 35-300 | 3×M10×70 |
