Description

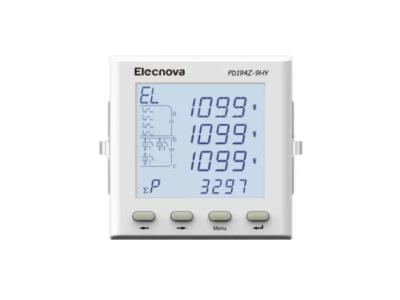

The PD19 AC Digital Multifunction Meter is a high-precision and reliable instrument designed for comprehensive power monitoring, intelligent control, measurement, and assessment in various applications such as power systems, industrial and mining enterprises, public facilities, and intelligent buildings. This advanced device offers a complete suite of functionalities, including full power parameter measurement, electric energy measurement, and power quality monitoring. Equipped with an RS485 communication interface, it supports Modbus RTU and DL/T645 communication protocols, ensuring seamless connectivity.

Features

• Full electricity measurement
• 5-inch large screen LCD display
• 2S level active electric energy metering
• Voltage rise and drop monitoring
• 2-63rd THD monitoring

Application

• All power parameter measurement
• Energy measurement and electrical fire monitoring and control
• Replaces three-phase power meters and three-phase electricity transmitters
• Detection of transformers, generators, capacitors, and electric motors
• Applicable in medium and low pressure systems
• Integration with SCADA, EMS, and DCS systems

Specifications
