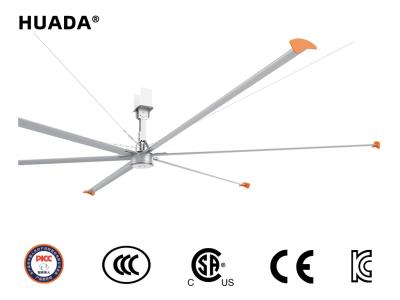

Permanent Magnet Frequency Conversion Large Ceiling Fan
Inquire Now#### **Description**

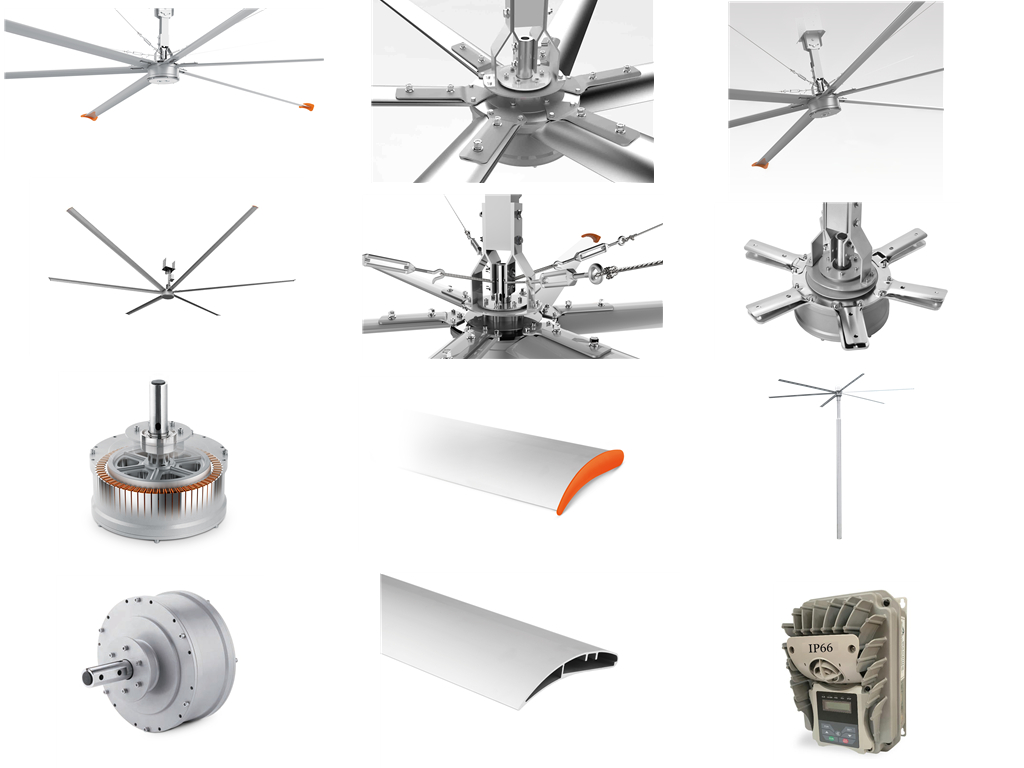

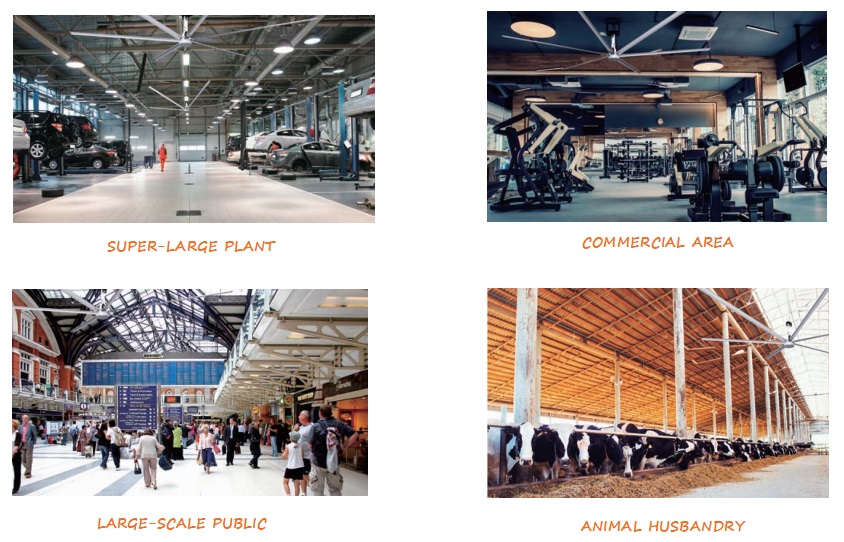

The Huada HDS series Smart Permanent Magnet Large Ceiling Fan is designed to enhance the comfort of various environments while promoting energy efficiency. This innovative ceiling fan features a self-designed variable frequency speed control powered by a high-efficiency permanent magnet external rotor motor. Its compact structure and lightweight design ensure low noise levels, making it ideal for settings such as industrial plants, logistics warehouses, waiting rooms, exhibition halls, and gyms. By pushing a substantial volume of airflow downwards, it creates an effective air circulation system that mimics the refreshing experience of a natural breeze, contributing to overall comfort and ventilation.
#### **Specifications**
| Model | Diameter (m) | Diameter (ft) | Power (KW) | Horsepower (HP) | Voltage (V) | Frequency (HZ) | Air Volume (m³/min) | Rotating Speed (rpm) | Number of Leaves (Pcs) | Noise (dB) | Motor Weight (kg) | Ceiling Fan Weight (kg) | Effective Area (m²) | Coverage Area (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3 | 3 | 10 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 4000 | 120 | 5/6 | 38 | 18 | 35 | 150 | 250 |
| HDS-3.7 | 3.7 | 12 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 5000 | 100 | 5/6 | 38 | 18 | 38 | 230 | 380 |
| HDS-4.3 | 4.3 | 14 | 0.75 | 1 | 220-240/380-460 | 50/60 | 7000 | 90 | 5/6 | 38 | 25 | 46 | 256 | 450 |
| HDS-5 | 5 | 16 | 0.75 | 1 | 220-240/380-460 | 50/60 | 10000 | 80 | 5/6 | 38 | 25 | 49 | 300 | 500 |
| HDS-5.5 | 5.5 | 18 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11000 | 70 | 5/6 | 38 | 48 | 99 | 500 | 900 |
| HDS-6.1 | 6.1 | 20 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11500 | 60 | 5/6 | 38 | 48 | 103 | 600 | 1000 |
| HDS-6.7 | 6.7 | 22 | 1.5 | 2 | 220-240/380-460 | 50/60 | 12000 | 55 | 5/6 | 38 | 48 | 107 | 650 | 1300 |
| HDS-7.3 | 7.3 | 24 | 1.5 | 2 | 220-240/380-460 | 50/60 | 13000 | 50 | 5/6 | 38 | 58 | 118 | 700 | 1500 |
#### **Additional Information**
Other specifications and models can be customized according to customer needs.
