Permanent magnetic lifter
Inquire NowDescription
Permanent Magnetic Lifters are essential tools designed to enhance the clamping efficiency of magnetic steel materials in various industrial applications. Utilizing high-performance rare earth NdFeB material as its core, this lifter operates through a simple mechanism: by pulling the suction cup handle, users can effortlessly switch between engaging and releasing the magnetic grip on workpieces. Its innovative design allows for versatile usage in machinery factories, mold factories, and other machining fields, making it an invaluable fixture for professionals seeking reliable and efficient magnetic solutions.
Specifications
| Model | Lifting Capacity (kg) | Steel Plate | Cylindrical | Length (mm) | Width (mm) | Height (mm) | Handle (kg) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PML-100 | 100 | 50 | 92 | 62 | 69 | 155 | 3.2 | |
| PML-200 | 200 | 100 | 130 | 65 | 69 | 155 | 5.4 | |
| PML-400 | 400 | 200 | 160 | 95 | 95 | 200 | 11 | |
| PML-600 | 600 | 300 | 210 | 120 | 120 | 230 | 20 | |
| PML-1000 | 1000 | 500 | 260 | 150 | 140 | 255 | 40 | |
| PML-1500 | 1500 | 750 | 340 | 150 | 140 | 255 | 48 | |
| PML-2000 | 2000 | 1000 | 400 | 170 | 170 | 320 | 74 | |
| PML-3000 | 3000 | 1500 | 440 | 170 | 170 | 380 | 105 | |
| PML-5000 | 5000 | 2500 | 600 | 230 | 215 | 600 | 248 |
Additional Information
- Core Component: Nd-Fe-B Magnet for enhanced lifting capability.
- Safety Factor: High safety factor with a pulling-out force up to 3.5 times the rated lifting capacity.

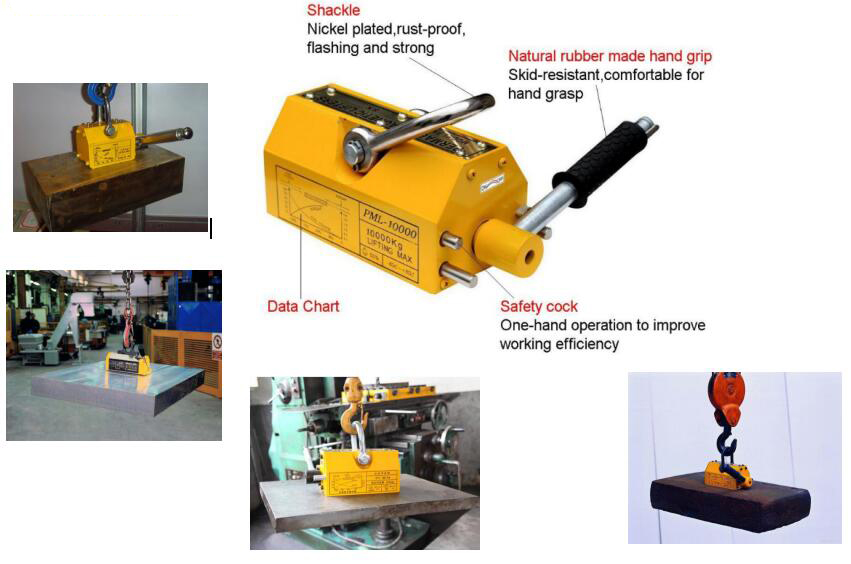

- Design: V-style design at the bottom allows for lifting of both round steel and steel boards.
- Power-Free Operation: Easy to use with no external power source required.
- Optimized Circuit: Minimizes residual magnetism to nearly zero.
- Aesthetic Appeal: Professionally designed appearance enhances attraction.
