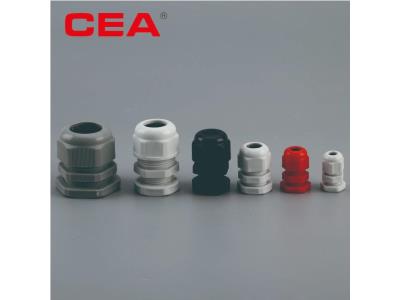

PG CABLE GLAND
Inquire NowDescription
The PG Cable Gland is an exceptionally durable and reliable solution for applications requiring waterproof sealing. With an IP68 rating, this cable gland is ideal for use in enclosure boxes, lamps, and various environments where moisture resistance is essential. Made from UL approved Nylon PA66, the gland stands out for its flammability resistance and robust construction, ensuring long-lasting performance even in harsh conditions.
Its innovative design features a sealing nut that provides a secure “click” sound upon closure, allowing for easy re-opening while firmly holding the cable in place. The PG Cable Gland is resistant to salt water, weak acids, alcohol, oils, greases, and common solvents, making it a versatile choice for multiple industries.
Available in a range of colors, including black, grey, white, and red, this product can also be customized upon request to meet specific needs.
Specifications
| Attribute | Description |
|---|---|
| Thread Types: | PG, Metric, G, and NPT thread. |
| Materials: | UL approved Nylon PA66 (Flammability UL 94V-2), EPDM rubber for B.D parts (optional high-temperature rubber available). |
| Protection Degree: | IP68 |
| Working Temperature: | -40℃ to 100℃ |
| Features: | Excellent sealing design, wider cable range compatibility, and resistance to various chemicals. |
| Available Colors: | Black, grey, white, red, and other colors upon request. |
Additional Information
- Ideal for applications requiring waterproof sealing.
- Contact for any custom color requests or further inquiries.
