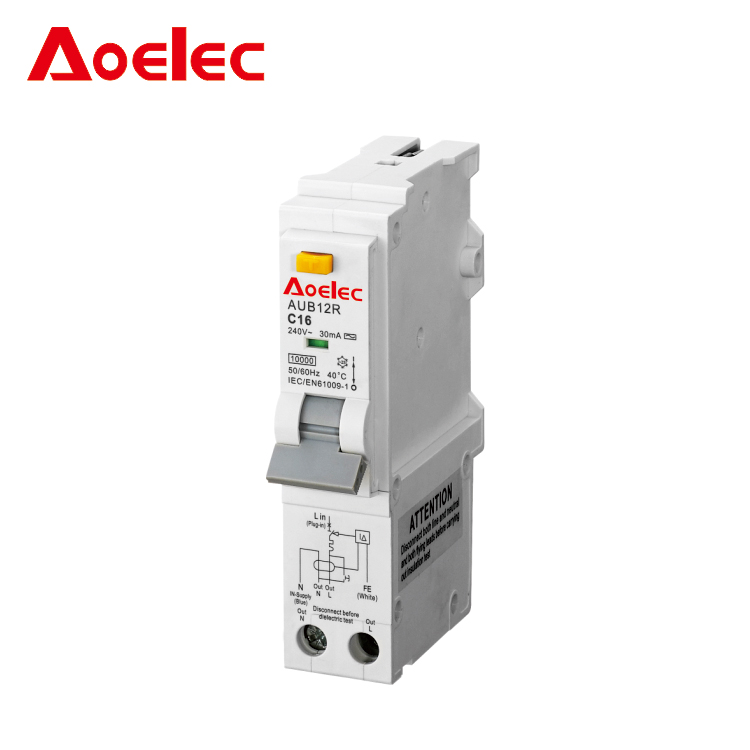

Plug-in RCBO
Inquire NowDescription
The Plug-in RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is a reliable electrical component designed to enhance safety in electrical installations. This advanced device effectively protects circuits from overloads and residual current faults, ensuring peace of mind for users. With its user-friendly Din Rail mounting design, installation is straightforward, making it an excellent choice for both professional electricians and DIY enthusiasts.
Built with high-quality PA66 material, the RCBO is fire resistant and comes with certifications including Semko, CB, and CE, ensuring compliance with international safety standards. Available in various ratings, it caters to diverse operational needs, making it a versatile solution for protecting electrical systems.
Specifications
| Attribute | Details |
|---|---|
| Place of Origin | Zhejiang, China |
| Brand Name | Aoelec |
| Model Number | AUB12R |
| Type | Residual Current |
| Poles Number | 1P+N |
| Certificate | Semko, CB, and CE |
| Enclosure | PA66 |
| Fire Resistant | Yes |
| Installation | Din Rail mounting |
| Supply Ability | 120,000 Piece/Pieces per Month |
| Packaging Details | 1 piece/inner box, 40 inner boxes/carton. The carton is strong enough for air and sea shipment. Colorful box will be designed according to your requirement. |
| Port | Ningbo/Shanghai |
Technical Data
| Attribute | Details |
|---|---|
| Rated Voltage | 230/240VAC |
| Rated Current | 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated Residual Current | 10mA, 30mA, 100mA, 300mA |
| Type of Residual Current Tripping | Type A, Type AC |
| Rated Frequency | 50/60Hz |
| Rated Short-circuit Capacity | 10kA |
| Tripping Characteristic | B, C |
| Index of Protection | IP20 |
| Terminals | 1-16mm² & 1-10mm² |
| Mechanical Endurance | 10,000 times |
| Electrical Endurance | 4,000 times |
| Ambient Temperature | -25℃ to +55℃ |
| Storage Temperature | -40℃ to +70℃ |
| Mounting Standard | EN60715 |
| Standard Compliance | IEC61009-1 |
Additional Information
About Us:
Aoelec Electrical was established in 2003, with a team of 50 office staff and 240 skilled workers. Our products are distributed across more than 30 countries worldwide, ranging from the Middle East to South America, Europe, Australia, Southeast Asia, and North Africa. We are committed to quality and safety, with our products holding KEMA, TUV, SEMKO, CB, and CE certifications.
