pneumatic clutch 2700N.m customized factory supply of different pneumatic clutch vacuum pumps
Inquire NowDescription

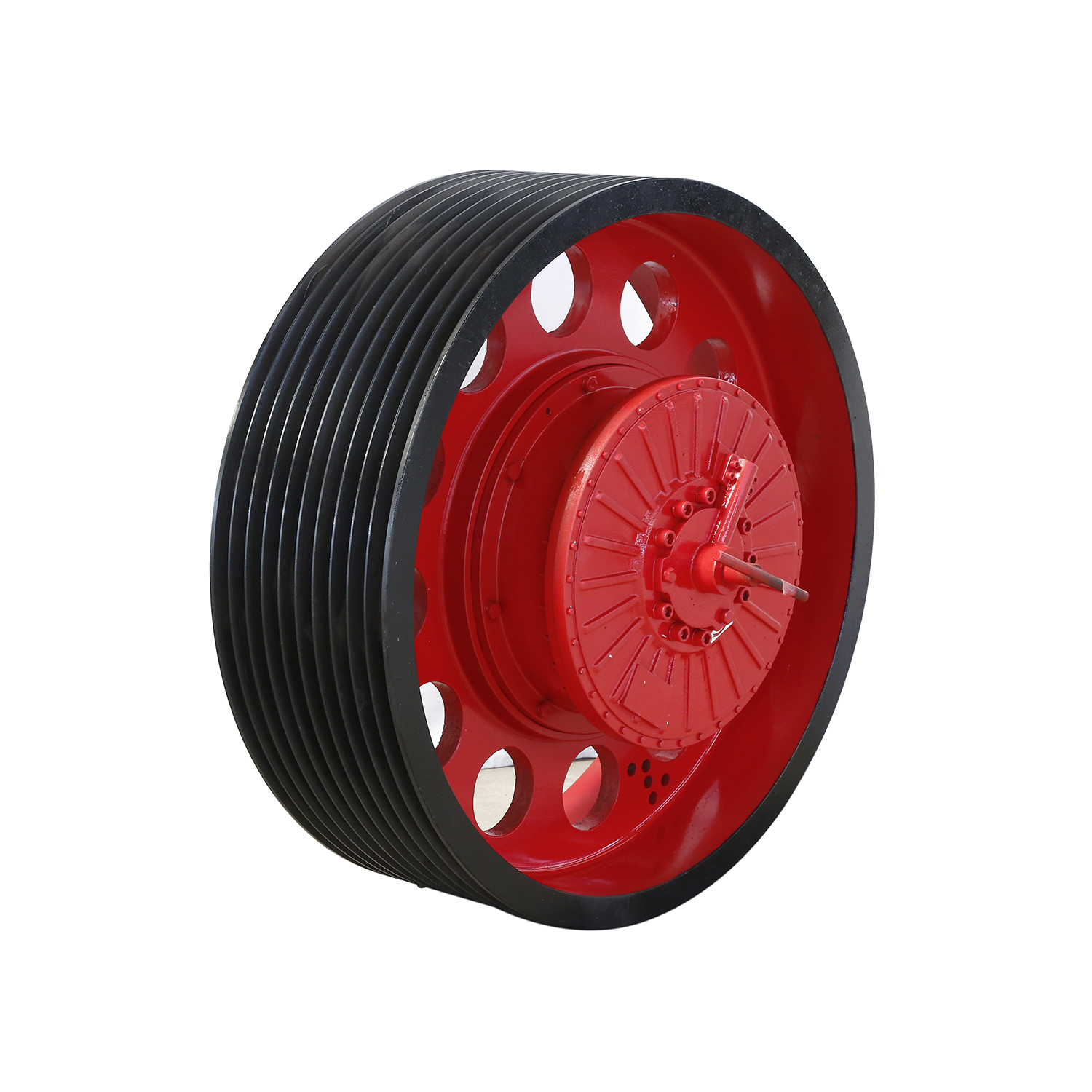

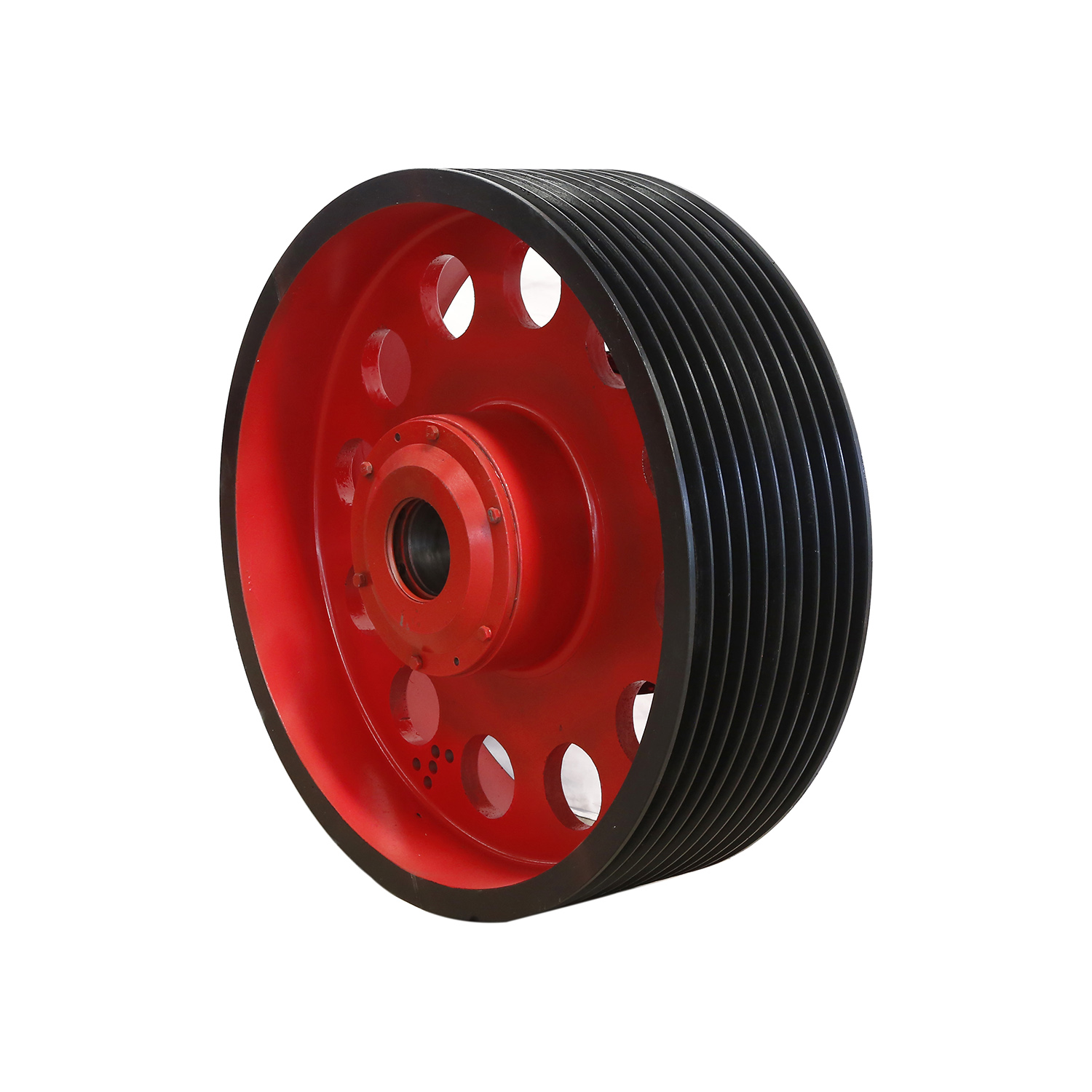

The pneumatic clutch 2700N.m is a highly efficient and customizable solution designed for various industrial applications, including oil drilling, machinery, and forging. This patented ZQL type axial pneumatic clutch replaces traditional manual clutches with a compact and lightweight design, allowing for direct mounting on the input shaft of reducers or motor shaft extensions. Its remote control capability enhances operational efficiency.
Available in eight models with torque transmission options of 650, 2700, 5900, 8500, 12000, 13000, 16500, and 19500, the pneumatic clutch can be easily matched with standard JZQ reducers and other non-standard gearboxes. The ZQL axial pneumatic clutch is offered in two variants: the diaphragm type, known for its compact structure, low inertia, and quick engagement, and the piston type, which provides high torque and significant wear compensation for friction plates. This new generation of pneumatic clutches improves upon older models by enhancing reliability, service life, and heat dissipation, making it an ideal choice for the brick and tile industry and beyond.
Specifications
| Feature | Details |
|---|---|
| Torque Transmission | 650, 2700, 5900, 8500, 12000, 13000, 16500, 19500 N.m |
| Type | Diaphragm and Piston |
| Applications | Oil drilling, machinery, forging, fishing |
| Mounting | Input shaft of reducer or motor shaft extension |
Additional Information
The new generation pneumatic clutch significantly improves upon its predecessors by addressing issues like cumbersome dismounting and poor heat dissipation. This results in enhanced reliability and a longer service life, ensuring optimal performance in demanding industrial environments.
