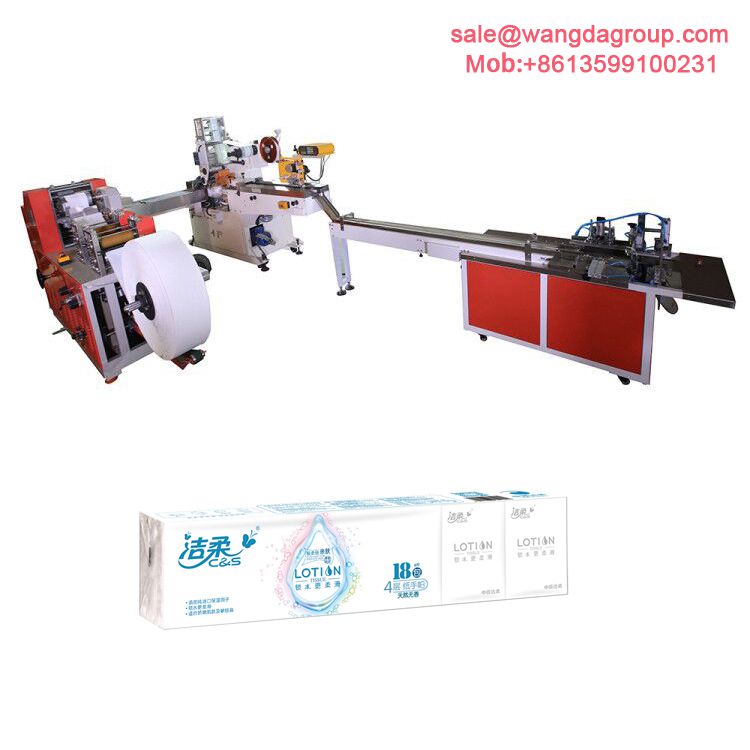

Pocket Tissue Production Line
Inquire NowDescription
The Pocket Tissue Production Line, model WD-HT-PL200-210I, is designed to efficiently produce a variety of tissue products including pocket tissues, mini facial tissues, handkerchief tissues, and standard pocket tissues. Utilizing advanced technology sourced from Germany and Italy, this machine integrates PLC and inverter systems to achieve high-speed production with remarkable automation. The Pocket Tissue Production Line not only minimizes labor costs but also ensures high-quality finished products, making it an ideal choice for both novice and experienced manufacturers.
Specifications
| Attribute | Details |
|---|---|
| Folding Speed | 700-1200 pcs/min (depends on lanes) |
| Specification of Material | 210 or 420 mm; 13-15 gsm (3 layers); 16-20 gsm (2 layers) |
| Max Dia. of Material | 1200 mm (other sizes available on order) |
| Size of Finished Product | Standard Type: 106 mm x 52 mm x 26 mm; Mini Type: 72 mm x 52 mm x 26 mm |
| Embossing | Steel to woolen, steel to rubber, steel to steel (order required) |
| Machine Power | 12-15 kW, 380V 50Hz 3Phase (other voltages available on order) |
| Capacity (Packages/min) | 25-90 packets/min |
| Air Pressure | 0.5 MPa (to be prepared by buyer) |
| Packing Film Material | CPP, PE, PE/CPP, PT/PE, etc. |
| Dimension (L×W×H) (mm) | 3660 × 2750 × 1920 mm |
| Overall Weight (kg) | 2-3 T |
Additional Information
- This production line is suitable for both beginners and professionals in the pocket tissue manufacturing industry.
- It features easy operation, promoting high automation and efficiency in tissue production.
