Polymer Li-Ion battery In-line detection
Inquire NowDescription

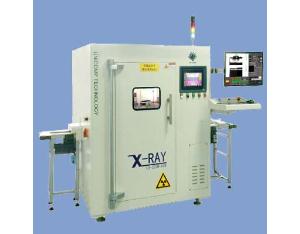

Introducing our advanced in-line polymer Li-Ion battery X-Ray detection equipment, designed for high efficiency and precision in quality control processes. Featuring a robust 100KV X-Ray tube and a high-resolution image detector, this innovative system ensures maximum productivity with a remarkable throughput of 60 parts per minute (PPM) and an impressive detecting accuracy of ± 0.06 mm.
The modular design enhances the system’s expansibility, allowing easy upgrades and modifications as your production needs evolve. With automatic battery loading and unloading capabilities, this equipment operates with minimal human intervention, significantly reducing the risk of human error. The automatic sorting feature distinguishes between qualified and non-conforming products, facilitating unattended operation and consistent quality assurance.
Data collection and analysis are seamlessly integrated with SPC charting, enabling real-time monitoring and analysis for optimal product quality stability and reliability.
Specifications
| Feature | Details |
|---|---|
| X-Ray Tube Voltage | 100KV |
| Detection Accuracy | ± 0.06 mm |
| Productivity | 60 PPM |
| Design | Modular with good expansibility |
| Operation | Unattended automatic sorting |
| Data Analysis | SPC chart, real-time monitoring |
Additional Information
Inspection Images:
Technical Parameter:
