Description

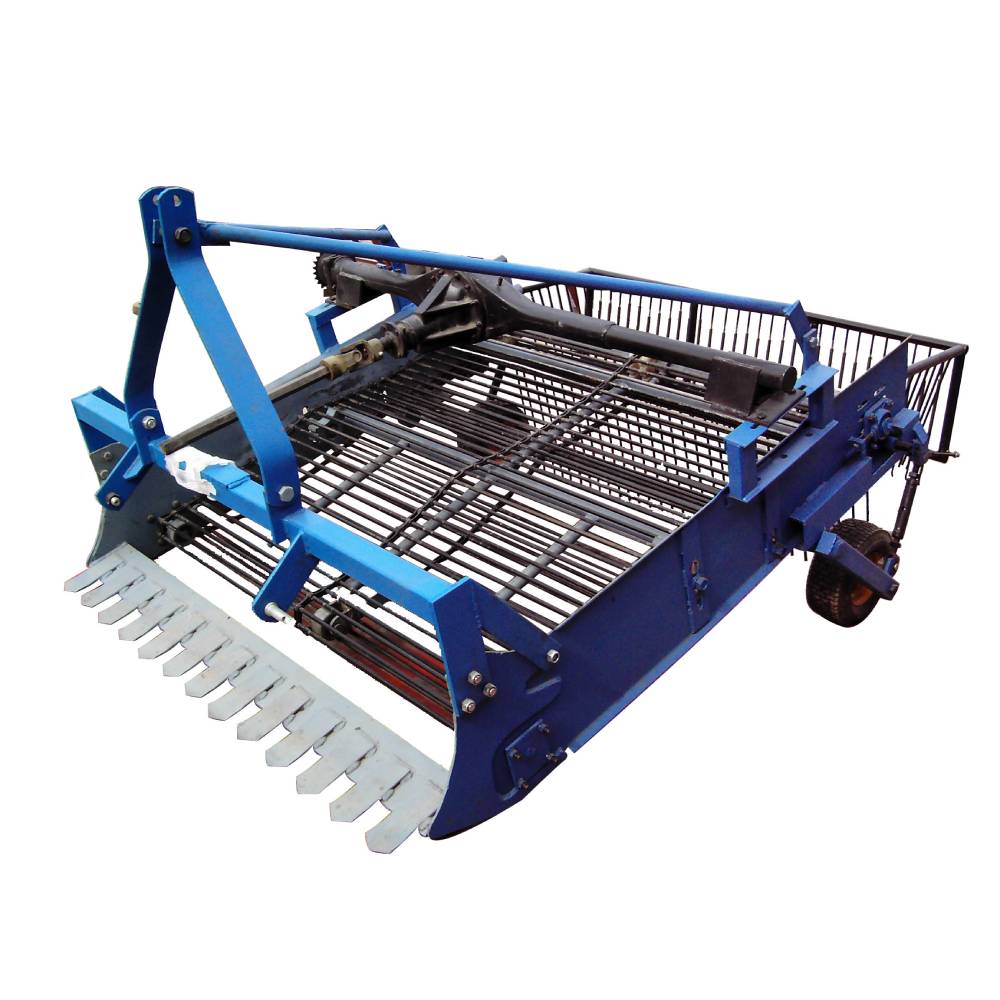

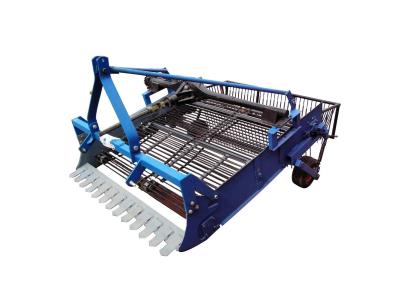

The 4U series potato harvester is a robust and efficient machine designed for use with tractors equipped with rear or side power output shafts. This innovative harvester operates by excavating the soil and utilizing a shovel mechanism to collect potatoes, which are then separated from the soil through a vibrating screen. Ideal for both small-scale and commercial potato farming, this machine enhances productivity while ensuring minimal crop damage.
Specifications
| Type | Row No./Function | Row Spacing (cm) | Productivity (mu/h) | Total Weight (kg) | Matched Power (hp) | Working Depth (cm) | Working Width (m) | Overall Dimension (cm) |
|---|---|---|---|---|---|---|---|---|
| 4U-1 | Single (scattering) | 55-80 | 3-5 | 180 | 22-35 | 25 | 0.65 | 240*90*90 |
| 4U-1A | Single (match hand tractor) | 50-65 | 3-5 | 100 | 8-15 | 20 | 0.56 | 90*70*70 |
| 4U-1B | Single (bunched dumping material) | 55-80 | 3-5 | 210 | 22-35 | 25 | 0.65 | 240*90*90 |
| 4UZ-1 | Single (vibrated scattering) | 55-80 | 3-5 | 120 | 22-35 | 25 | 0.65 | 120*100*75 |
| 4U-2/2B | Double scattering (bunched dumping material) | 55-80 | 5-8 | 400/500 | 50-80 | 25 | 1.65 | 280*220*100 |
Additional Information
For optimal performance, ensure your tractor is compatible with the harvester’s power requirements. Regular maintenance is advised to keep the machine functioning efficiently and to extend its lifespan.
