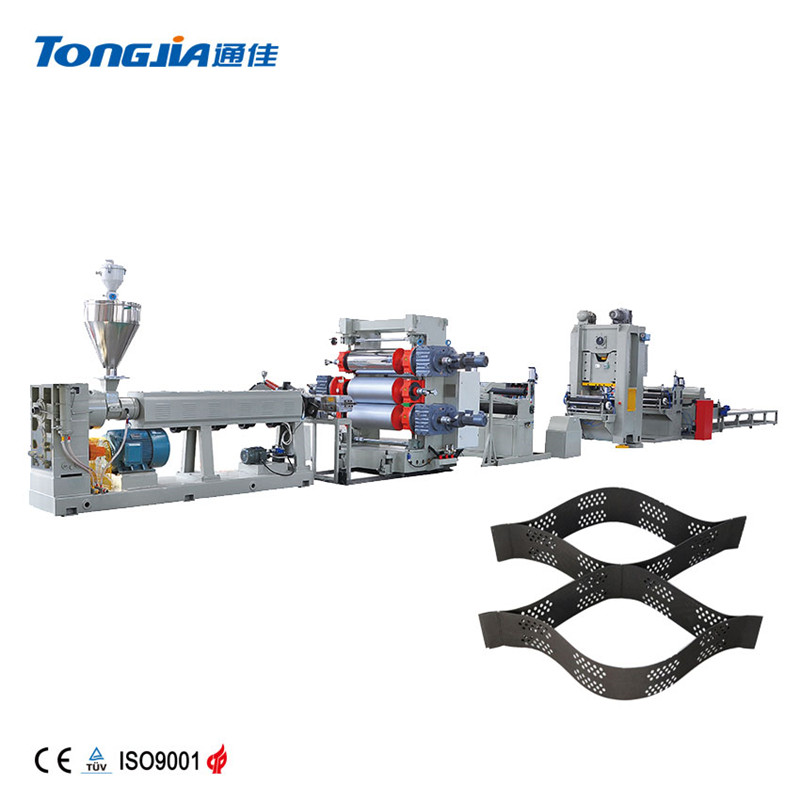

PP/PE Plastic Geocell Production Line
Inquire NowDescription
The PP/PE Plastic Geocell Production Line is an innovative solution designed for the manufacturing of high-tensile geosynthetics. This advanced equipment utilizes a reinforced thermoplastic sheet processed through an ultrasonic welding machine, creating a unique three-dimensional structure with alveolate designs. The geocell is engineered to be filled with various materials such as clay, sand, and concrete, resulting in a robust structure that significantly enhances load-bearing capacity and effectively distributes forces on roadbeds. Ideal for applications in railway reinforcement, roadbed strengthening, field bank protection, and earth retention wall construction, this production line is essential for preventing collapses and soil erosion.
Specifications
| Attribute | Measurement | Model JG-TGGC90 | Model JG-TGGC120 |
|---|---|---|---|
| Raw Material | PP/PE | PP/PE | PP/PE |
| Sheet Thickness | mm | 1.1, 1.2, 1.5, 1.8 | 1.1, 1.2, 1.5, 1.8 |
| Height of Geocell | mm | 50, 75, 100, 150, 200 | 50, 75, 100, 150, 200, 300 |
| Welding Distance | mm | 340-800 | 340-800 |
| Unfolding Area | m² | 4 × 5 | 4 × 5 |
| Dimensions (L×W×H) (approx) | m | 28 × 5 × 3 | 30 × 8 × 3 |
Additional Information
- The geocell’s unique structure helps prevent collapse and soil loss in various construction applications.
- Suitable for a variety of environmental conditions, providing durability and strength.
