PR 202 220Vac 380Vac Electronic Overload Relays 3-phase Motor Protection Relay
Inquire NowDescription

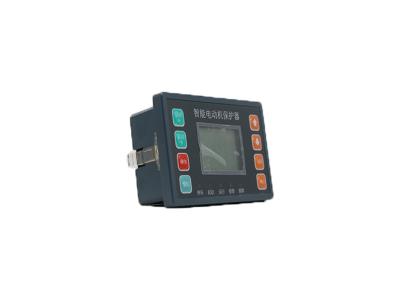

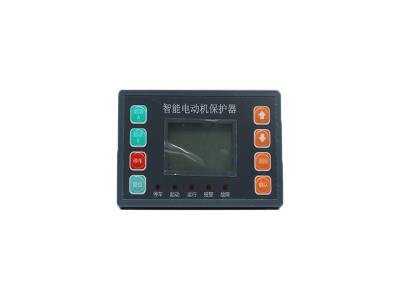

The PR 202 Electronic Overload Relay is a robust solution designed for the continuous monitoring of 3-phase power lines, providing essential motor protection against abnormal conditions. Compatible with motors of various sizes and types, this relay ensures optimal performance and safety. When abnormal values are detected, the PR 202 automatically triggers a release switch to shut down the circuit, preventing potential damage.

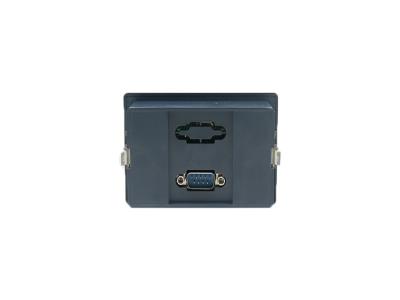

Equipped with an optional RS485 communication port, it enables seamless data upload of monitored parameters and alarm statuses to a remote control system, enhancing operational efficiency and safety.
Specifications
| Electrical Parameters | Details |
|---|---|
| Auxiliary Power | 85-265Vac/dc |
| Power Consumption | <4 VA |
| Insulation Resistance | >100MΩ |
| Relays | 5A/250VAC, 5A/30VDC (NO contact) |
| Motor Rated Voltage | AC220V / AC380V / AC660V |
| Motor Rated Current | 0.5-200A use internal CT 200A-820A use external ../5A CT |
| Impulse Withstand Voltage | 4 kV |
| Measuring Accuracy – Current | ± 0.5% @ 10~120% Ie |
| Measuring Accuracy – Voltage | ± 0.5% @ 10~150% Ue |
| Measuring Accuracy – Temperature | ± 1% @ 0.1~30 K |
| Analog Output | ± 1% (4 ~ 20mA) |
| Comm Port | RS485 MODBUS-RTU |
| Digital Output | Regular 2DO, max 6DO |
| Analog Output | 1AO |
| SOE | 10 |
| Working Temperature | -10°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Relative Humidity | < 93% RH |
| Elevation | Less than 3000 m |
| Standard Reference | IEC 60947-1, IEC 60947-4 |
| Electrostatic Discharge | Severity: level III |
| Surge | Severities: level III |
| Voltage Characteristics | Between two of the power/input/output: AC2kV/1min |
Additional Information
Optional accessories include a leakage sensor. The PR 260 model features an independent communication module and I/O module with configurable DO trip functions. The relay body provides 15Vdc loop power for specific configurations.
