Description

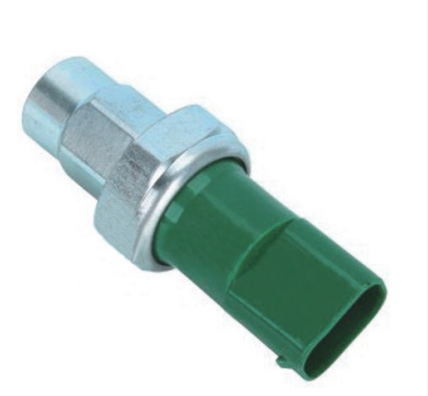

The Pressure Switch is a vital component designed for precise control in refrigeration systems. This high-quality switch ensures optimal performance by monitoring pressure levels and activating or deactivating the system as needed. With its robust construction, it is built to withstand demanding environments, making it an essential part of HVAC systems. The switch operates effectively with R-134a refrigerant and features a female thread size of 7/16-20 UNF, ensuring easy installation and compatibility with various systems.
Specifications
| Attribute | Details |
|---|---|
| OE# | 64 53 8 391 639 |
| Thread Size | 7/16-20 UNF Female |
| High Pressure (HP) | 32 kg/cm² Off |
| Medium Pressure (MP) | 20 kg/cm² On |
| Low Pressure (LP) | 1.2 kg/cm² Off |
| Refrigerant Type | R-134a |
