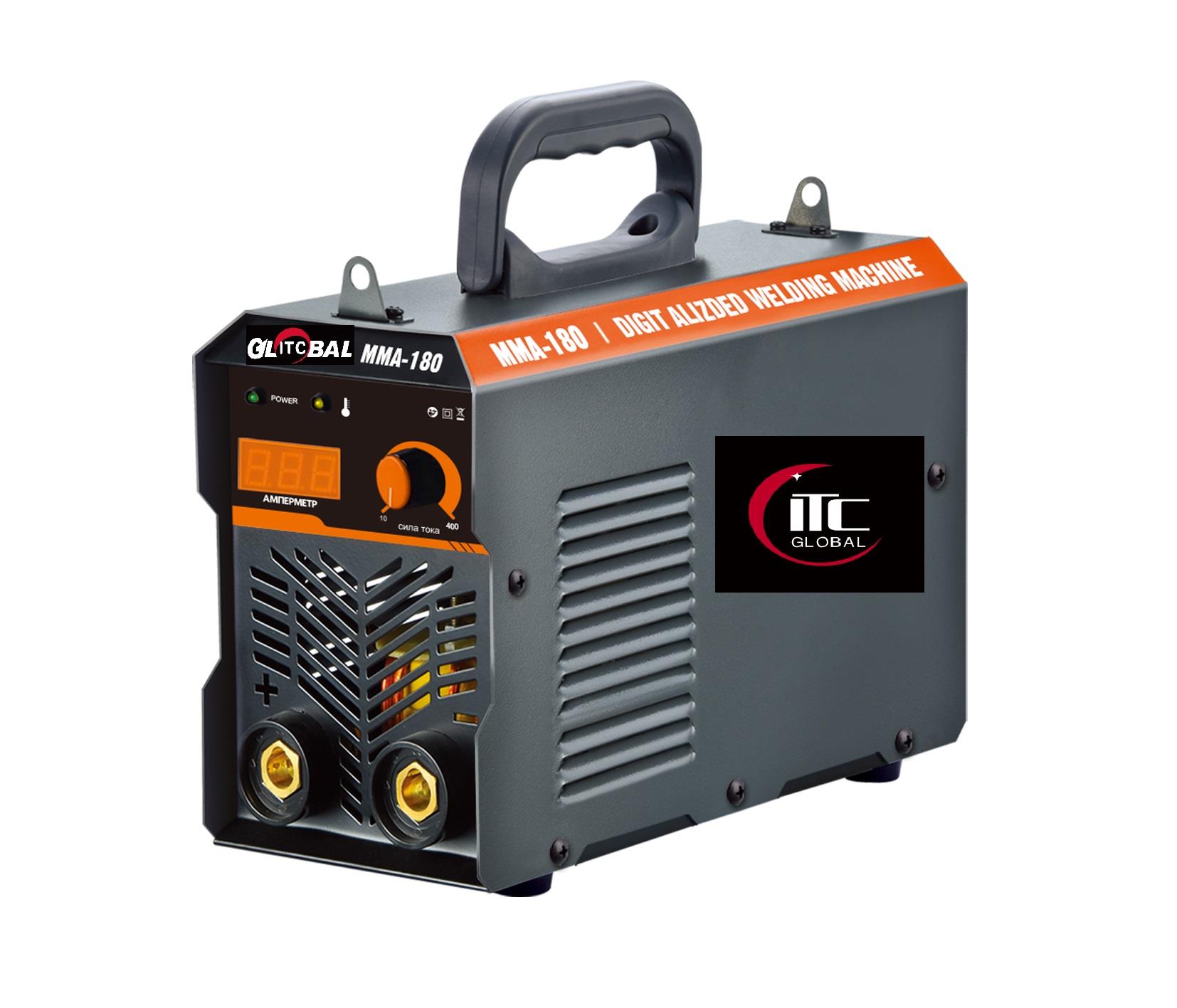

PTWM-MMA180 Professional IGBT Electric Digital Inverter Welding Machine/Welder
Inquire NowDescription
The PTWM-MMA180 Professional IGBT Electric Digital Inverter Welding Machine is a state-of-the-art welding tool designed for efficiency and ease of use. This CE-approved machine delivers outstanding performance, with a current output adjustable from 20A to 180A, allowing you to tackle various welding tasks with precision. The multifunction control panel simplifies operation, while the built-in indicator light enhances usability. Whether you’re working with angle iron, pipes, or flat iron, this versatile machine supports electrodes ranging from 1.6mm to 5.0mm in diameter, making it ideal for both professional and home use. Lightweight and compact, the PTWM-MMA180 is easy to transport, ensuring you can take your welding projects wherever you need them. With features like forced air cooling, thermal overload protection, and anti-stick protection, this machine guarantees safe and reliable operation. Trust in the PTWM-MMA180 for high-quality results and long-term durability.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 1PH 220V-230V; 110V-120V |
| Frequency | 50-60HZ |
| Rated Input Power Capacity | 5.7KW |
| Current Range | 20-180A |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65 +/- 5V |
| Rated Duty Cycle | 30% |
| Usable Electrode | 1.6-5.0mm |
| Protection Degree | F |
| Insulation Class | IP21S |
| Accessories | Welding holder (300A), earth clamp (300A), mask, steel brush |
Additional Information
- Easy to use with intuitive controls making it suitable for beginners.
- Efficient design for quick heating and energy-saving operation.
- Portable and compact, perfect for home use and job sites.
- Ensure a 13amp fused plug is available before use.
