pulp molding tableware machine
Inquire NowDescription

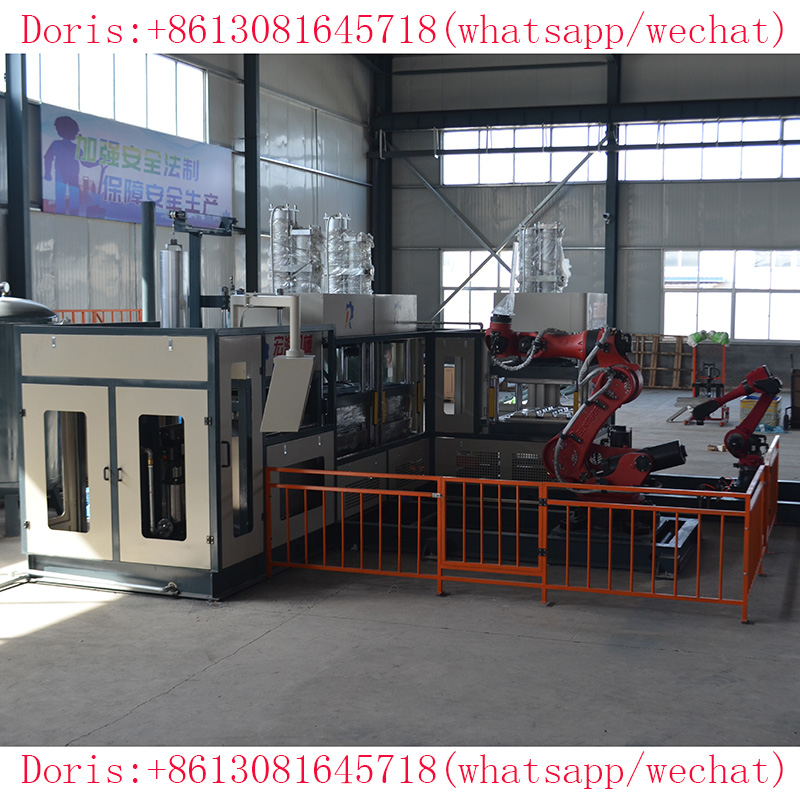

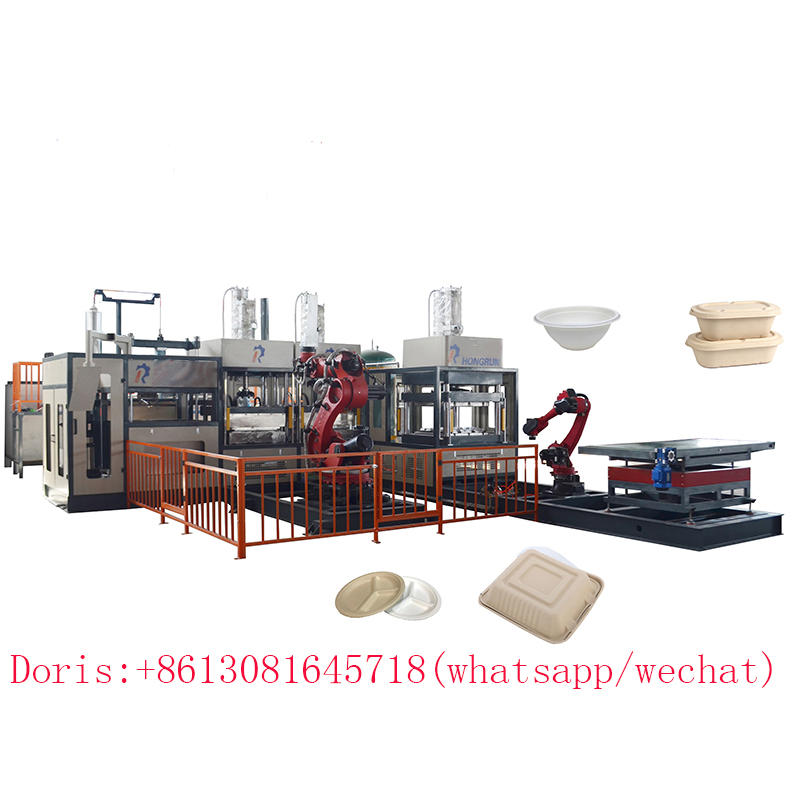

The pulp molding tableware machine is a fully automatic robotic system designed for efficient production of disposable tableware. This advanced pulp molding production line integrates a sophisticated molding system that ensures high performance and cost-effectiveness. With features such as flexible and stable operation, safe maintenance, and modern remote monitoring, this machine is perfect for industries such as food processing, catering, and food supply. It produces a variety of pulp-molded products including fast food boxes, plates, soup bowls, and meat trays, utilizing eco-friendly raw materials like wood pulp and straw pulp.
Specifications
| Attribute | Details |
|---|---|
| Machine Composition | Six-axis robot (one set), four-axis robot (one set), reciprocating molding machine (one set), hot pressing machine (two sets), automatic trimming machine, automatic counting stacker |
| Raw Material | Plant fiber pulp board of reed, straw, bagasse, bamboo, wood, etc. |
| Template Size | 880 x 880 mm |
| Heating Method | Thermal oil heating or electric heating or steam heating |
| Maximum Boost Pressure | 28 tons, using gas-liquid boost |
| Product Transfer Method | External robot automatic transfer |
| Control System | PLC + touch screen control, main electrical components adopt Siemens brand |
| Design Capacity | 600 kg / day |
| Maximum Height of Products | 100 mm |
| Remarks | The above parameters are for reference only and may change due to ongoing technological development. |
Additional Information
The pulp molding equipment provided is non-standard and can be customized based on specific customer needs. It involves processes such as crushing, screening, grinding, and chemical treatment to prepare the pulp, which is then molded and processed to create high-quality, eco-friendly disposable tableware.
