PV Combiner Box with 4 String AC DC Combiner Box Solar 500V 4-1 PV Combiner Box 4 String
Inquire NowDescription
MOREDAY 600V 1000V DC Combiner Box for Solar PV is a robust and reliable solution designed for the efficient integration of solar panels with inverters. This combiner box is strategically positioned between solar panels and the solar inverter, ensuring optimal functionality and safety in your solar energy system. It features advanced protective mechanisms, including over-voltage and over-load protection, which significantly extend the operational lifespan of solar installations. With over 15 years of expertise in the electrical industry, MOREDAY offers a comprehensive range of solar PV combiner boxes tailored for residential, commercial, and utility-scale renewable energy projects.
This product is housed in an IP65 waterproof enclosure, ensuring durability in various environmental conditions. It includes built-in UL98B listed DC switchgears and can accommodate configurations ranging from 1 to 24 strings, customizable according to IEC 62109-1 standards and certified with CE and TUV. The combiner box also provides safeguards against lightning strikes and incorporates real-time detection and long-distance communication capabilities, making it an ideal choice for modern solar energy systems.
Backed by a 2-year warranty, the MOREDAY DC Combiner Box is available in 600V, 1000V, and 1500V configurations, making it a versatile option for diverse applications.
Specifications
| Attribute | Details |
|---|---|
| System Maximum DC Voltage | 600/1000V |
| Maximum Input Strings | 4 |
| Maximum Input Current for Each String | 15A |
| Maximum Output Switch Current | 20A/32A |
| Number of Inverter MPPT | 1 |
| Number of Output Strings | 1 |
| Nominal Discharge Current | 20KA |
| Maximum Discharge Current | 40KA |
| Voltage Protection Level | 2.8KV/3.8KV |
| Maximum Continuous Operating Voltage Uc | 630V/1050V |
| SMC4 Connectors/DC Fuse/DC Surge Protector | Standard |
| Monitoring Module/Preventing Diode | Optional |
| Box Material | PC/ABS |
| Installation Method | Wall Mounting Type |
| Operating Temperature | -25°C to +55°C |
| Permissible Relative Humidity | 0-95%, no condensation |
Additional Information
No additional information is available.

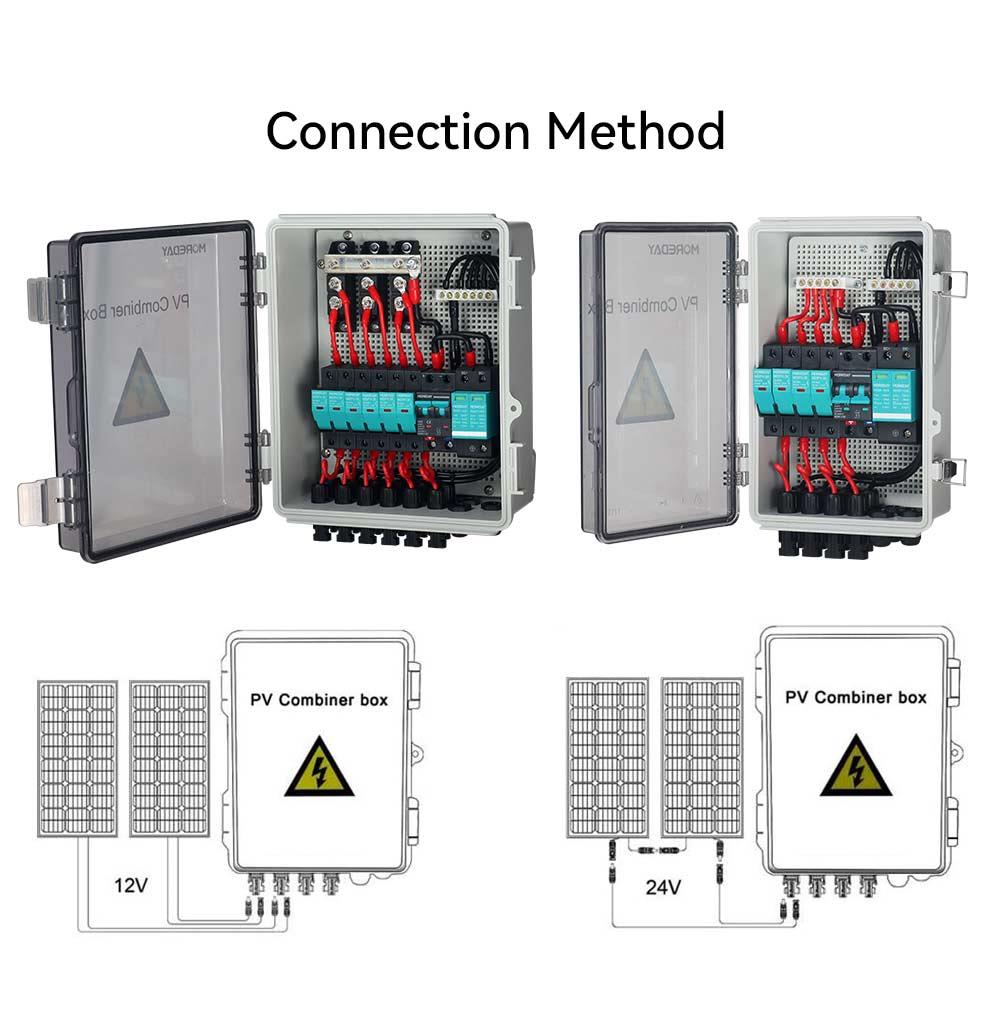

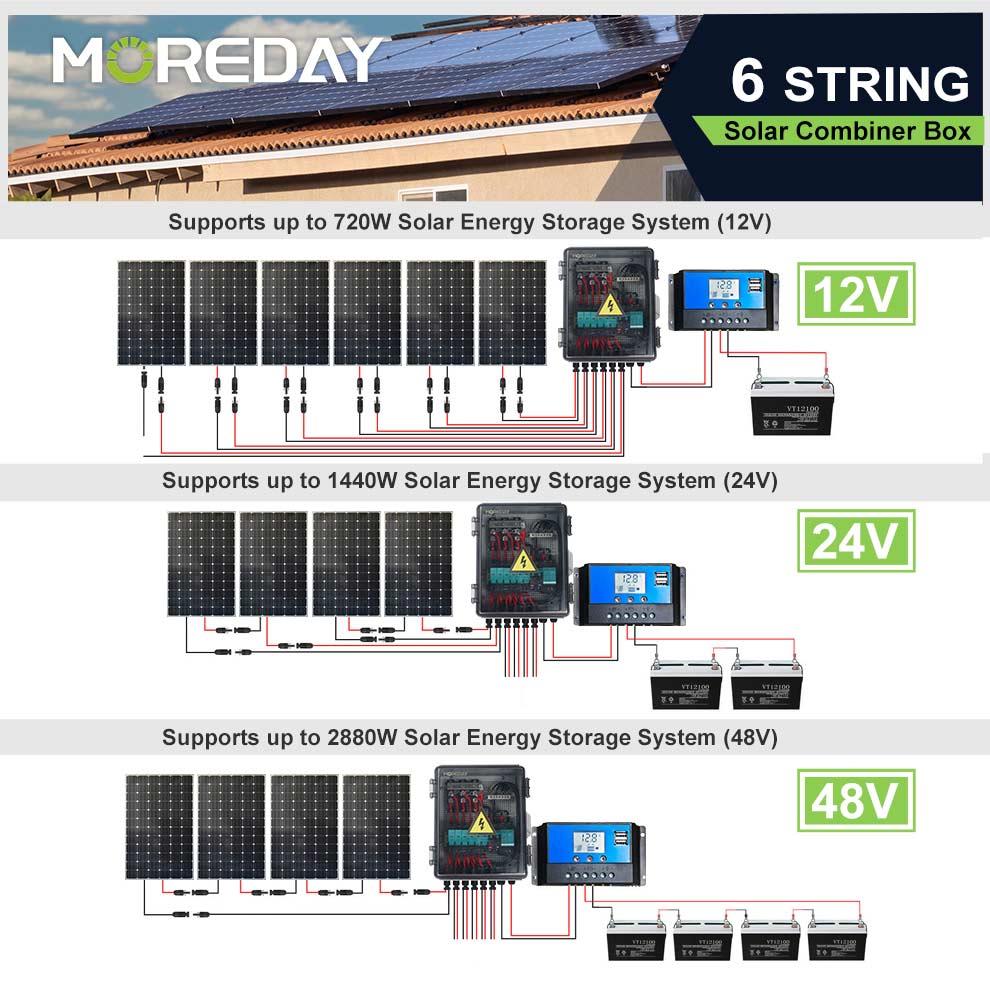

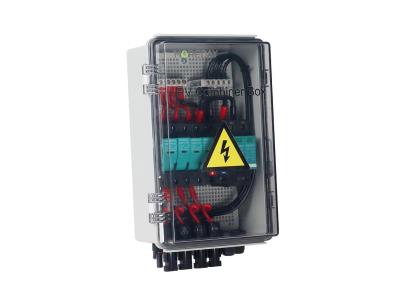

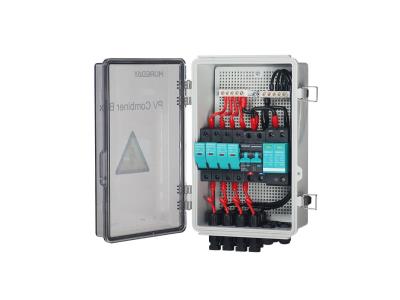

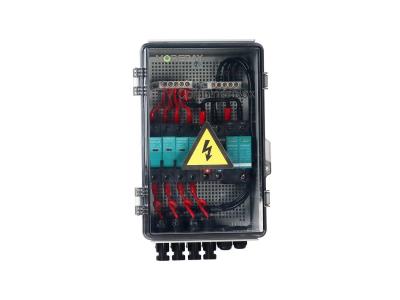

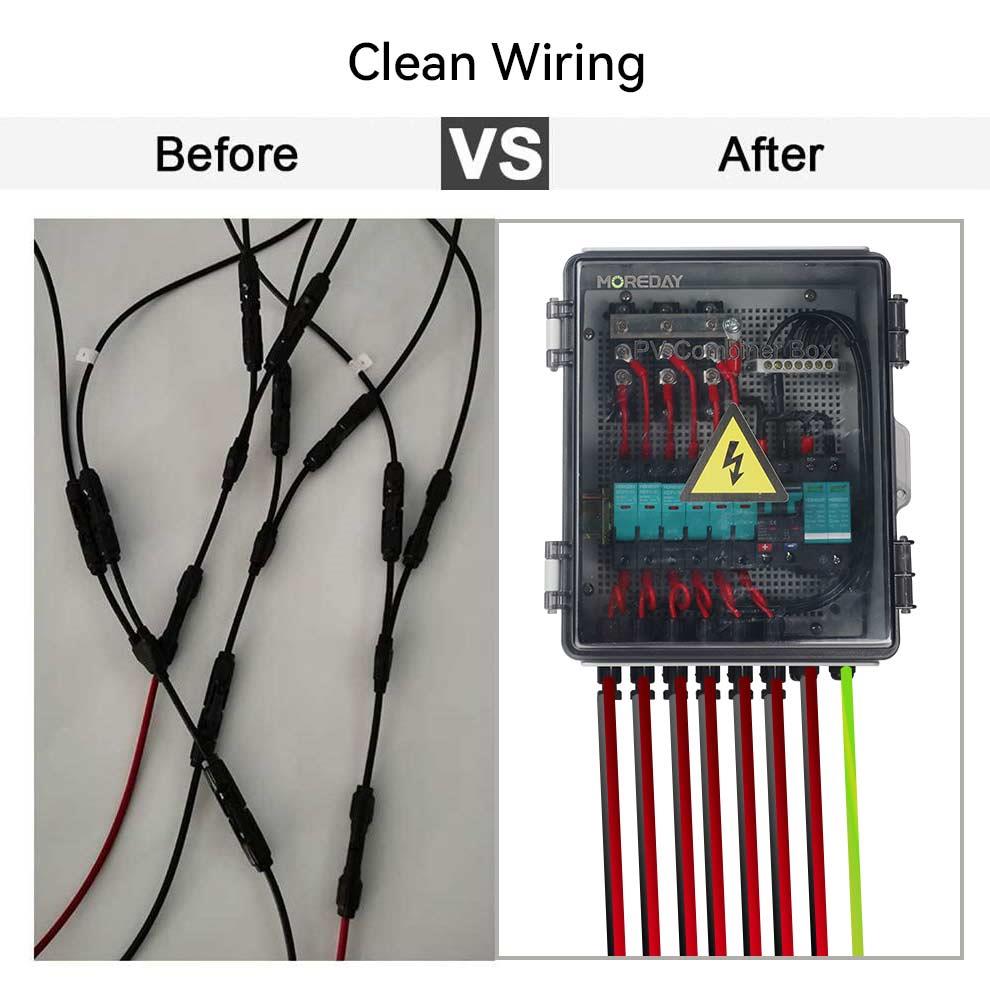

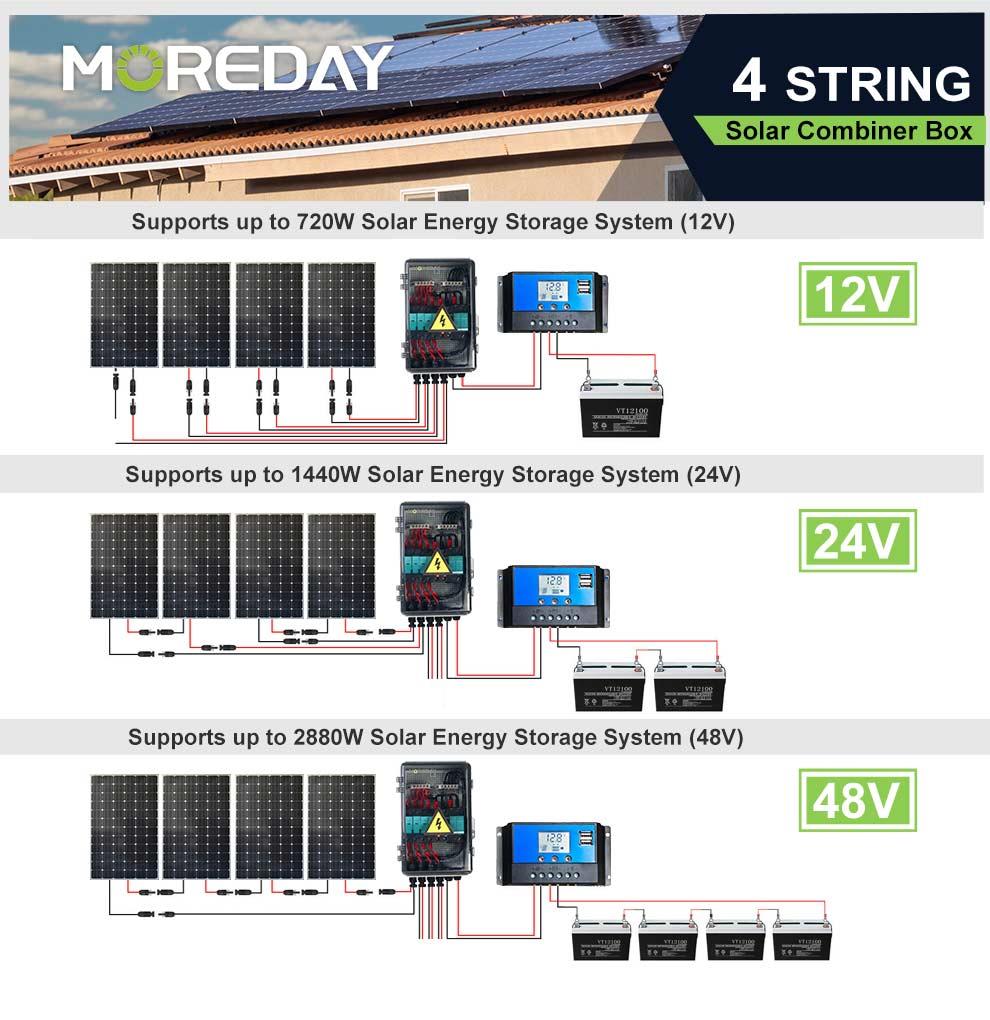

Detailed Photos
