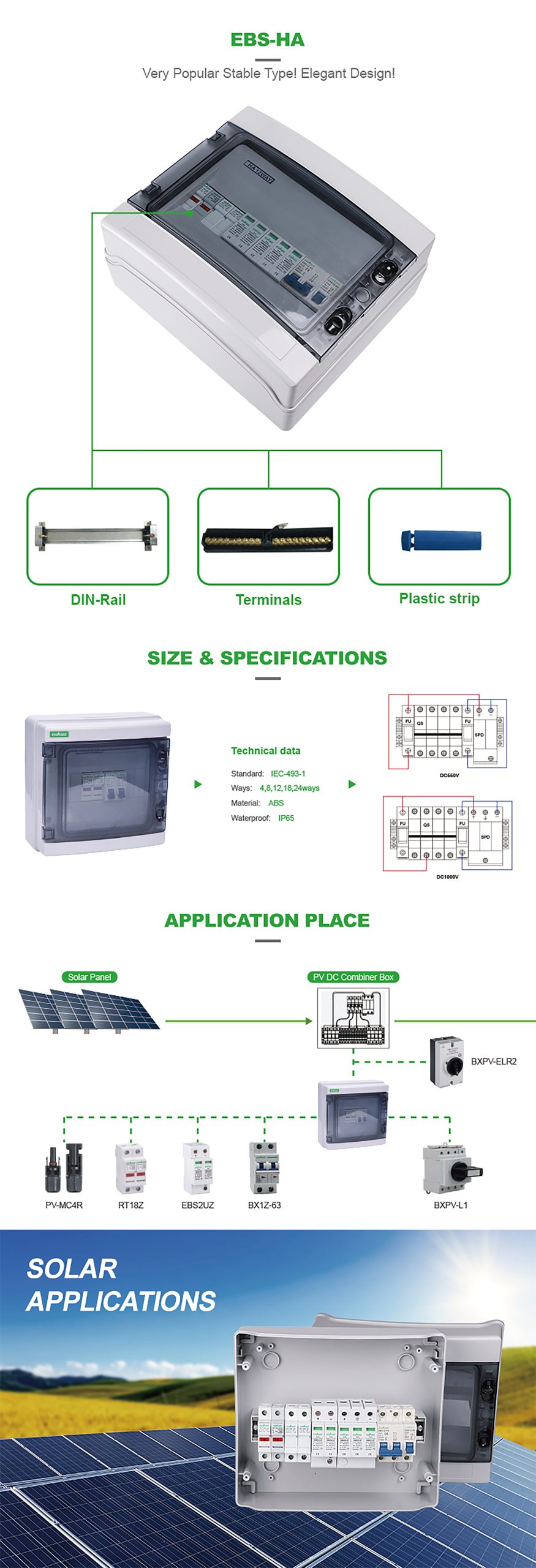

PV Solar box IP65 EBS-HA
Inquire Now
EBS-HA series switch IP65 distribution box is applied to terminal of AC 50Hz (or 60Hz), rated operating voltage up to 400V and rated current up to 63A, equipped with various modular electric for functions of electric energy distribution, control (short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.
This switch distribution box is also named as consumer unit, DB box in short.
Water-proof of plastic box
Function
EBS-HA series switch IP65 distribution box is applied to terminal of AC 50Hz (or 60Hz), rated operating voltage up to 400V and rated current up to 63A, equipped with various modular electric for functions of electric energy distribution, control (short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.
This switch distribution box is also named as consumer unit, DB box in short.
Technical Parameter
|
Transparent door Max. Rated current up to 63A |
|||||
|
Module Number |
Number bar holes |
Earth bar holes |
Type Code |
||
|
1 |
2 |
3 |
|||
|
4 ways |
4Xφ5 |
3Xφ5 |
EBS-HA |
||
|
6 ways |
6Xφ5 |
3Xφ5 |
EBS-HA |
||
|
8 ways |
8Xφ5 |
4Xφ5 |
EBS-HA |
||
|
12 ways |
12Xφ5 |
6Xφ5 |
EBS-HA |
||
|
18 ways |
18Xφ5 |
9Xφ5 |
EBS-HA |
||
|
24 ways |
24Xφ5 |
9Xφ5 |
13Xφ5 |
EBS-HA |
|
|
36 ways |
36Xφ5 |
9Xφ5 |
9Xφ5 |
13Xφ5 |
EBS-HA |
Main Technical Data
Equipped with transparent on-transparent door
Single row: door open upward 90 degree
Material: insulating, self-extinguishing fire material
Protection level: indirect contact proof 2 protection
Protection degree: IP65
