PVC Insulated non Sheathed cables copper Power cable BV cable
Inquire NowDescription

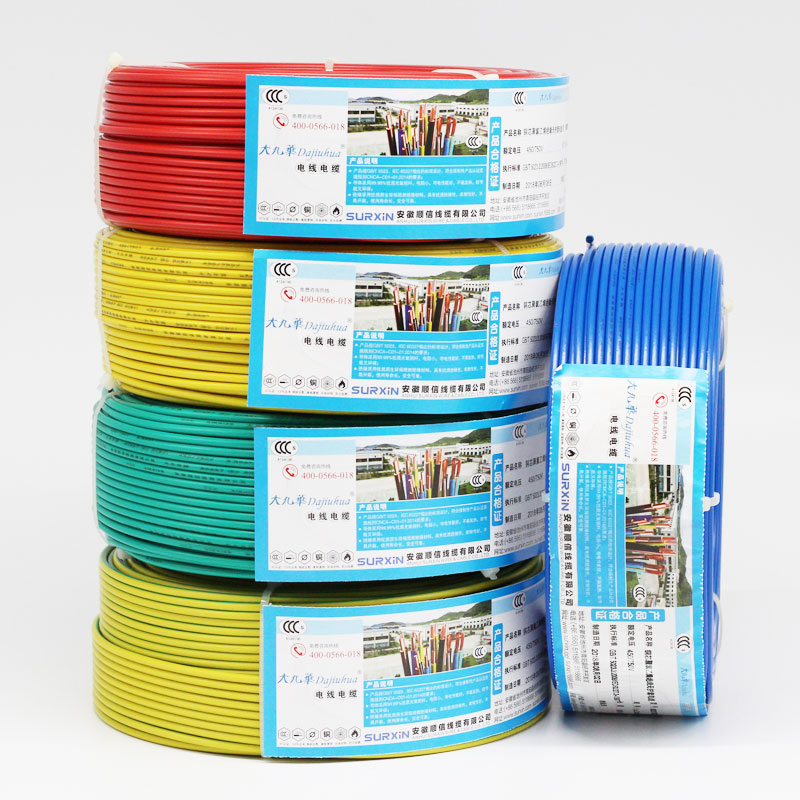

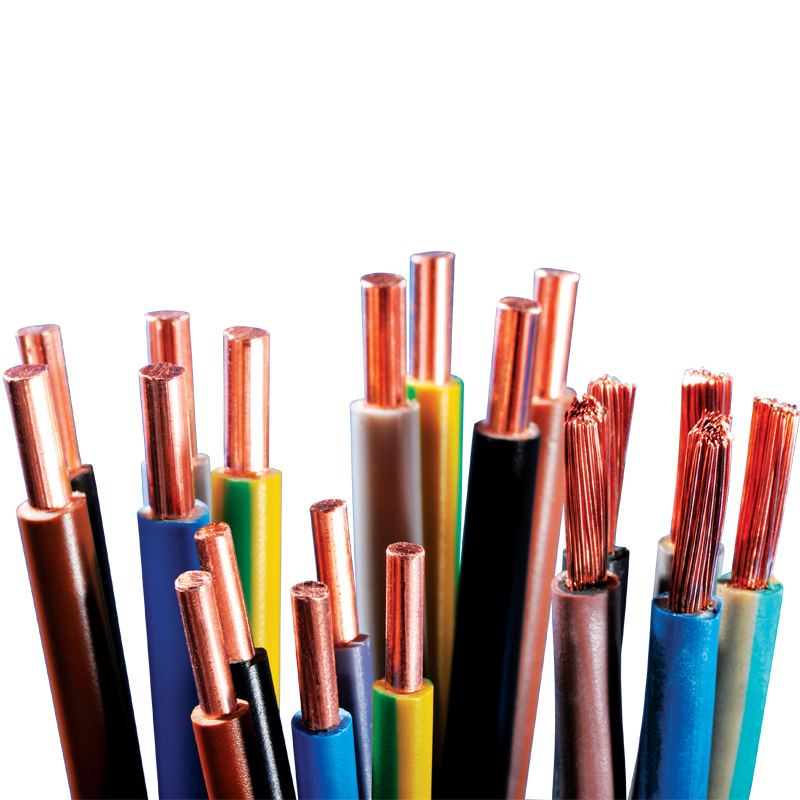

PVC Insulated Non-Sheathed Copper Power Cable (BV Cable) is designed for efficient electrical wiring in various applications. This high-performance cable features a conductor made from 99.95% oxygen-free copper, ensuring excellent conductivity and durability. Its insulation is crafted from environmentally friendly PVC, offering high insulation properties and resistance to environmental factors. With a temperature class rating of 70°C/90°C and a rated voltage of 300/500V or 450/750V, this cable meets rigorous industry standards (GB/T 5023.3-2008, JB/T 8734.2-2016). Available in multiple colors, including red, yellow, green, blue, black, and yellow/green, it can also be customized to suit specific needs. Each cable is conveniently packaged in hollow rolls, with lengths of either 100M or 200M, making it ideal for internal wiring in machinery and home decoration.
Specifications
| Type/Specification | Structure of Conductor No./Φmm |
Overall Diameter | Electrical Resistance at 20℃ Ω/km | Minimum Insulation Resistance at 70℃ MΩ/km | |
|---|---|---|---|---|---|
| BV1.5 | 1/1.38 | 2.8 | 12.1 | 0.011 | |
| BV2.5 | 1/1.78 | 3.4 | 3.9 | 0.010 | |
| BV4.0 | 1/2.24 | 3.9 | 4.4 | 0.0085 | |
| BV6.0 | 1/2.76 | 4.4 | 4.9 | 0.0070 | |
| BV10.0 | 7/1.35 | 5.8 | 6.8 | 0.0065 | |
| BV16.0 | 7/1.70 | 7.0 | 8.0 | 0.0050 | |
| BV25.0 | 7/2.14 | 8.8 | 9.8 | 0.0050 | |
| BV35.0 | 7/2.52 | 10.0 | 11.0 | 0.0050 | |
Additional Information
Applications: Ideal for internal wiring in machinery and home decoration.
Properties: High insulation, excellent properties, and bright colors enhance both functionality and aesthetics.
