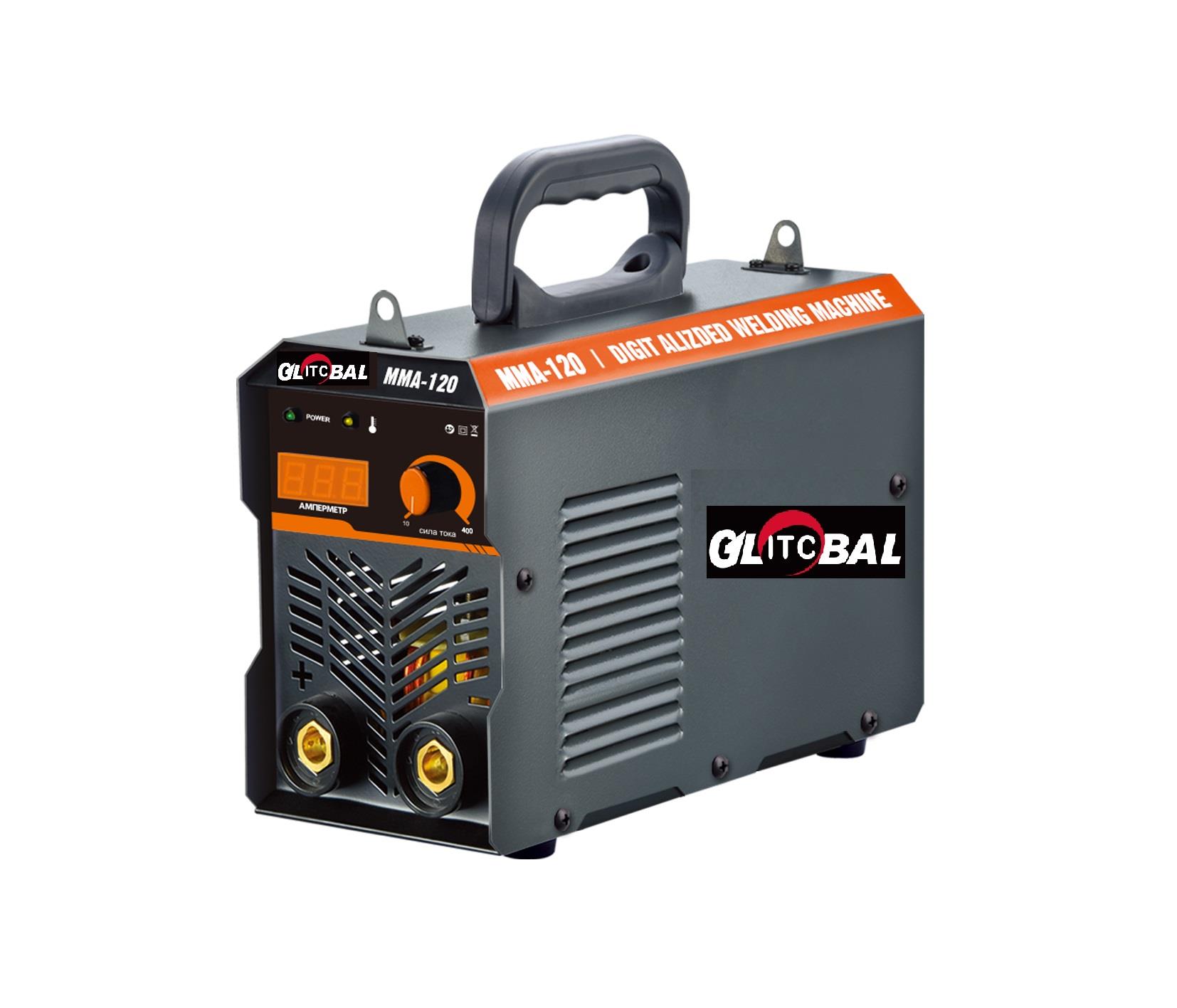

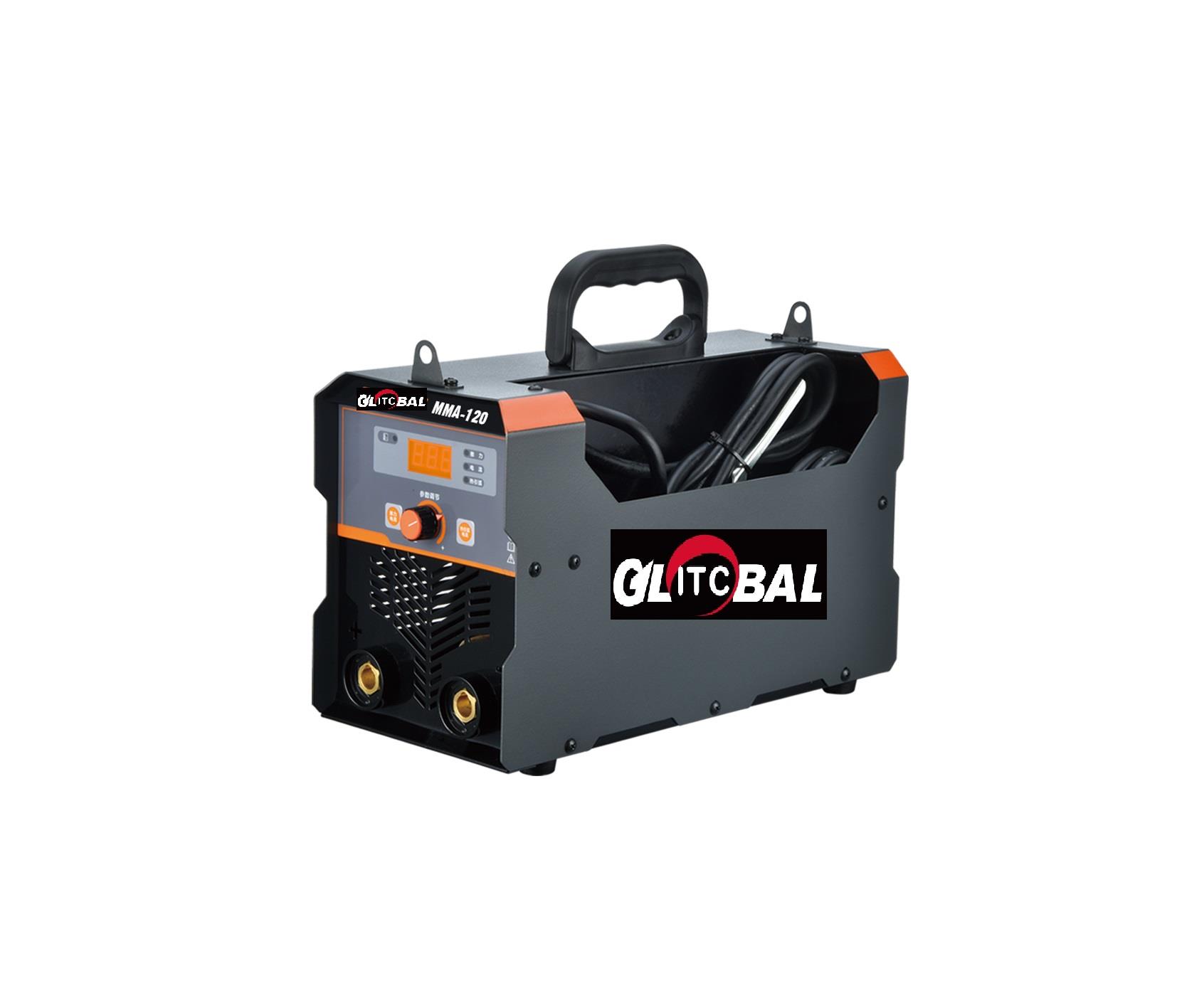

PWM-MMA120 IGBT Professional Electric Digital Inverter Welding Machine/Welder-Power Tools
Inquire NowDescription
Introducing the PWM-MMA120 IGBT Professional Electric Digital Inverter Welding Machine, a state-of-the-art tool designed for both professionals and DIY enthusiasts. This compact and lightweight welder is perfect for a variety of welding tasks, from jointing angle iron to pipes and flat iron. With an adjustable output current ranging from 20 to 120A, it meets diverse welding requirements with ease. The multifunction control panel, complete with an indicator light, ensures effortless operation, making it suitable even for novice users. Trust in the durability and efficiency of this welding machine, which heats up quickly while consuming minimal energy, promising a long service life.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 1PH 220V-230V; 110V-120V |
| Frequency | 50-60HZ |
| Rated Input Capacity | 3.5KW |
| Current Range | 20-120A |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65 +/- 5V |
| Rated Duty Cycle | 60% |
| Usable Electrode | 1.6-3.2mm |
| Protection Degree | F |
| Insulation Class | IP21S |
| Accessories |
|
Additional Information
Features of the PWM-MMA120 include:
- Built-in Hot Start
- Built-in Anti-stick
- Built-in Arc Force
- AUTO PROTECTION (over voltage, over heat, over current, and over load protection)
- Easy operation suitable for new users
- Wide voltage range: 170V-250V
