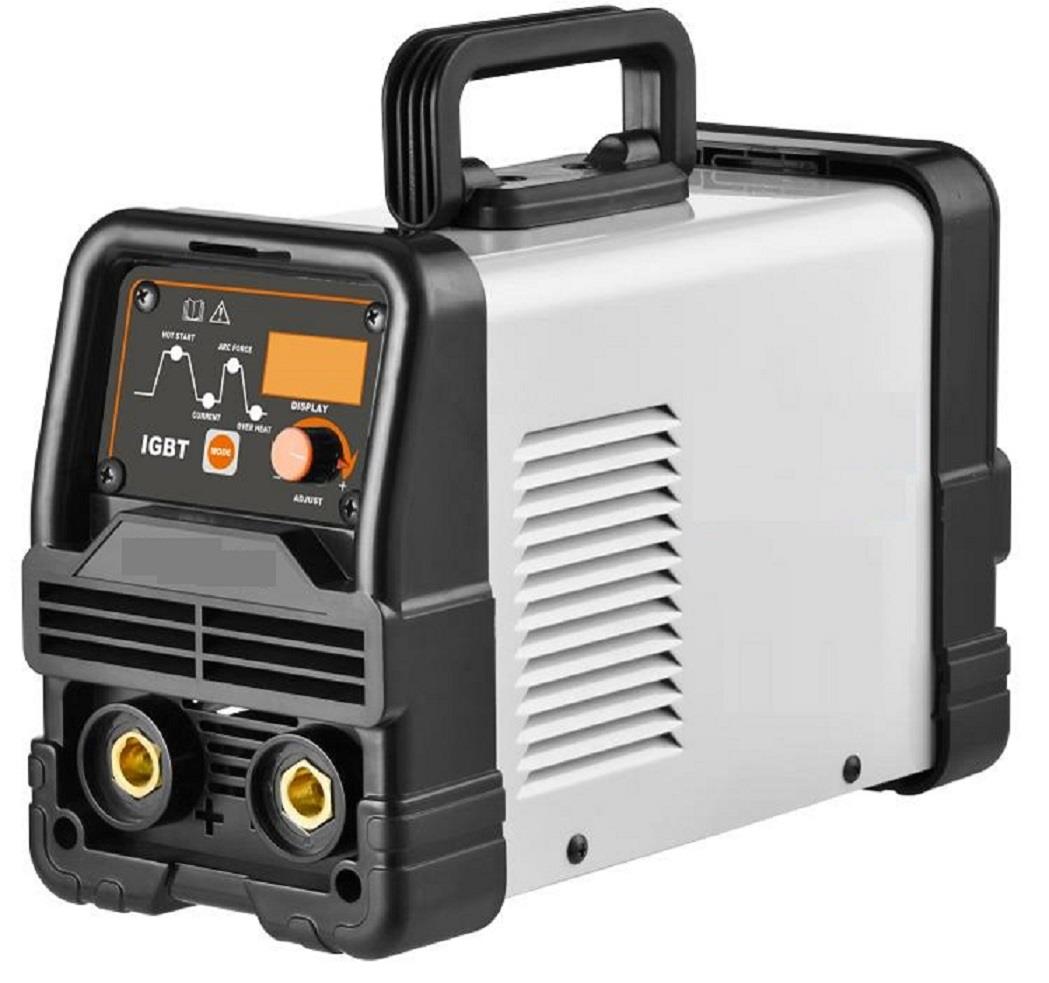

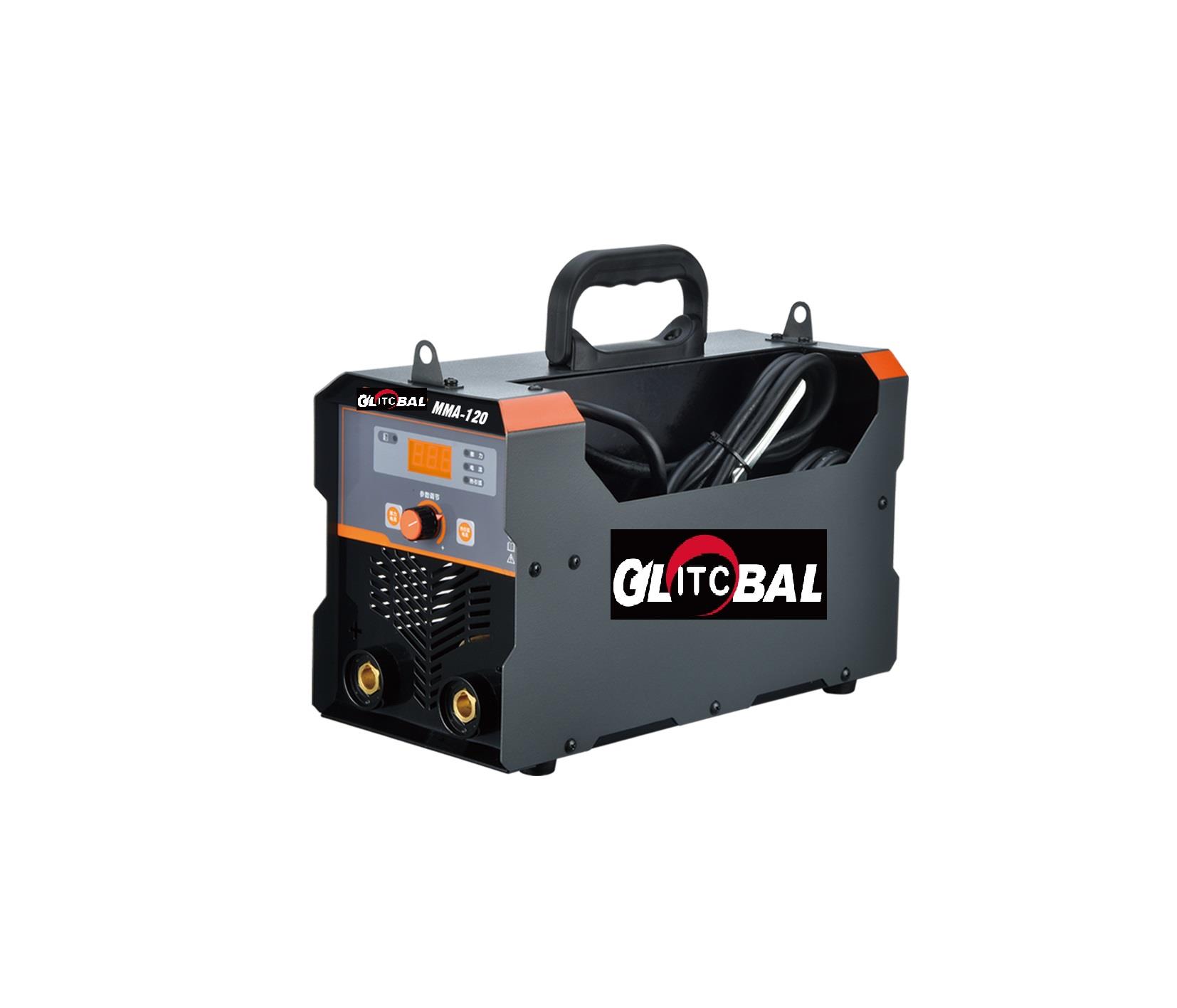

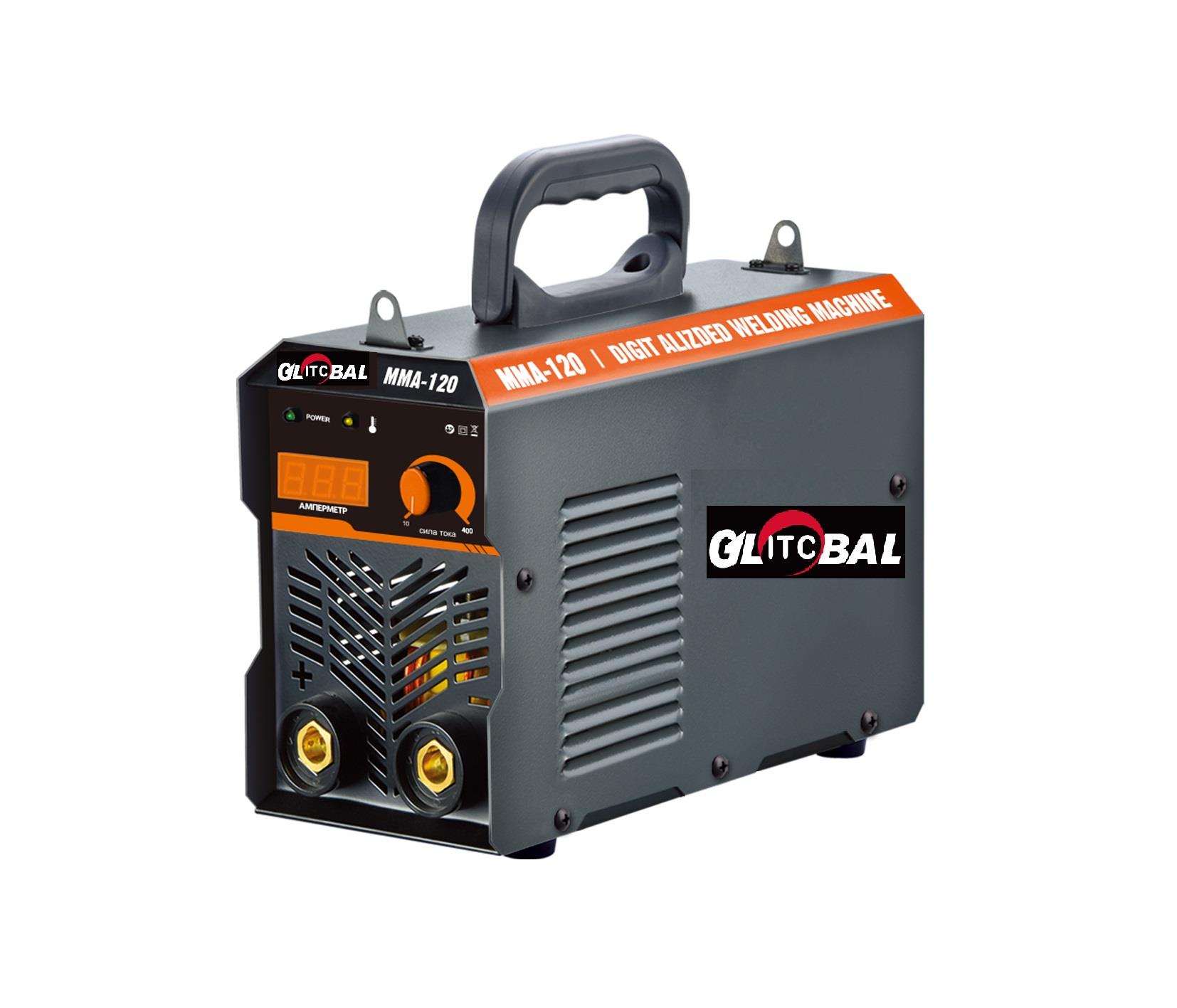

PWM-MMA120P IGBT Professional Electric Digital Inverter Welding Machine/Welder-Power Tools
Inquire NowDescription
The PWM-MMA120P IGBT Professional Electric Digital Inverter Welding Machine is a state-of-the-art welding tool designed for both professionals and DIY enthusiasts. This versatile welder is equipped with a multifunction control panel, making operation straightforward and efficient. With an output current adjustable between 20 and 120A, it caters to a variety of welding requirements. The machine’s built-in accessories storage case adds convenience, ensuring that all necessary tools are within reach. Certified with CE, EMC, ROHS, and UL standards, this welder guarantees safety and reliability in every use.
Designed with user-friendliness in mind, the PWM-MMA120 features an indicator light that simplifies monitoring during operation. It is ideal for welding electrodes ranging from 1.6mm to 3.2mm in diameter, making it suitable for tasks like joint welding of angle iron, pipes, and flat iron. Efficient and lightweight, this compact machine is easy to transport, and its built-in safety features, including forced air cooling and thermal overload protection, ensure a safe working environment.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 1PH 220V-230V; 110V-120V |
| Frequency | 50-60HZ |
| Rated Input Capacity | 3.5KW |
| Current Range | 20-120A |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65 +/- 5V |
| Rated Duty Cycle | 60% |
| Usable Electrode | 1.6-3.2mm |
| Protection Degree | F |
| Insulation Class | IP21S |
| Accessories |
|
Additional Information
Our PWM-MMA120 welding machine not only heats up quickly and operates efficiently, but it also consumes minimal energy, ensuring a long service life. It is especially suitable for home use or essential welding tasks, with features designed for safety, ease of use, and reliability. Please ensure a 13-amp fused plug is used before operation.
