PWM-MMA180 Super Professional IGBT Electric Digital Inverter Welding Machine/Welder-Tools
Inquire NowDescription

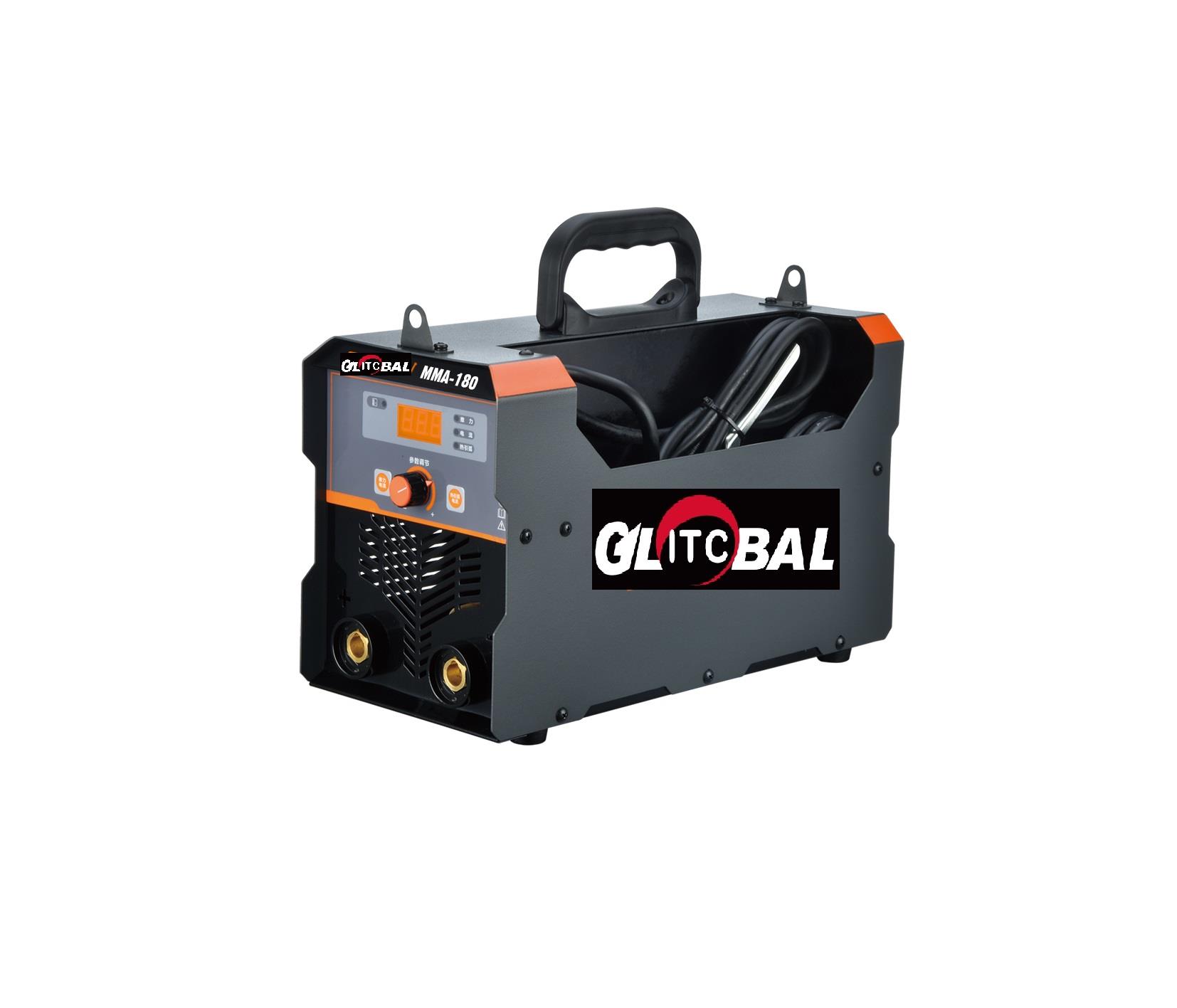

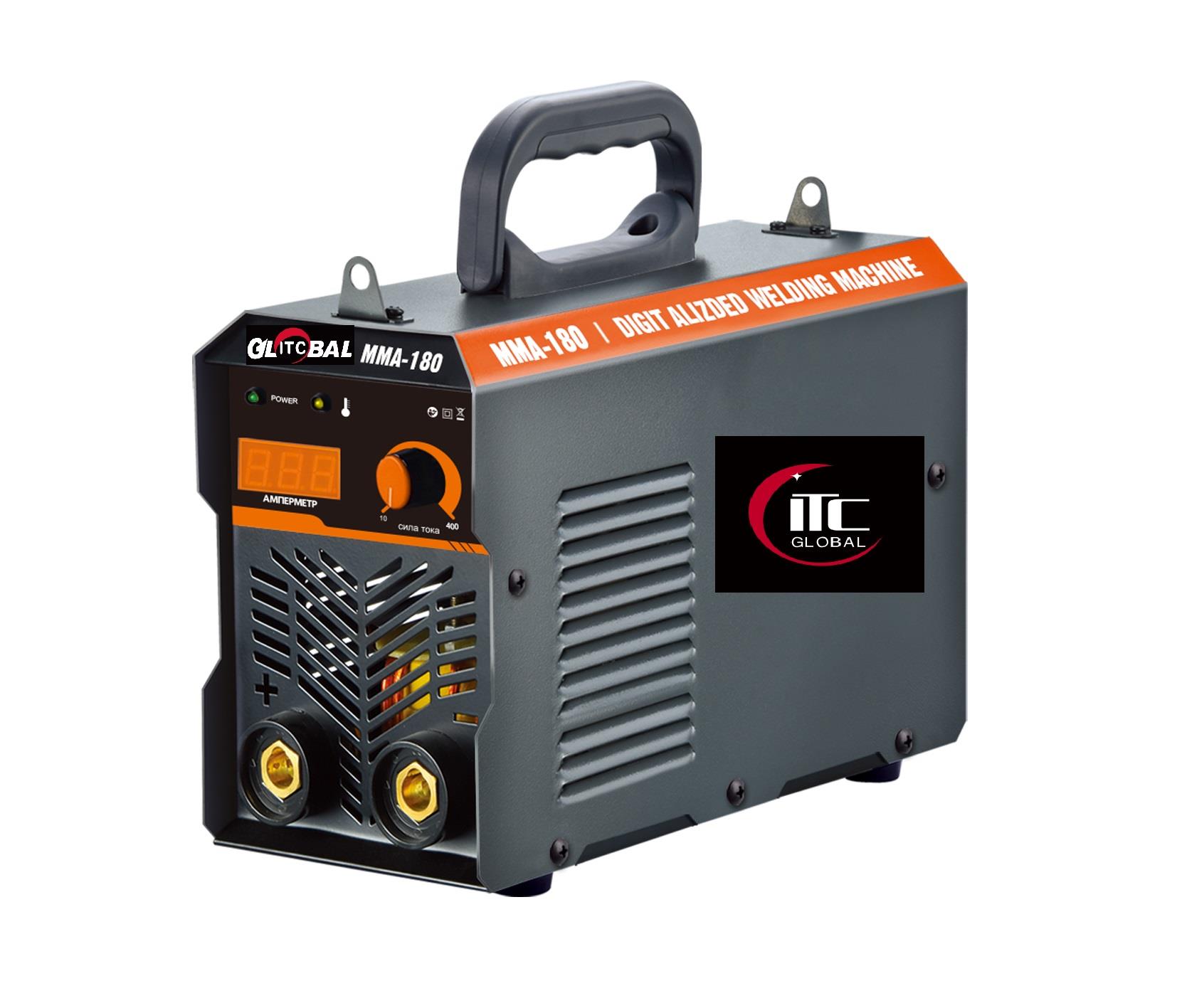

Introducing the PWM-MMA180 Super Professional IGBT Electric Digital Inverter Welding Machine, a cutting-edge solution for all your welding needs. This high-performance welding machine is designed for both professional and home use, providing efficient and energy-saving operation. With its compact and portable design, the PWM-MMA180 is perfect for on-the-go projects and can easily handle various welding tasks.
Equipped with a multifunction control panel, the machine allows for easy operation, enabling users to adjust the output current between 20 and 180 amps simply by turning a knob. The PWM-MMA180 is suitable for welding electrodes ranging from 1.6mm to 5.0mm in diameter, making it a versatile tool for jointing iron, pipes, and flat surfaces.
This inverter welding machine is built for safety and reliability, featuring a forced air cooling fan, thermal overload protection, and anti-stick technology. The included ready-to-use accessories ensure you have everything needed to get started right away. With certifications such as CE, EMC, ROHS, and UL, you can trust the quality and performance of the PWM-MMA180.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 1PH 220V-230V; 110V-120V |
| Frequency | 50-60HZ |
| Rated Input Power Capacity | 5.7KW |
| Current Range | 20-180A |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65 +/- 5V |
| Rated Duty Cycle | 60% |
| Usable Electrode | 1.6-5.0mm |
| Protection Degree | F |
| Insulation Class | IP21S |
| Accessories | 1) Welding holder (300A) + 1.8m x 20mm² copper-clad aluminum + quick plug (35-50) 2) Earth clamp (300A) + 1.2m x 20mm² copper-clad aluminum + quick plug (35-50) 3) Mask 4) Steel brush |
Additional Information
- Easy To Use: Adjust the welding amp from 20 to 180 easily with the knob.
- Compact and Lightweight: Ideal for on-the-go welding tasks.
- Safety Features: Includes forced air cooling, thermal overload protection, and anti-stick.
- Plug Requirement: The welder does not come with a plug; ensure a 13amp fused plug is available for use.
