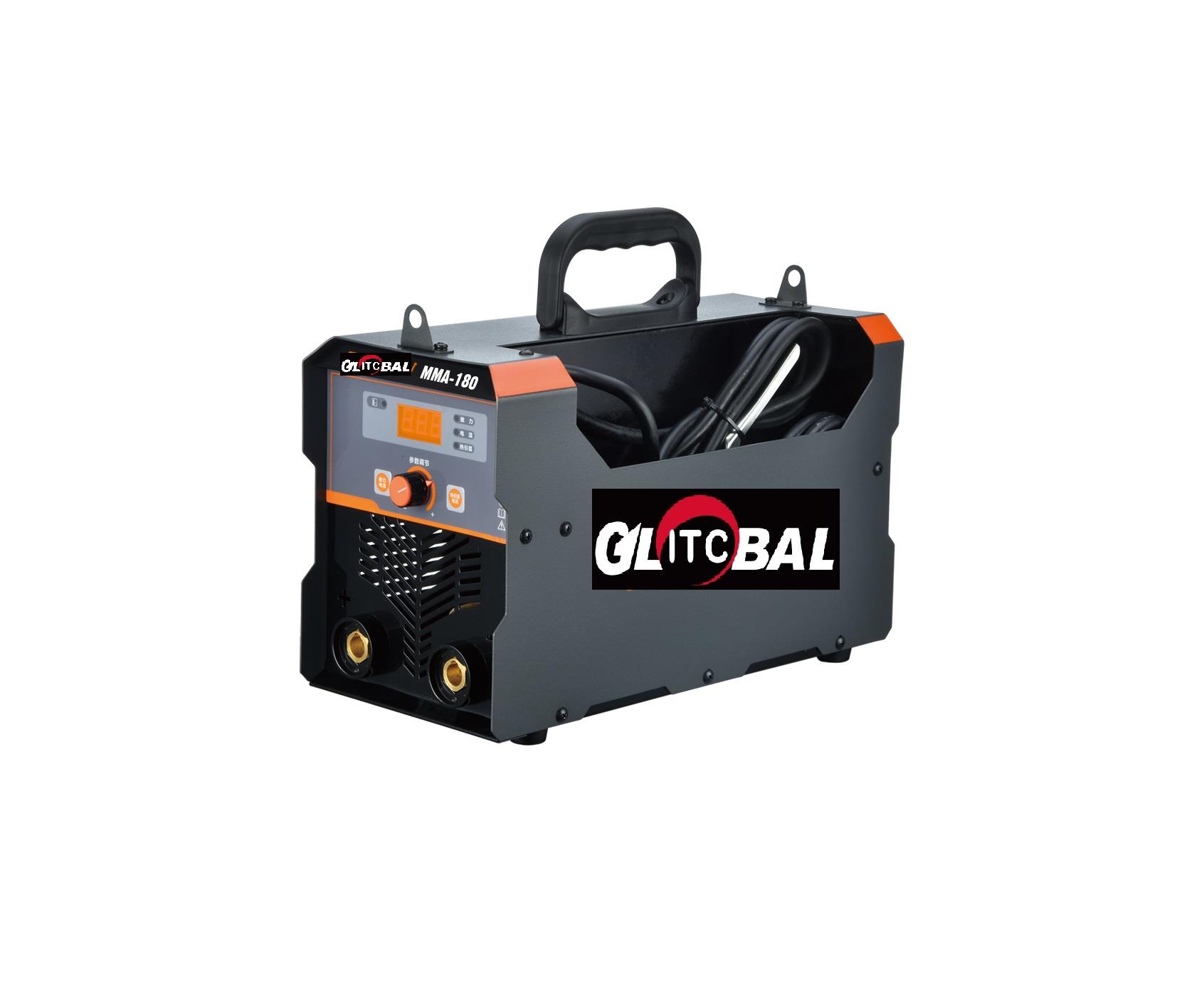

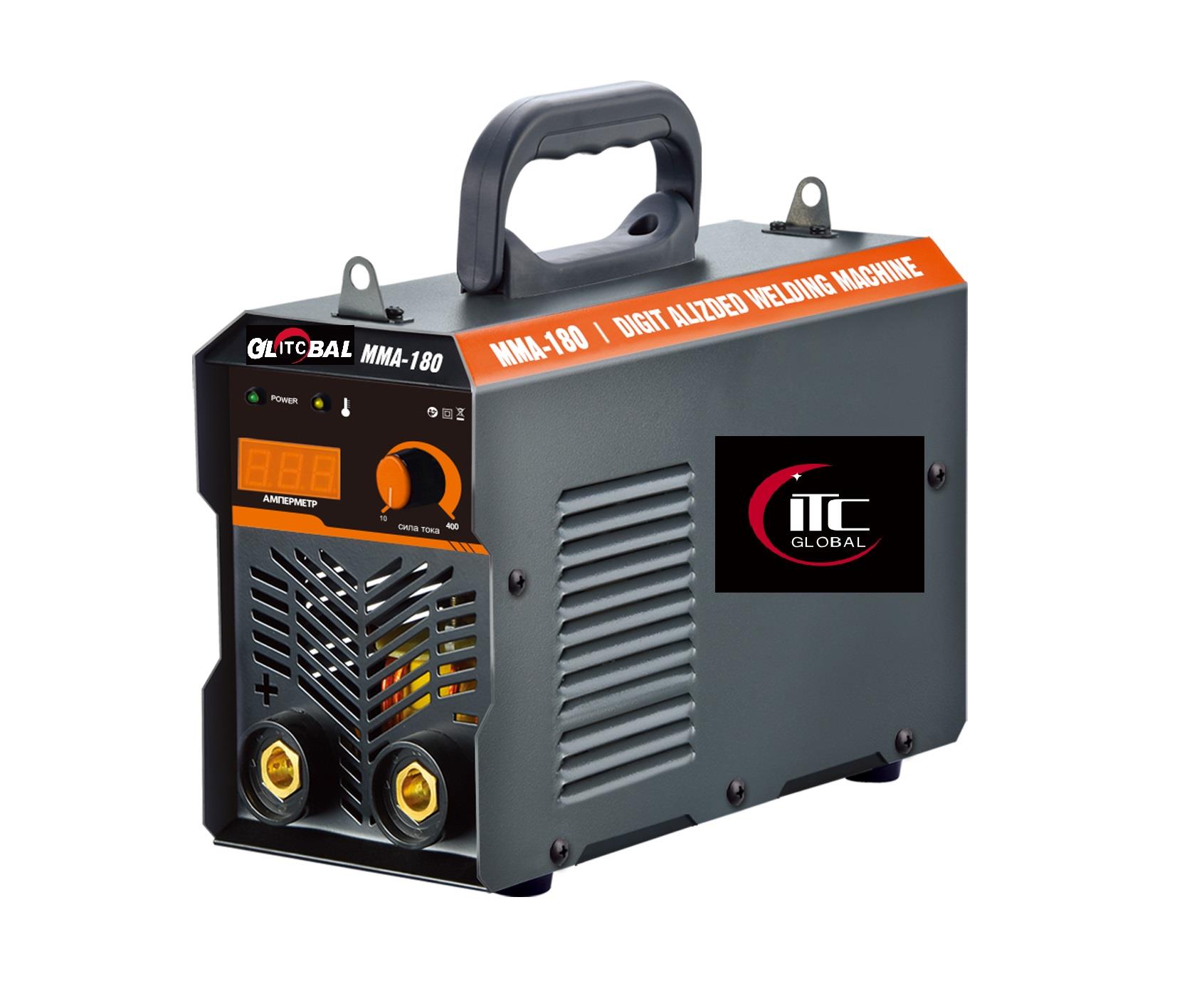

PWM-MMA180P Super Professional IGBT Electric Digital Inverter Welding Machine/Welder-Tools
Inquire NowDescription
The PWM-MMA180P Super Professional IGBT Electric Digital Inverter Welding Machine is a cutting-edge tool designed for both professional and home use. This versatile machine features a multifunction control panel that simplifies operation, allowing you to easily set the output current between 20 and 160A to meet your specific welding requirements. Built with the latest IGBT technology, this welding machine combines efficiency, portability, and ease of use, making it ideal for a variety of welding tasks including angle iron, pipes, and flat iron.
With certifications such as CE, EMC, ROHS, and UL, the PWM-MMA180P stands out for its safety and reliability. The built-in hot start, anti-stick, and arc force functions enhance performance, while the forced air cooling fan and thermal overload protection ensure safe operation. Its compact design makes it easy to transport, making it the perfect solution for both industrial and DIY projects.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 1PH 220V-230V; 110V-120V |
| Frequency | 50-60HZ |
| Rated Input Power Capacity | 5.7KW |
| Current Range | 20-180A |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65+/-5V |
| Rated Duty Cycle | 60% |
| Usable Electrode | 1.6-5.0mm |
| Protection Degree | F |
| Insulation Class | IP21S |
| Accessories |
|
Additional Information
- Efficient and Lightweight: The machine is compact and easy to transport, making it ideal for various work environments.
- Safe and Reliable: It features built-in protections for over voltage, over hot, over current, and overload.
- Easy Operation: Suitable for new users, just connect the power input and output and begin welding.
- Wide Voltage Range: Operates efficiently at 170V-250V.
