QDP145-S
Inquire NowDescription

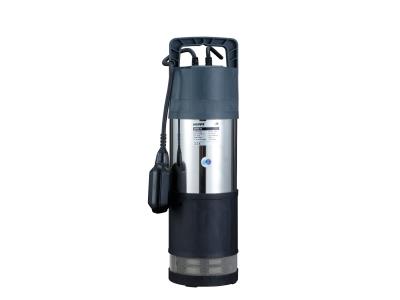

The QDP145-S is a robust two-pole induction motor designed for superior performance in various applications. Operating at a speed of 2850 revolutions per minute, this motor is equipped with a B insulation class and boasts an IP68 protection rating, ensuring reliable operation in diverse environments. It features continuous service capability (S1) and includes a thermal protector for added safety. This single-phase motor operates on 220V with a frequency of 50Hz, and can also be customized for 60Hz upon request.
Ideal for clean water applications that are free from abrasive particles, the QDP145-S excels in domestic settings, gardening, irrigation, and tank emptying tasks. Its user-friendly design and high reliability make it a preferred choice for both professional and personal use.
Specifications
| Feature | Details |
|---|---|
| Motor Type | Two-pole induction motor |
| Speed | 2850 r.p.m |
| Insulation Class | B |
| Protection Rating | IP68 |
| Service Type | Continuous service S1 |
| Thermal Protector | Included |
| Power Supply | Single-phase 220V/50Hz (60Hz on request) |
| Application | Clean water usage (no abrasive particles) |
Additional Information
- Suitable for domestic applications
- Perfect for gardening and irrigation tasks
- Efficient for emptying tanks
